Prod Model: |
KET-RMD |
Color And Size: |
Customized |
Usage: |
Heating |
Operation: |
Electric |
Material: |
Steel |
Voltage: |
220V/Two Phase 380V |
Current: |
10-38A |
Frequency: |
50/60Hz |
Power: |
2.2-15kw |
Weight: |
16.6-275kg |
Warranty: |
1 Year |
Product Description

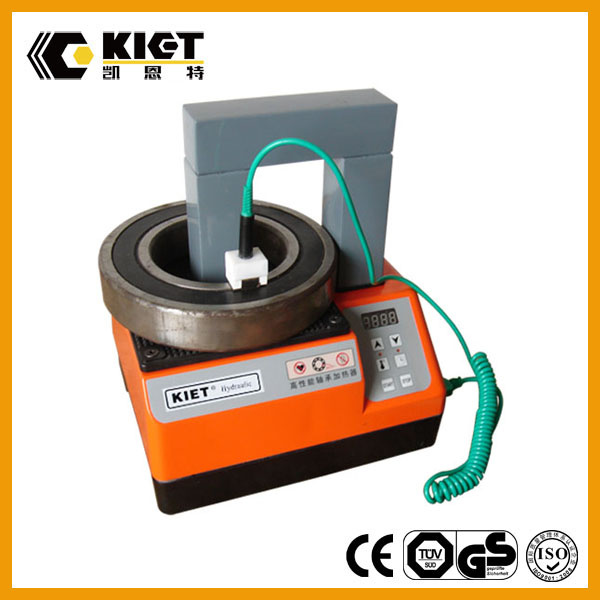

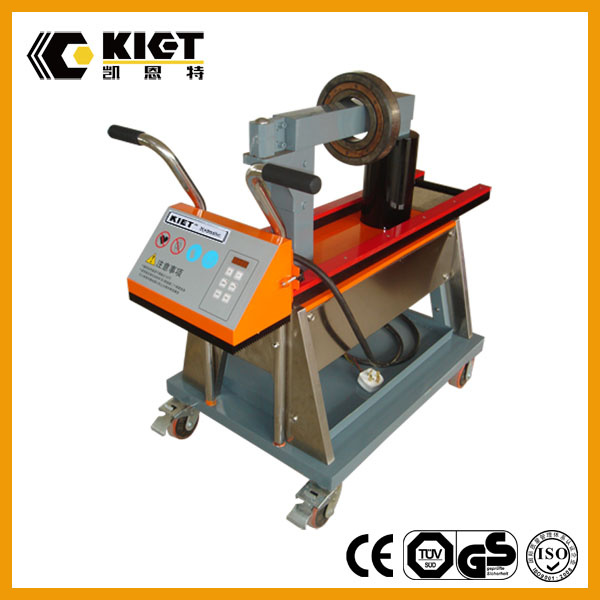

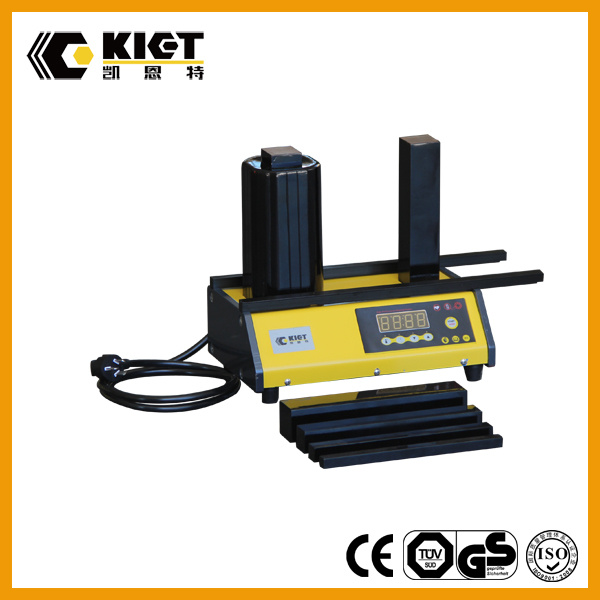

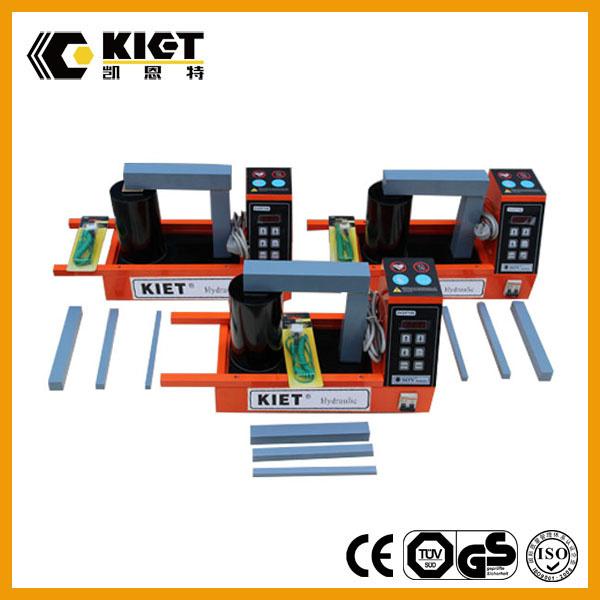

2017 Kiet Electromagnetic Inducting Heating Bearing Induction Heaters
Adopt electromagnetic induction heating mode, so that the work-piece is heated directly, heating more evenly, has constant temperature and timing two heating methods, with the characteristics of automatic heat preservation, manual / automatic demagnetization, over-heat protection and so on. safe, convenient and quick operation.
Product Parameter
Product Name | Model No. | Frequency | Power | Voltage | Current | Min. I. D(vertical) | Max. O. D | Max. Width | Heating Temp. | Dimension | Min. I.D(Horizontal)(mm) | Net Weight |
(Hz) | (KW) | (V) | (A) | (mm) | (mm) | (mm) | (ºC) | (mm) | (kg) |
Induction Bearing Heater | KET-RMD-22 | 50/60 | 2.2 | 220 | 10 | 15 | 220 | 95 | Max. 240 | 310*210*260 | 60 | 16 |
KET-RMD-40 | 50/60 | 4 | 220 | 18 | 20 | 480 | 175 | Max. 240 | 480*270*340 | 120 | 28 |
KET-RMD-100 | 50/60 | 10 | 380 | 25 | 45 | 720 | 195 | Max. 240 | 620*360*520 | 140 | 85 |
KET-RMD-120 | 50/60 | 12 | 380 | 25 | 45 | 1020 | 295 | 40-250 | 920*450*930 | 110 | 180 |
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our prodcut ranges are as follows:
• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)
Our Services
KIET provides one year guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded within 24 hours.
FAQ
Q1: How to contact sales?
A1: Please call: +86-523-81569666 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.
Contact Imformation
Contact Person: Miss. Handy
Tel: +86-523-81569666
Mob.: +86 18005263911
Web: http://www.kaientehydraulic.com/EN/
Product Name | Model No. | Frequency (Hz) | Power (KW) | Voltage (V) | Current (A) | Min. I. D (mm) | Max. O. D (mm) | Max. Width (mm) | Heating Temp. (ºC) | Dimension (mm) | Net Weight (kg) |
|
Induction Bearing Heater | RMD-220 | 50 | 2.5 | 220 | 10 | 15 | 220 | 95 | 40-250 | 260*240*260 | 15 |
RMD-480 | 50 | 3.6 | 220/380 | 16 | 20 | 480 | 175 | 40-250 | 510*300*290 | 35 |
RMD-720 | 50 | 10 | 380 | 25 | 45 | 720 | 200 | 40-250 | 675*520*580 | 84 |
RMD-1000 | 50 | 12 | 380 | 32 | 60 | 1020 | 380 | 40-250 | 1600*850*1250 | 250 |

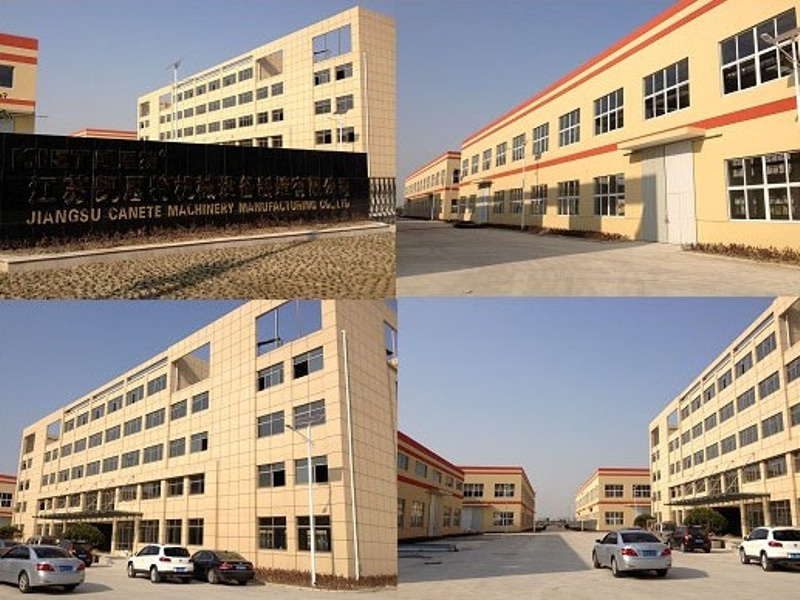

Welcome to visit our factory !
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
