| Prod Model: |
730T/EPU250.42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wheel Color: |
Green, Customized |
| Wheel Size: |
250X42mm |
| Top Plate: |
148X110mm |
| Caster Total High: |
304mm |
| Hole Size: |
13mm |
| Bolt Hole Spacing: |
120-103X77-58mm |
| Loada Capacity: |
1200kgs |
| Type: |
Rotating Wheel |
| Wheel Material: |
PU |
| Brake: |
With Brake |
| Bearing Type: |
Ball Bearing |
| Surface Treatment: |
Painted |
| Brand: |
Mingze |
| Maximum Load: |
1200kgs |
| Specification: |
10inch |
| Thickness: |
Top Plate:10mm |
Product Description

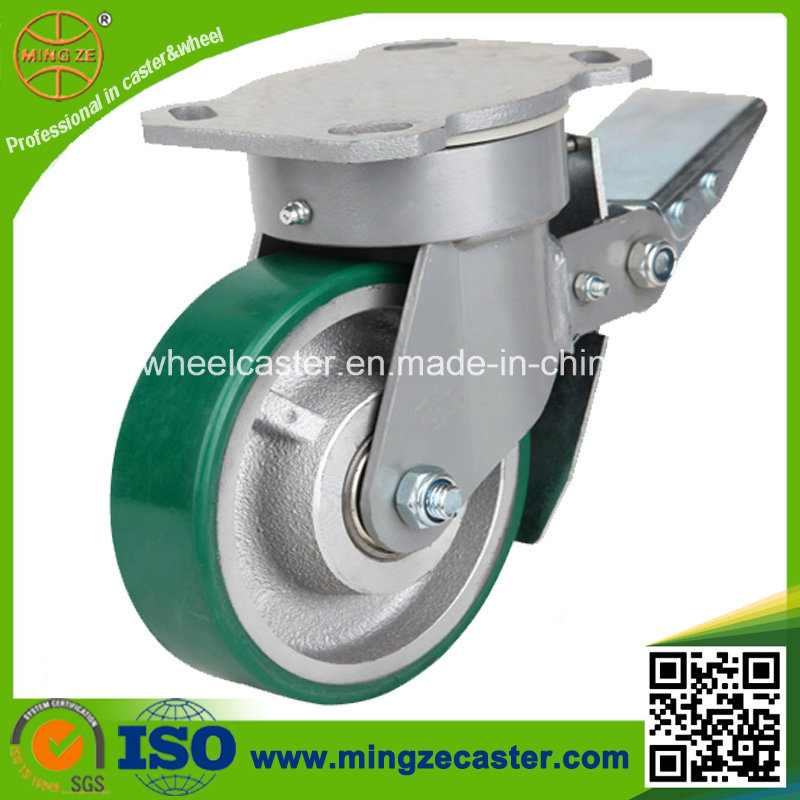

250mm cast iron pu Wheel industrial wheel Caster
Speacification:
1.Item No. : 730S/EPU250.42
2. Wheel material: polyurethane on cast iron core wheel
3. Wheel size:250x42mm
4. Hardness: 93A
5.Bearing: ball bearing
6. Load capacity: 1200kg
7. Bracket: pressed steel, gray painted,double ballrace swivel head
8.Strong point:
Stronger impact resistance,more flexible moving,bigger load capacity.
***NOTE: The wheel core can be customize paint color, such silver, black, gray,bule etc.
Optional type and size with detail parameters as below:
Swivel Caster
| Item No | Wheel dia
&width(mm) | Caster
total high
(mm) | Caster swivel
radius
(mm) | Top plate
(mm) |
Bolt hole
spacing
(mm) | Bolt hole
(mm) | Yoke
thickness
(mm) | Load capacity
(kg) |
| 730S/EPU125.42 | 125x42 | 178 | 45 | 148x110 | 120-103x77-58 | 13 | 25 | 600 |
| 730S/EPU150.42 | 150x42 | 203 | 49 | 148x110 | 120-103x77-58 | 13 | 25 | 800 |
| 730S/EPU200.42 | 200x42 | 253 | 54 | 148x110 | 120-103x77-58 | 13 | 25 | 1000 |
| 730S/EPU250.42 | 250x42 | 304 | 70 | 148x110 | 120-103x77-58 | 13 | 25 | 1200 |
Rigid Caster
| Item No | Wheel dia
&width(mm) | Caster
total high
(mm) | Top plate
(mm) | Bolt hole
spacing
(mm) | Bolt hole
(mm) | Yoke
thickness
(mm) | Load capacity
(kg) |
| 730R/EPU125.42 | 125x42 | 178 | 148X110 | 102-103x77-58 | 13 | 25 | 600 |
| 730R/EPU150.42 | 150x42 | 203 | 148X110 | 102-103x77-58 | 13 | 25 | 800 |
| 730R/EPU200.42 | 200x42 | 253 | 148X110 | 102-103x77-58 | 13 | 25 | 1000 |
| 730R/EPU250.42 | 250x42 | 304 | 148X110 | 102-103x77-58 | 13 | 25 | 1200 |
Double Brake Caster
| Item no | Wheel dia
&width(mm) | Caster total
high (mm) | Caster swivel
radius
(mm) | Top plate
(mm) | Bolt hole
spacing(mm0 | Bolt hole(mm) | Yoke
thickness
(mm) | Load
capacity
(kg) |
| 730T/EPU125.42 | 125x42 | 178 | 45 | 148x110 | 102-103x77-58 | 13 | 25 | 600 |
| 730T/EPU150.42 | 150x42 | 203 | 49 | 148x110 | 102-103x77-58 | 13 | 25 | 800 |
| 730T/EPU200.42 | 200x42 | 253 | 54 | 148x110 | 102-103x77-58 | 13 | 25 | 1000 |
| 730T/EPU250.42 | 250x42 | 304 | 70 | 148x110 | 102-103x77-58 | 13 | 25 | 1200 |
1)the top plate and the ball race way
2)double ball race way structure has a stronger impact resistance,more flexible moving and bigger load capacty;
3)for rigid frame:we've a cross reinforcing rib on the plate,allows bigger load capcaity;
4)our ball raceway undegoes heat treatment,which has much more stable mechanical proper
