| Price: | US $ 4.73-4.87/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 510CA |
|---|---|
| Temperature: | -30c to 80c |
| Load Capacity Range: | 300kg to 500kg |
| Thickness Of Top Plate: | 6mm |
| Top Pale Size: | 114*100mm |
| Top Plate Thickness: | 6mm |
| Top Plate Hole Distance: | 85*72mm |
| Bracket Material: | Zinc Plate Metal |
| Type: | Rotating Wheel |
| Brake: | With Brake |
| Bearing Type: | Ball Bearing |
| Surface Treatment: | Zinc Plated |
| Wheel Material: | Iron |
| Brand: | Mingze |
| Maximum Load: | 500kg |
| Specification: | 4inch to 8inch |
| Diameter: | 100mm to 200mm |
| Thickness: | 50mm |
Speacification:
Wheel material: cast iron
Wheel diameter : 4inch/5inch/6inch/8inch tread width: 2inch
Load capacity:300kgs-700kgs
Bracket: Made of pressed steel, Zinc plated, Double ball raceway swivel head
Service in our factory
1. samples can be supplied before mass production.
2. trial order can be allowed.
3.OEM service can be supplied.
4. profecssional quality control team to check the goods before delivery.
Packaging & Payment & Delivery
1. Payment: T/T30% deposit, 70% T/T after receiving copy of BL.
2. Packing:Packed in cartons to iron pallet or packed in wooden cases directly
3. Delivery: 20-25 days after confirming
Caster details:
Swivel Caster | ||||||||
| ITEM NO. | Dia.x Tread | Total height | Offset | Top plate | Hole Spacing | Hole size | Fork Distance | Load Capacity |
| 510S/CA100.50 | 100*50 | 143 | 35 | 114*100 | 85*72 | 11 | 63 | 300 |
| 510S/CA125.50 | 150*50 | 165 | 39 | 114*100 | 85*72 | 11 | 63 | 350 |
| 510S/CA150.50 | 200*50 | 190 | 45 | 114*100 | 85*72 | 11 | 63 | 450 |
| 510S/CA200.50 | 250*50 | 240 | 56 | 114*100 | 85*72 | 11 | 63 | 500 |
| Rigid Caster | ||||||||
| ITEM NO. | Dia.x Tread | Total height | Offset | Top plate | Hole Spacing | Hole size | Fork Distance | Load Capacity |
| 510R/CA100.50 | 100*50 | 143 | 35 | 114*110 | 85*72 | 11 | 63 | 300 |
| 510R/CA125.50 | 125*50 | 165 | 39 | 114*110 | 85*72 | 11 | 63 | 350 |
| 510R/CA150.50 | 150*50 | 190 | 45 | 114*110 | 85*72 | 11 | 63 | 450 |
| 510R/CA200.50 | 200*50 | 240 | 56 | 114*110 | 85*72 | 11 | 63 | 500 |
| Total Brake Caster | ||||||||
| ITEM NO. | Dia.x Tread | Total height | Offset | Top plate | Hole Spacing | Hole size | Fork Distance | Load Capacity |
| 510T/CA100.50 | 100*50 | 143 | 35 | 114*110 | 85*72 | 11 | 63 | 300 |
| 510T/CA125.50 | 125*50 | 165 | 39 | 114*110 | 85*72 | 11 | 63 | 350 |
| 510T/CA150.50 | 150*50 | 190 | 45 | 114*110 | 85*72 | 11 | 63 | 450 |
| 510T/CA200.50 | 200*50 | 240 | 56 | 114*110 | 85*72 | 11 | 63 | 500 |

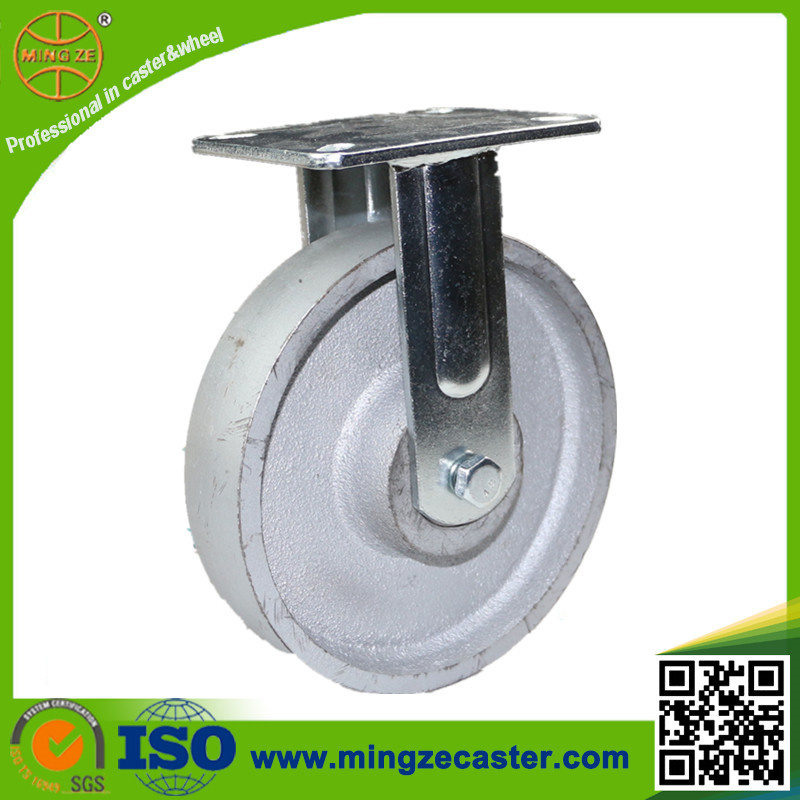

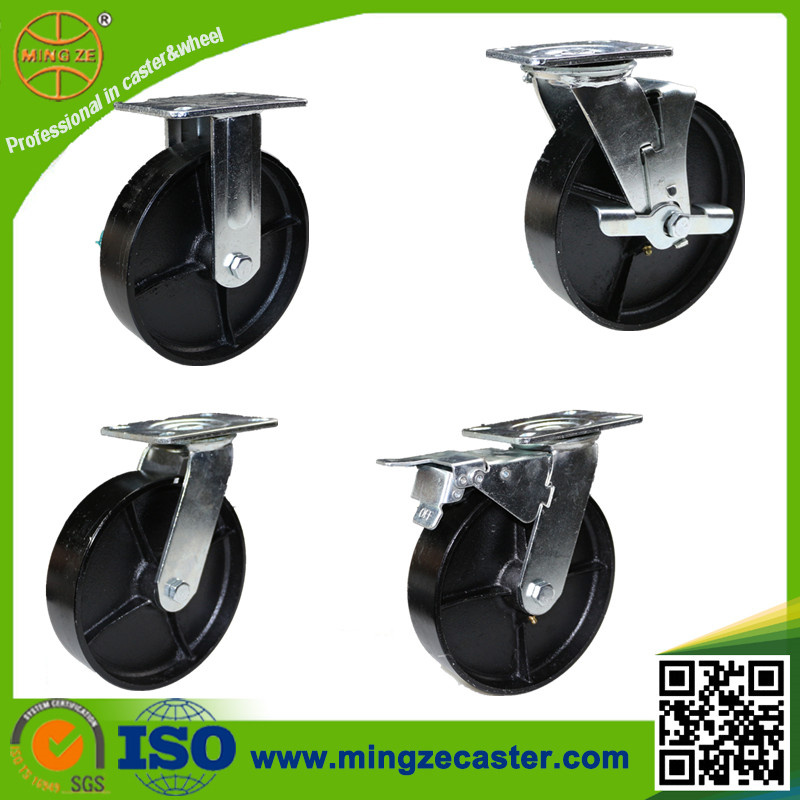

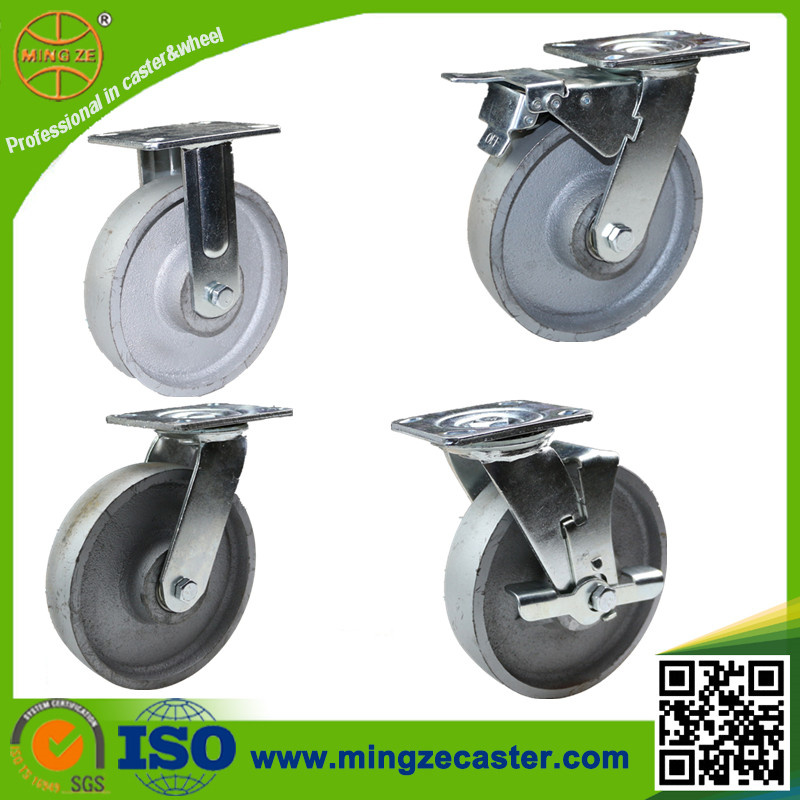

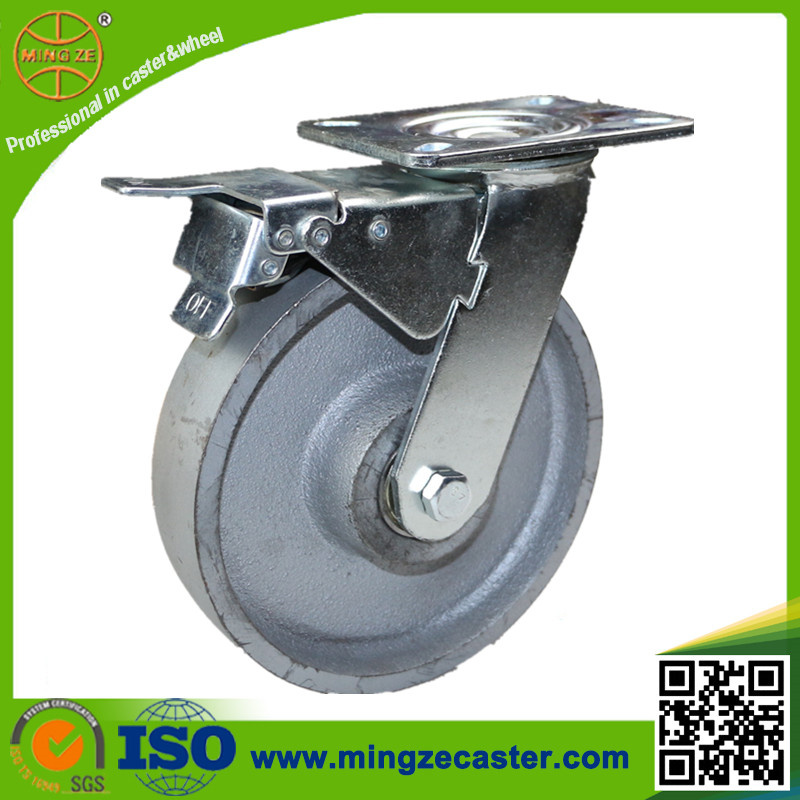

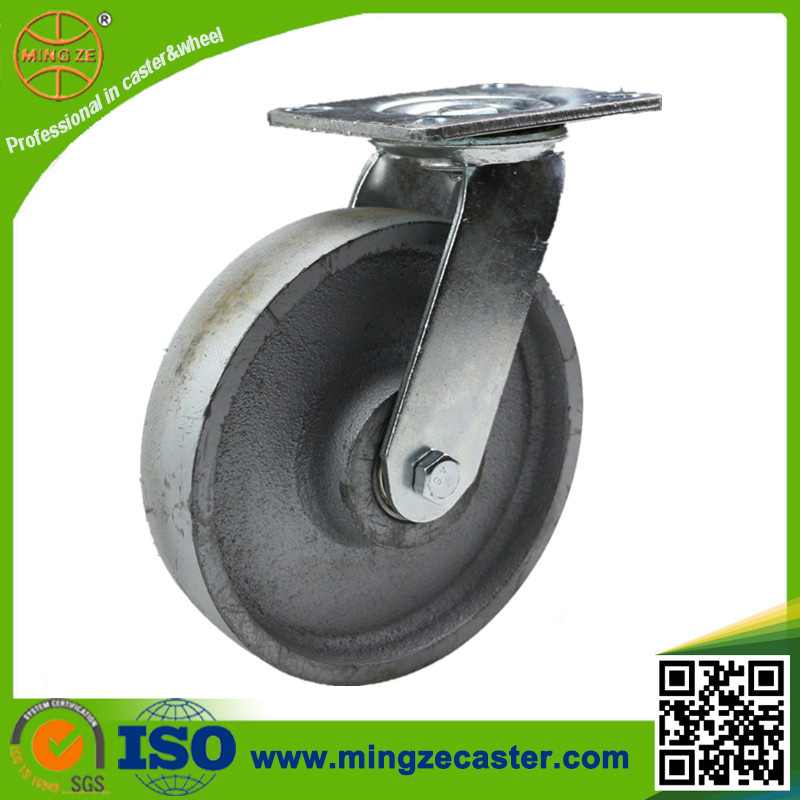

products Pictures
RECOMMEND CASTER
Company Information
Guangzhou Mingze Metal Products Co., Ltd. is established in 2006, Mingze is a professional manufacturer specialized in the R&D, manufacture of medium to extra heavy duty wheels and castors. More than 1000 varieties of castors are sold both in domestic and foreign market.
Mingze has passed the latest cerfication of ISO9001:2008. Product quality is the key to business success, quality control such as IQC, IPQC, OQC is operated in factory strictly.
Full series testers are used widely from sample making to formal production such as drum endurance tester, impact tester, hardness tester, tensile tester and abrasion tester.
Advanced production equipments are utilized in large scale like automatic pu casting line, successive stamping, automatic assembly line. It is endeavored to improve production efficiency and shorten production process term.
Experienced R&D work team has strong capacity of designing latest, reliable function and style of products as customer's special requirement.
FAQ
1. Factory or trading company?
Factory in Guangzhou China.
2. OEM service or not?
Yes.
3.Small order is acceptable or not?
Yes.
4. Can we do our size ?
Yes, different size can be made.
5.How about your packing?
In carton to iron pallet or in wooden case.
