| Price: | US $ 7.15-7.36/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 810T/EUA125.50 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: | 350kgs |
| Color: | Yellow |
| Other Size: | 6inch and 8inch |
| Top Plate Size: | 135*110mm |
| Top Plate Thickness: | 4mm |
| Wheel Core Material: | Aluminium |
| PU Hardness: | 93 Shore a |
| Temperature: | -20c to +30c |
| Top Plate Hole Distance: | 105*80mm |
| Bracket Material: | Zinc Plated Metal |
| Type: | Rotating Wheel |
| Wheel Material: | PU |
| Brake: | Without Brake |
| Bearing Type: | Ball Bearing |
| Surface Treatment: | Zinc Plated |
| Brand: | Mingze |
| Maximum Load: | 500kgs |
| Thickness: | 50mm |

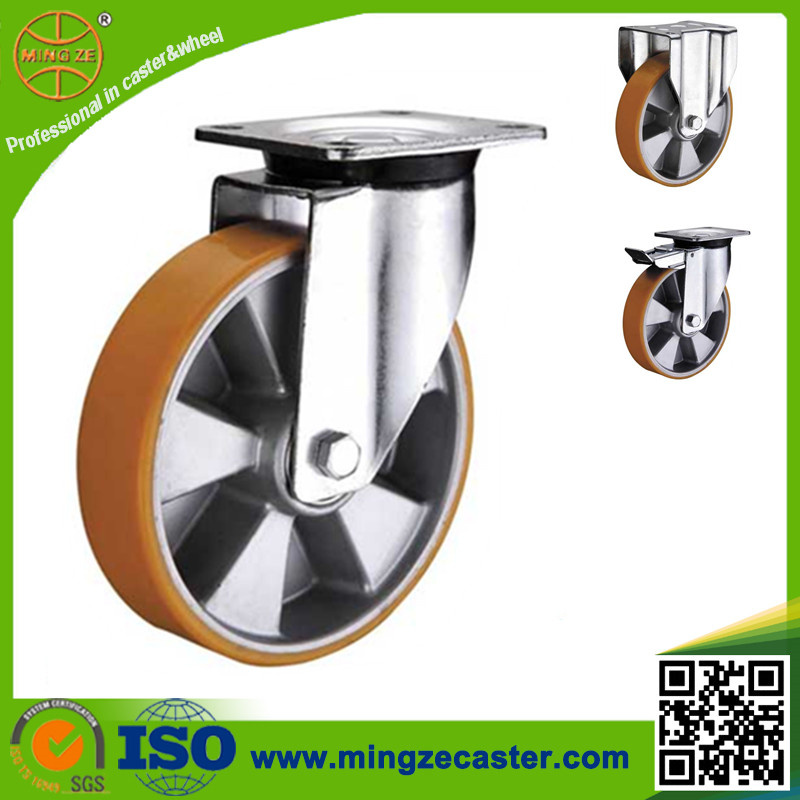

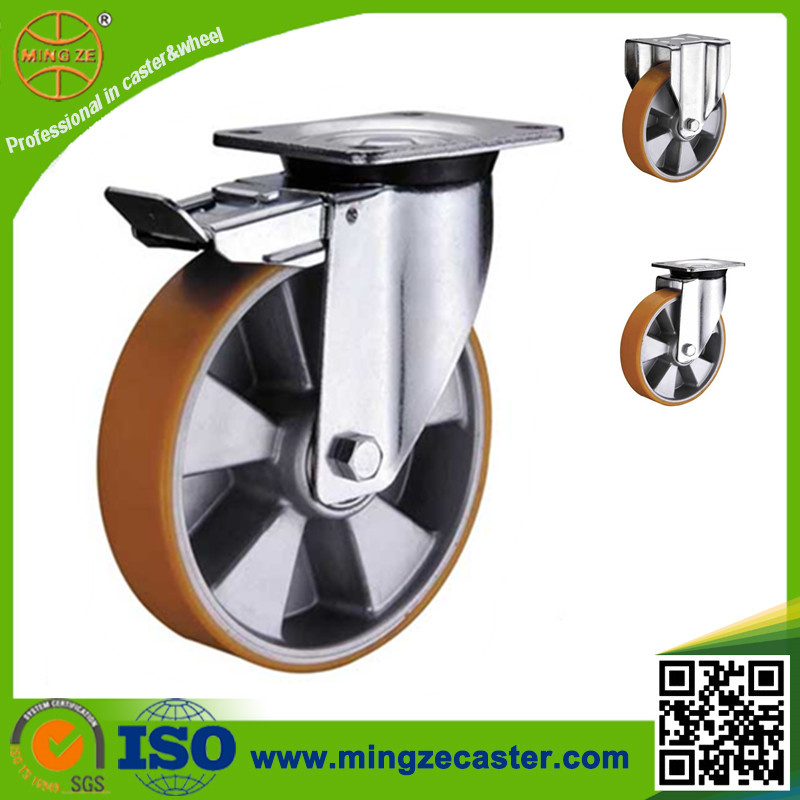

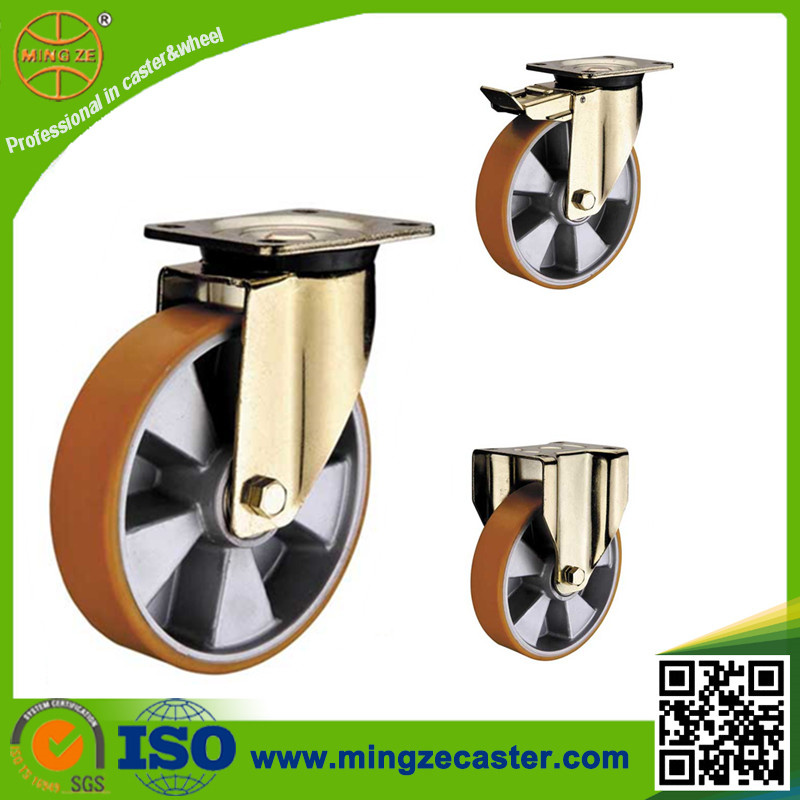

Polyurethane Heavy Duty Caster Wheels
Speacification:
1.Item No. : 810S/EUA#
2. Wheel material: polyurethane on aluminium core
3. Wheel diameter : 5inch/6inch/8inch tread width: 2inch
4. Hardness: 93A
6. Load capacity:350kgs-500kgs
7. Bracket: made of pressed steel, zinc plated
| Item no. | wheel size (mm) | total height (mm) | top plate size (mm) | hole size (mm) | fork distance (mm) | load capacity(kgs) |
| 810S/EUA125.50 | 125*50 | 156 | 135*110*4 | 16*11 | 62*3 | 350 |
| 810S/EUA150.50 | 150*50 | 196 | 135*110*4 | 16*11 | 62*3 | 400 |
| 810S/EUA200.50 | 200*50 | 240 | 135*110*4 | 16*11 | 62*3 | 500 |
1. Payment: T/T30% deposit, 70% T/T after receiving copy of BL.
2. Packing:Packed in cartons to iron pallet or packed in wooden cases directly
3. 20-25 days after confirming the order.
Service in our factory
1. samples can be supplied before mass production.
2. trial order can be allowed.
3.OEM service can be supplied.
4. profecssional quality control team to check the goods before delivery.
Guangzhou Mingze Caster
Guangzhou Mingze Metal Products Co., Ltd. is established in 2006, Mingze is a professional manufacturer specialized in the R&D, manufacture of medium to extra heavy duty wheels and castors. More than 1000 varieties of castors are sold both in domestic and foreign market.
Mingze has passed the latest cerfication of ISO9001:2008. Product quality is the key to business success, quality control such as IQC, IPQC, OQC is operated in factory strictly.
Full series testers are used widely from sample making to formal production such as drum endurance tester, impact tester, hardness tester, tensile tester and abrasion tester.
Advanced production equipments are utilized in large scale like automatic pu casting line, successive stamping, automatic assembly line. It is endeavored to improve production efficiency and shorten production process term.
Experienced R&D work team has strong capacity of designing latest, reliable function and style of products as customer's special requirement.
1. Factory or trading company?
Factory in Guangzhou China.
2. OEM service or not?
Yes.
3.Small order is acceptable or not?
Yes.
4. Can we do our size ?
Yes, different size can be made.
5.How about your packing?
In carton to iron pallet or in wooden case.
