| Prod Model: |
Q150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Clamp on Current Transformer |
| Features: |
Low Phase Shift for Power Measurement |
| Measurement Range: |
1mA to 3000A AC |
| Nominal Input Current: |
3000V |
| Output Signal: |
500mA, 1A, 5A AC at Nominal Input Current |
| Accuracy: |
0.2%, 0.5 % |
| Max. Jaw Opening: |
150mm |
| Temperature Range: |
-20~+55 Deg |
| Output Model: |
Lead Output |
| Dielectric Strength: |
3kv 50Hz/60Hz at 1 Minute |
| Material: |
Permalloy |
| Application: |
Power, Electronic, Instrument |
Product Description

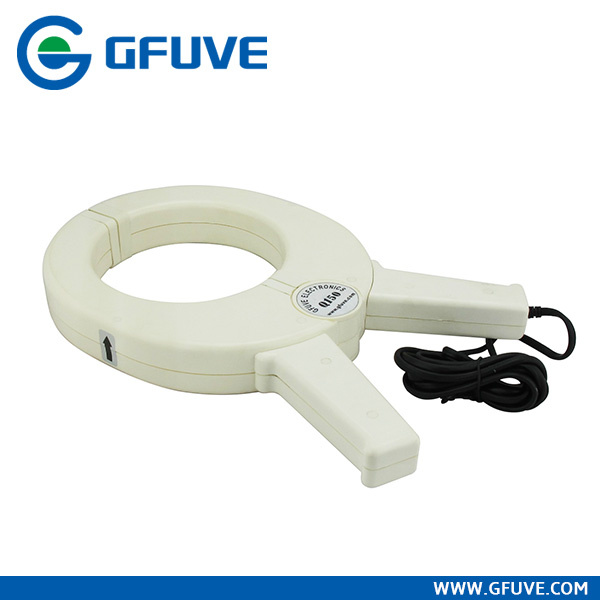

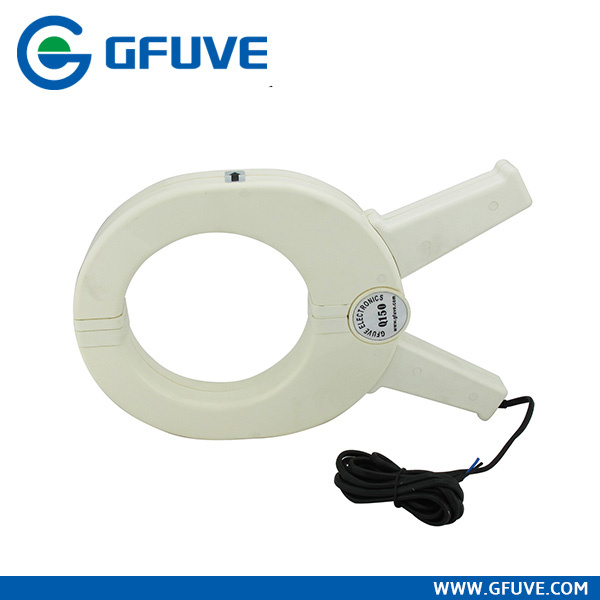

Q150 high stability 3000/5A 150mm Jaw Clamp on Current Transformer with permalloy core
The model Q150 150mm Jaw Clamp on Current Transformer can be used in large current situation and cooperate to cable fault tester and cable identification device, used for cable test work.
Applications
Power quality measuring
Large industrial loads
HVAC
Measuring around cable bundles
Power load monitoring
Waveform analysis
Features
Measurement range of 1mA to3000A AC
Small, compact size; Holding wire diameter 150mm
Improved ergonomic design and easy operation
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
Output model: Lead output(2.5m)
Technical data
| Ratio | 1000: 1 or 2000:1 , customized |
| Nominal input current | 3000 A |
| Max. Cont. Input current | 3600A |
| Accuracy | 0.2%,0.5% |
| Over voltage category | CAT III 600 V |
| Output signal | 500mA,1A,5A AC at nominal input current |
| Frequency range | 40 Hz....2000 Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20 °C...+55 °C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Max. jaw opening | 150 mm |
| Standard | EN 61010-1 |

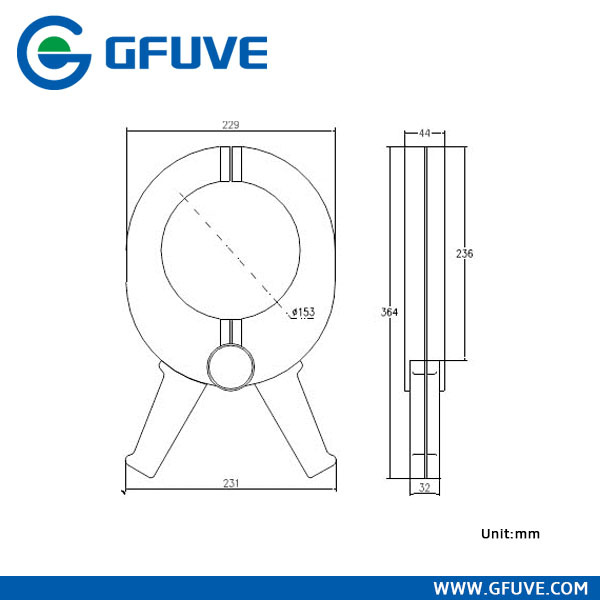

| Dimensions | 229mm x 364mm x 44mm |
| Weight | 1700 g |
