| Price: | US $ 2/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Connection: | Back /Bottom Connection |
|---|---|
| Model Number: | Ytp-60ml |
| Pressure Range: | 0-0.4~4 / 0-10~25 / 0-0.1~0.25 |
| Material: | Stainless Steel Case/Black Crabon Case |
| Connection Thread: | M20X1.5 / I Flange / Unfold Flange / Angel Flange |
| Size: | 60mm/100mm/150mm |
| Measuring Range: | Medium-pressure Gauge |
| Accuracy: | 1.5 |
| Display: | Pointer |
| Application: | Civil |
| Structure: | Spring Pressure Gauge |
| Connection Type: | Radial Direction |
| Function: | Electric Signal-controlled |
| Indicating Pressure Reference: | General Pressure Gauge |
1. Product Photos
| Model | Pressure rang (Mpa) | Accuracy (%) |
YTP-100 YTP-150 | 0~(0.1/0.16/0.25/0.4/0.6/1/1.6/2.5/4/6/10/16/25) | 1.6 |
Sealing liquid:
| Sealing Liquid | Temperature Range | Specific Weight g/cm3 | volume coefficient1/ºC | Use |
| Heavy viscous | -10~200ºC | 1.07 | 0.95×10-3 | high temperature |
| low viscous silicone | -30~100ºC | 0.94 | 1.08×10-3 | general use |
| glycerin solution | -5~100ºC | 1.27 | 0.61×10-30.61×10-3 | food use |
3. Other Product Information
The corrosion resistance of the diaphragm pressure gauge can be guaranteed
by selecting suitable materials for contacting with the contact part of the
measuring medium, the flange and sealing gasket.
Diaphragm material: 0Crl7Nil2Mo2(316);Monel alloy (Cu30Ni70);Ha alloy (H276C);
Tantalum (Ta) and fluoroplastics (F4).
Flange material: stainless steel 0Crl7Nil2M02(316);Stainless steel lined with fluorine
plastic (316+F4).
Sealing gasket material: nitrile rubber;Fluorine rubber;Silicone rubber and fluorine
plastics.
Ordering instructions
1. Please specify the model, name, measuring range, measuring media, working
temperature, connection form and size, and accuracy grade.
2. If you have any special request, please specify in the order.
3. The diaphragm pressure gauge shall not disassemble or replace the configured
instrument so as to avoid the impact performance of the filling liquid.
4. before order, according to the characteristics of the measured medium, such
as corrosion resistance, easy to solidification, easy to crystallization, corrosive,
according to the characteristics of measured medium choose stainless steel
pressure gauge or with different corrosion resistance material isolation diaphragm
of diaphragm pressure gauges, high temperature environment to use high temperature melt diaphragm pressure gauge, the general medium such as (water, on copper or copper alloy no corrosive gas) such as usable general pressure gauge.
The working steps are as follows:
1. The replacement pressure gauge must be qualified by the metrological department with lead seal, and the pressure gauge in the validity period of the calibration or the new form with the factory certificate.
2. Before changing the table, the three-way cock must be rotated to the position of
the flushing pressure gauge to flush the dirt in the pipe.
3. Rotate the three-way cock to the position of holding water in the pipe, and use the wrench to remove the old watch and replace it with a new pressure gauge.
4. Rotate the three-way cock to the normal working position, and put the new watch into operation.

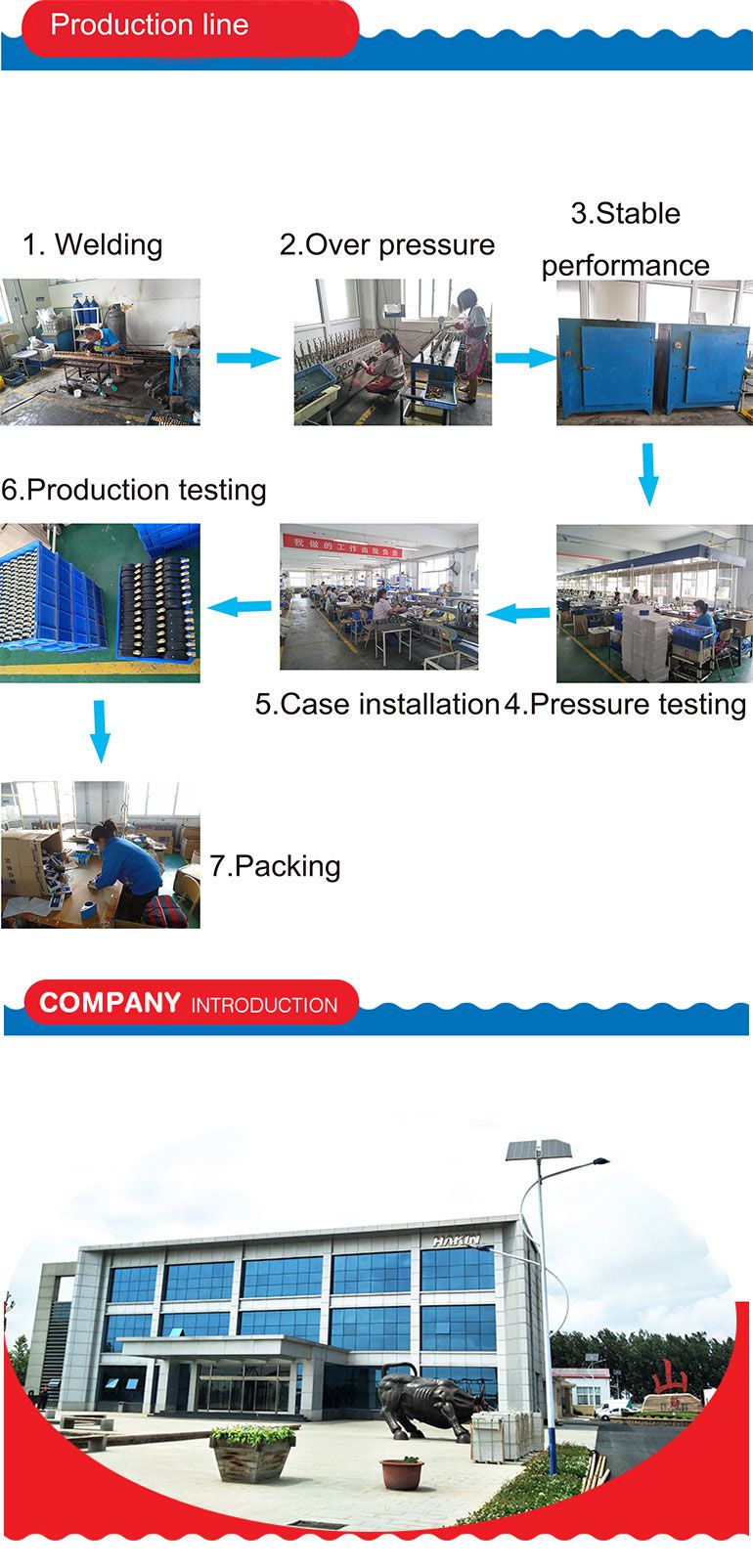

4. Company Profile
A manufacturer specialized for devising varies of pressure gauges, thermometers and other hardware appliances.
One of China's main bases of operations for exporting pressure gauges and thermometers.
Developing all stainless steel pressure gauges, shock-proof pressure gauges, etc.
Supplying different kinds of products with high quality and favorable price.
Sticking to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" and " Zero defect, zero complaints".
Enjoying a high reputation as regular supplier to European, Middle East, South America, Africa and Southest of Asia.
Won the certificate of EN3, EN671, EN1869 and CE approval.
We are sincere in looking for partners to develop and cooperate together in new business opportunities.
5. Our Advantages
5.1 Quality Control:
* 100% pre-inspection before shipment with "PASSED" ticket;
* ISO 9001, CE, KS, GS, UL, FCC, ACS certificates passed;
5.2 Delivery:
* Sample order within 7 days;
* Bulk order 15 days upon order confirmation;
5.3 After-Sale Service:
* Twelve months quality guarantee;
* Provide technical solutions within 24 hours;
5.4 Abundant Export Experience:
*Nearly ten years export experience;
*One-stop sales service for purchase and delivery;
5.5 Others:
* Professional recommendation & personalized specification;
* OEM/ODM order welcomed;
* No MOQ, 1 piece for test acceptable.
6. Why Choose Us
6.1 Specialized in pressure gauges for 30 more years;
6.2 Strict quality controlling and inspecting system;
6.3 Reasonable and competitive price;
6.4 Fast delivery and time service;
6.5 Small quantity order is welcome.
7. FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: Insight L/C, TT, Western Union, Money Gram, paypal, etc.
Q3. What is your trade terms?
A:FOB, CFR, CIF.
