| Prod Model: |
60, 100, 150mm |
| A National Geographic Number: |
Available and Accessible |
| Measuring Range: |
Low-pressure Gauge |
| Accuracy: |
1.6 |
| Display: |
Pointer |
| Application: |
Power, Petroleum,Chemical ,Light |
| Structure: |
Spring Pressure Gauge |
| Connection Type: |
Radial Direction |
| Function: |
Electric Signal-controlled |
| Indicating Pressure Reference: |
Vibration-Proof |
Product Description

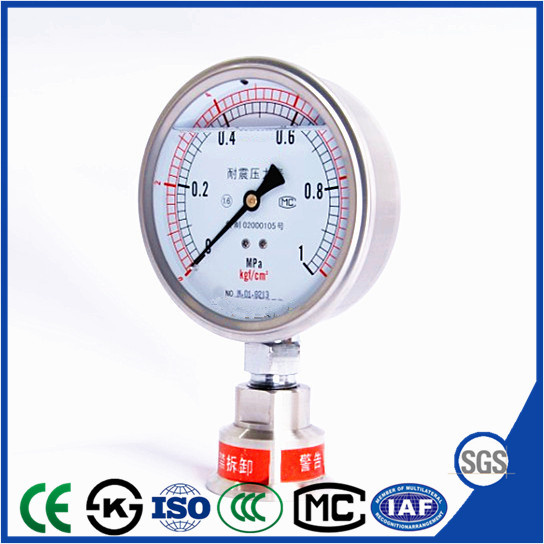

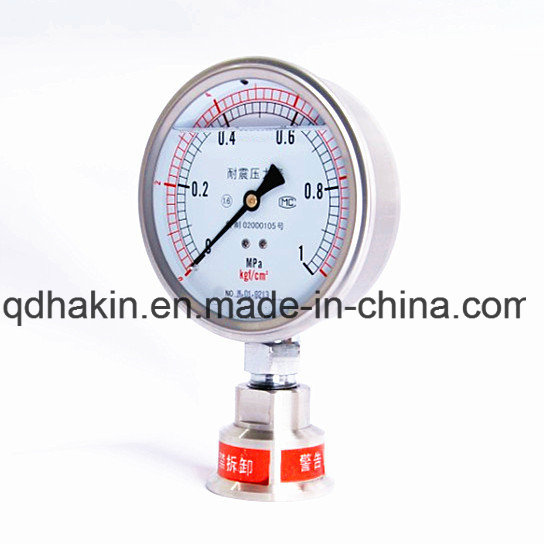

High Quality and best-selling stainless steel vibration-proof pressure gauge
Application
Seismic pressure gauges are mainly used in metallurgy, power, petroleum, chemical and light.
Pressure testing of industrial and mechanical industries.The pressure gauge depends on internal filling resistance.
Measures such as ni-liquid and supporting buffer to reduce pulsation pressure or local vibration.
The impact on it.The seismic pressure gauge has good seismic resistance.apply
The pressure in the measured medium has a strong pulse change or pressure impact and in the production worker.

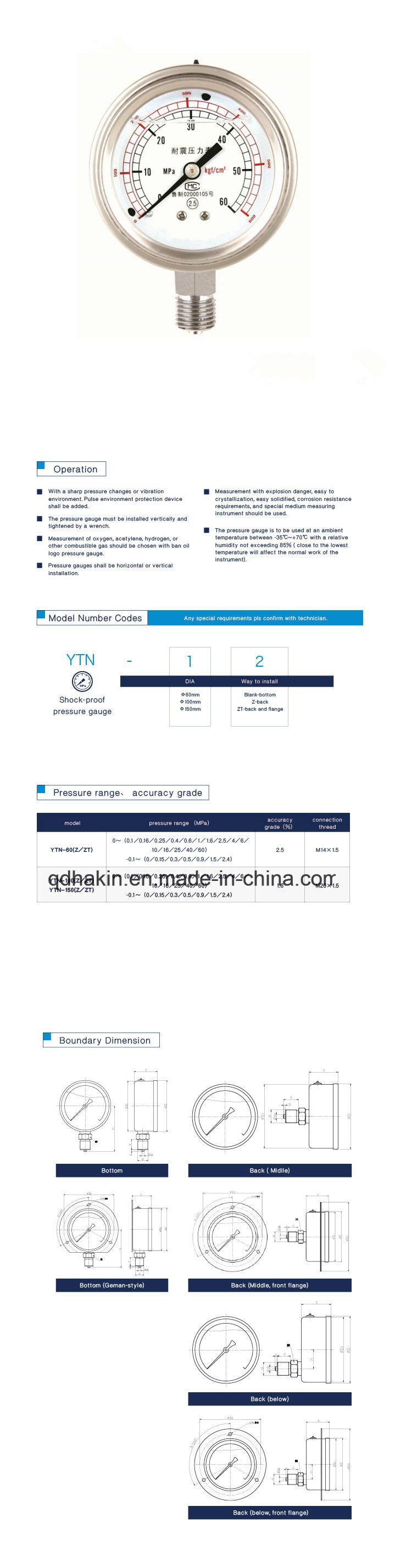

Main technical parameters
Nominal diameter: medium 60mm, medium 100mm, medium 150mm.
Static load with a measurement upper limit of 3/4, alternating load.
Working pressure: use up to 2/3 of the upper limit of the measurement.
Measured upper limit
Coupling nut
M14 x 1.5, M20 x 1.5
A quarter of the PF (PT, NPT)
PF (PT, NPT) 1/2
Instrument damping fluid: methyl silicone oil.
Spring tube
Tin phosphate bronze tube
Connector material;Copper alloy, copper alloy surface plating chromium.
movement
Copper alloy
The trim SUS304
Gauge glass
Pc glass, tempered glass
We produce all types of shock pressure gauges, welcome to consult and purchase.
YN-series of seismic pressure gauges
Liquid filled pressure Gauge
YTFN
AT DT
YXC YXN ; YTXC ; YTNXC
All Stainless Steel Vibration-proof Pressure gauge could measure the pressure of the corrosiongas liquid be applied to the occasion with dynamic load vibration.
Seismic pressure gauges for the environment places severe vibration, the pulse of mediatolerance, and the impact of a sudden unloading, gauges clear instructions and stability.
use
Shockproof pressure gauges are suitable for environments with violent vibration.
The pulsation, impact and sudden unloading of medium are widely used in machinery.
In petroleum, chemical, metallurgical, mining and electric power production, copper is measured.
And copper alloy non-corrosive media pressure.The measurement of corrosion is strong.
Quality pressure should be made of stainless steel material.
Alkali, ammonia, etc.
Use and maintenance
Please read the following notes carefully before using this product:
The instrument center should be installed vertically. The wrench should be used when mounting. No.
The case should be strongly twisted to avoid collision when transporting.
2. The ambient temperature of the instrument should be filled according to the inside of the instrument.
The working fluid is treated differently.
A. internal instrument is suitable for oil temperature environment - 25 ~ + 55 ºC C
B. internal glycerin instrument suitable for environment temperature - 8 ~ + 40 ºC.
3. The vibration frequency of working environment is <25} billion Z, and the amplitude is not greater than.
1 mm.
4. Due to high ambient temperature, the meter indicates that the value is not zero or out.
The display value is extremely poor, and it is recommended to seal the upper part of the case before using the instrument.
The glue plug is cut open, if with the switch plug should be placed on the opening.
State, so that the internal cavity of the instrument can be connected with the atmosphere.
5. The scope of instrument use should be between 13 and 23 of the upper limit.
6. In the measurement of corrosive medium, possible crystallization of the medium, the viscosity is large.
The media should be isolated.
7. The instrument shall be checked regularly (at least once every three months), for example.
The fault should be repaired in time.
8. The instrument shall be kept in normal operation within one year from the date of delivery.
It is found in the condition that the manufacturing quality is defective or damaged.
The company is responsible for repair or replacement.
9. The instrument for measuring corrosive media shall be indicated when ordering.
Strives for the conditions.
