| Price: | US $ 2/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Measuring Range: | Medium-pressure Gauge |
|---|---|
| Accuracy: | 1.5 |
| Display: | Pointer |
| Application: | Civil |
| Structure: | Spring Pressure Gauge |
| Connection Type: | Radial Direction |
| Function: | Electric Signal-controlled |
| Indicating Pressure Reference: | General Pressure Gauge |
2. Product Parameters| Dia: | φ150mmφ100mm | ||||
| Accuracy grade: | 1.5/1.6/2.0% | ||||
| Working pressure: | The pressure gauge should not exceed 3/4 of the maximun scale value under steady pressure and not exceed 2/3 of the maximum scale value under fluctuation pressure and not exceed 1/3 of the maximum scale value under shori-time pressure. | ||||
| Max power: | 50VA | ||||
| Working Voltage: | DC24V,AC220V or AC380V | ||||
| Control method: | top and bottom limitation,contact switch,dry reed | ||||
| IP grade: | IP65 | ||||
| Connection Thread: | M20×1.5,PF(PT,NPT)1/2 | ||||
| Damping fluid: | Silicon oil△ | ||||
| Bourdon tube: | brass sus304 or sus316 | ||||
| Connection material: | tin alloys, sus304 or sus316 | ||||
| Movement: | SUS304, copper alloy | ||||
| Casing: | SUS304, Steel plate chrome plated | ||||
| Glass: | PC | ||||
| Product name | Model | |

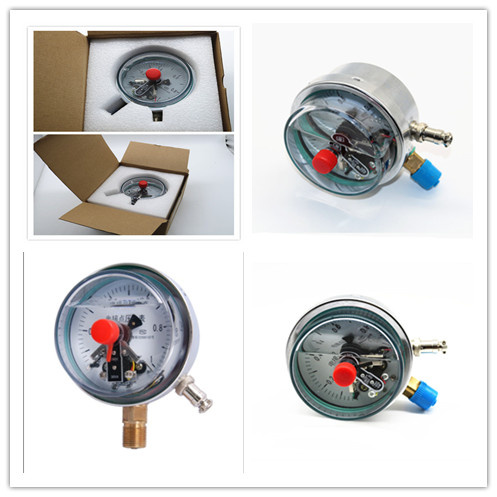

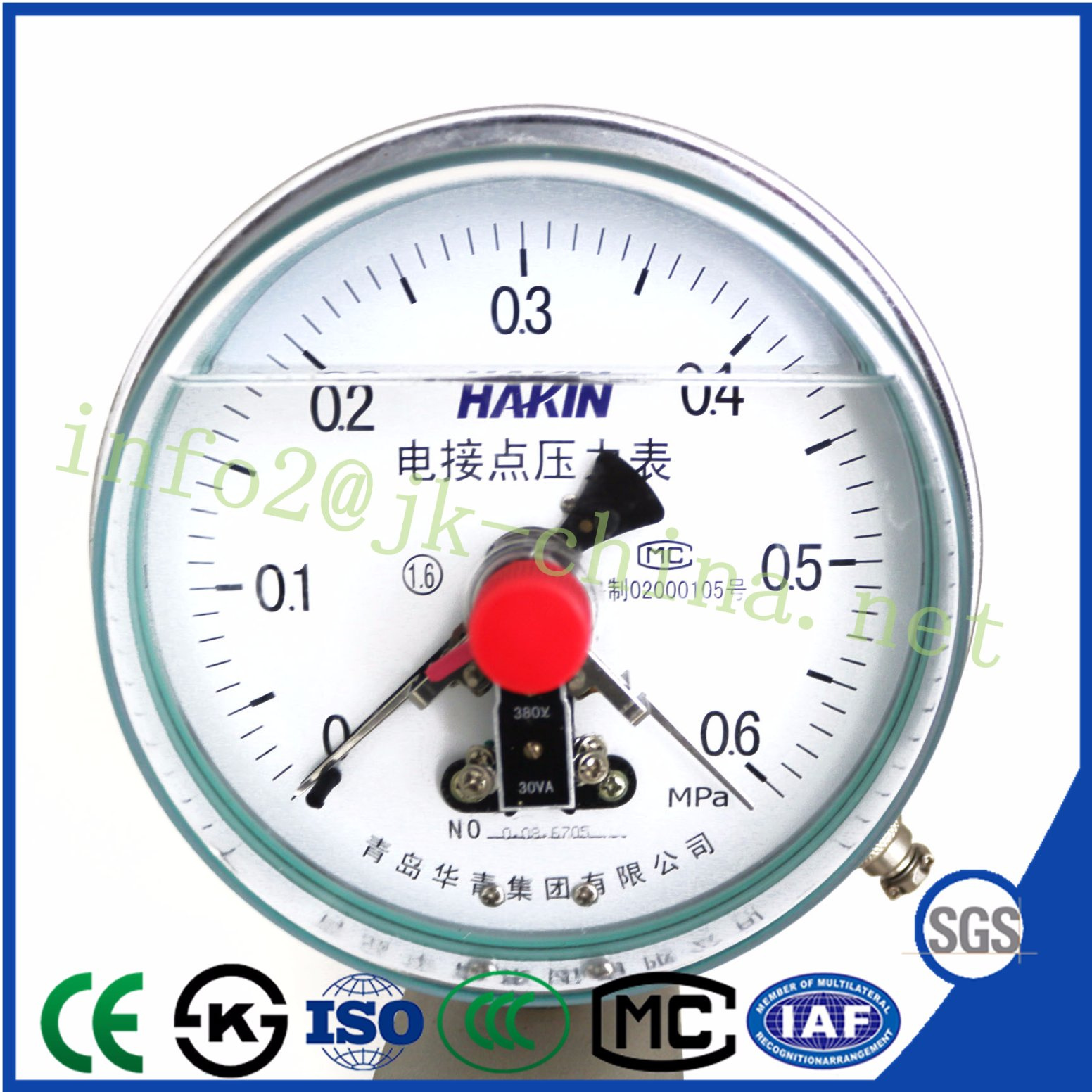

| Shock proof electric contact pressure gauge | ytnx-100c(Z/ZT) ytnx-150c(Z/ZT) | |
| Pressure Range(Mpa) | ||
| 0~(0.1/0.16/0.25/04/0.6/1/1.6/2.5/4/6/10/16/25/40/60)-0.1~(0/015/0.3/0.5/0.9/1.5/2.4) | ||
| Accuracy Grade (%) | ||
| 1.6 | ||
| Connection Thread | ||
| M20×1.5 | ||
The pressure gauges with shock resistance can resist pulsation, shock resistance etc.
Widely used in petroleum, chemical industry, chemical fiber, metallurgy, power plant
and other industrial sectors to fluctuate pressure,
The technological process of seismic demand is higher, but measuring various fluid
pressure, in addition the meter with electric contact device, used for on-site instruction
and contact switch circuit in the pressure regulation system, and can automatic control
and remote transmission, namely when the pressure to the expected value can connect
or disconnect the control circuit, to achieve automatic alarm, earthquake resistant structure
can effectively inhibit second instrument itself pointer jitter, impact, protect the contact.
Make the instrument instructions clear, electrical switch, reliable and stable.
Characteristics that
1. The contact device is a magnetic assisted gold-plated contact contact, with reliable
contact and corrosion resistance.
2. Other dry reed contacts can be used to transmit signals in low voltage (24V, 12V).
No flying arcs, quick response and long service life.
Use
Shockproof pressure gauges are suitable for environments with violent vibration.
The pulsation, impact and sudden unloading of medium are widely used in machinery.
In petroleum, chemical, metallurgical, mining and electric power production, copper is
measured.
And copper alloy non-corrosive media pressure.The measurement of corrosion is strong.
Quality pressure should be made of stainless steel material.
Alkali, ammonia, etc.
Use and maintenance
Please read the following notes carefully before using this product:
The instrument center should be installed vertically. The wrench should be used when
mounting.
1.The case should be strongly twisted to avoid collision when transporting.
2. The ambient temperature of the instrument should be filled according to the inside of
the instrument.
The working fluid is treated differently.
A. internal instrument is suitable for oil temperature environment - 25 ~ + 55 ºC C
B. internal glycerin instrument suitable for environment temperature - 8 ~ + 40 ºC.
3. The vibration frequency of working environment is <25} billion Z, and the amplitude is
not greater than 1 mm.
4. Due to high ambient temperature, the meter indicates that the value is not zero or out.
5. The scope of instrument use should be between 13 and 23 of the upper limit.
6. In the measurement of corrosive medium, possible crystallization of the medium, the viscosity
is large.
7. The instrument shall be checked regularly (at least once every three months).
8. The instrument shall be kept in normal operation within one year from the date of delivery.
