| Prod Model: |
ADS-WM-06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
Q195 |
| Factory: |
More Than 20years |
| QC: |
Ccic |
| Quality Management: |
Ukas |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Weave Technique: |
Plain Weave |
| Application: |
Decorative Mesh |
| Type: |
Welded Mesh |
| Certification: |
BV |
| Condition: |
New |
| Mesh Size: |
6mm-500mm |
| Surface Treatment: |
Galvanized, PVC Coated |
| Color: |
Silver, Black , Green, Blue,etc |
Product Description

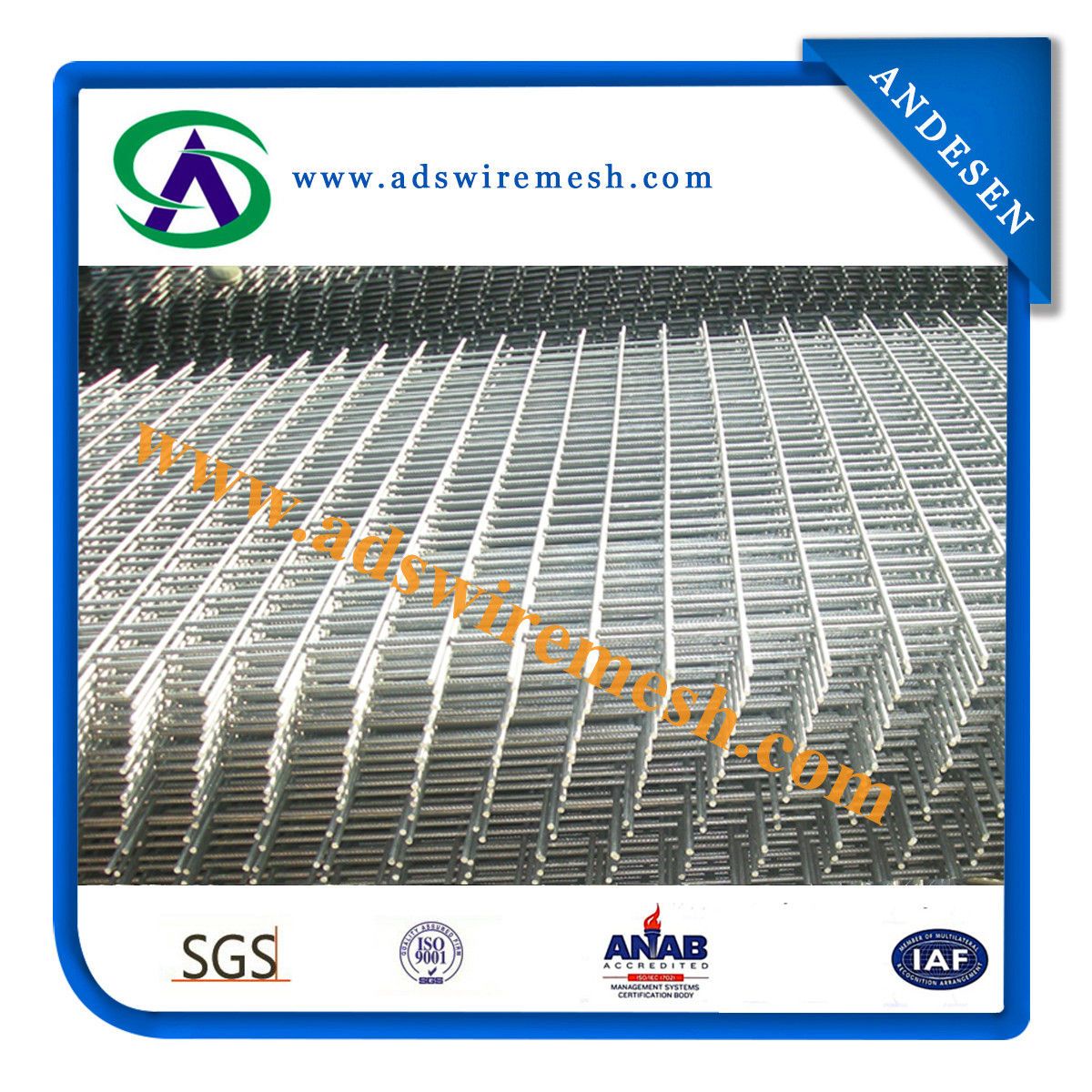

Welded Wire Mesh
Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.
Galvanized Welded Wire Mesh
Material: The low carbon steel, electric-galvanized steel wire, hot-dip galvanized steel wire, pvc coated wire, stainless steel wire etc.
Length: 30m, 20m, 2.4m, 2m, or as per you request
Width: 1m, 48", 24" 3', 4', 5',
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Specification List of Welded Wire Mesh
|
Opening
| Wire Diameter
|
In inch
| In metric unit(mm)
|
1/4" x 1/4"
| 6.4mm x 6.4mm
| 22,23,24
|
3/8" x 3/8"
| 10.6mm x 10.6mm
| 19,20,21,22
|
1/2" x 1/2"
| 12.7mm x 12.7mm
| 16,17,18,19,20,21,22,23
|
5/8" x 5/8"
| 16mm x 16mm
| 18,19,20,21,
|
3/4" x 3/4"
| 19.1mm x 19.1mm
| 16,17,18,19,20,21
|
1" x 1/2"
| 25.4mm x 12.7mm
| 16,17,18,19,20,21
|
1-1/2" x 1-1/2"
| 38mm x 38mm
| 14,15,16,17,18,19
|
1" x 2"
| 25.4mm x 50.8mm
| 14,15,16
|
2" x 2"
| 50.8mm x 50.8mm
| 12,13,14,15,16
|
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
|
Shenzhou AnDeSen Wire Fencing Co., Ltd is a big wire mesh manufacturer located in Shenzhou of Hebei Province. AnDeSen is specialized in wire drawing, galvanizing and wire mesh weaving. With over 200 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
AnDeSen mainly produces All kinds of galvanized wire, soft annealed wire, PVC coated wire, Welded Wire Mesh, Hexagonal Wire Mesh, Stainless Steel Wire Mesh, Razor Barbed Wire, Fence, Chain Link Fence, Window Creening, Square Wire Mesh, common nails, roofing nails as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual be
