Types of Barbed Wire: Galvanized Barbed Wire Galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one barbed wire; one main wire, twin barbed wire; and twin main wire, twin barbed wire.
PVC Coated Barbed Wire Core of PVC coated barbed wire can be galvanized iron wire A variety of colors like green, blue, yellow, orange, gray Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C or hessian cloth
Common Uses 1. the protection net in industry 2.agriculture,animal husbandy,dwelling houses 3.plantation of fencing,grass boudary 4. ranch and livestock farn, detention houses 5.railways and highways
5. Our product info: wire Gauge: 16#-12# Barb Wire Gauge: 16#-12# Barbed length:1-3cm Barbed spacing:7.5-15cm Weaving way: Twist, standard Surface finished: Electro galvanized,Hot dipped galvanized,PVC coated Weight of packing in coil:25kg/coil,50kg/coil as standard Note: Customer request acceptable.
Features: *Barbed wirehas the feature of extremely difficult to cut and hard to climb. *Barbed wireis very strong and reinforced with a steel coil which makes it very hard to bend, while the barbs have a piercing and gripping action. *Barbed wireenjoys good appearance.

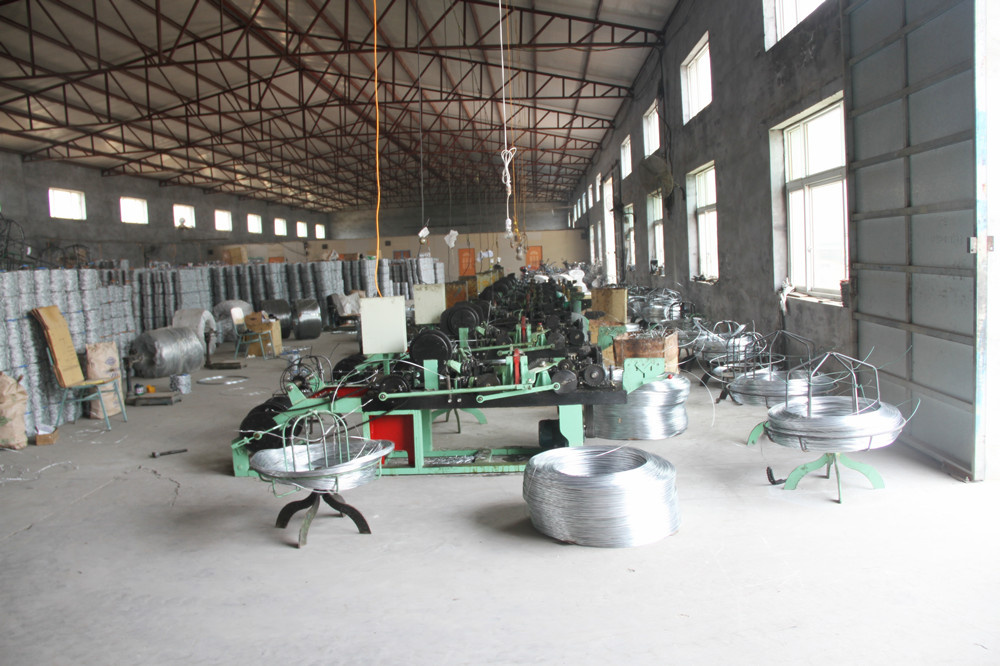

The manufacture machine and our factory
The packing Plastic inside, hessian outside Plastic inside,waving bag outside 1)in nude 2)in iron axletree 3)in wood axletree ; 4) in wood pallet
Specification List
Gauge of Strand and Barb in B.W.G.
Approximate Length per Kilo in Meter
Barbs Spacing 3"
Barbs Spacing 4"
Barbs Spacing 5"
Barbs Spacing 6"
12x12
6.0617
6.7590
7.2700
7.6376
12x14
7.3335
7.9051
8.3015
8.5741
12-1/2x12-1/2
6.9223
7.7190
8.3022
8.7221
12-1/2x14
8.1096
8.814
9.2242
9.5620
13x13
7.9808
8.899
9.5721
10.0553
13x14
8.8448
9.6899
10.2923
10.7146
13-1/2x14
9.6079
10.6134
11.4705
11.8553
14x14
10.4569
11.6590
12.5423
13.1752
14-1/2x14-1/2
11.9875
13.3671
14.3781
15.1034
15x15
13.8927
15.4942
16.6666
17.5070
14x16
15.3491
17.1144
18.4060
19.3386
Shenzhou AnDeSen Wire Fencing Co., Ltd is a big wire mesh manufacturer located in Shenzhou of Hebei Province. AnDeSen is specialized in wire drawing, galvanizing and wire mesh weaving. With over 200 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
AnDeSen mainly produces All kinds of galvanized wire, soft annealed wire, PVC coated wire, Welded Wire Mesh, Hexagonal Wire Mesh, Stainless Steel Wire Mesh, Razor Barbed Wire, Fence, Chain Link Fence, Window Creening, Square Wire Mesh, common nails, roofing nails as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual be
