55kws/ 75HP Wire Saw Machine for Granite Marble Sandstone Onyx Travertine Stone Quarrying
| Price: |
US $ 27000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
LQ-WSM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Wire Saw Machine |
| Main Motor Power: |
37-75 Kw |
| Length Of Wire: |
20-150 M |
| Diameter Of Driving Wheel: |
600-1000 mm |
| Speed: |
0-40 M/S |
| Length Of Track: |
2 M/PC |
| Control System: |
Automatic |
| Work For: |
Stone and Concrete Cutting |
| Price Base: |
Fob |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Electrical Wire Cutting Machine for Stone Quarry |
| Certification: |
SGS |
Product Description

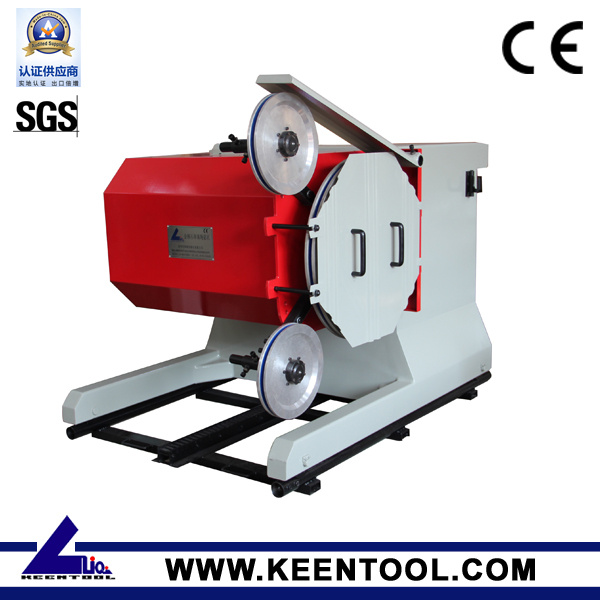

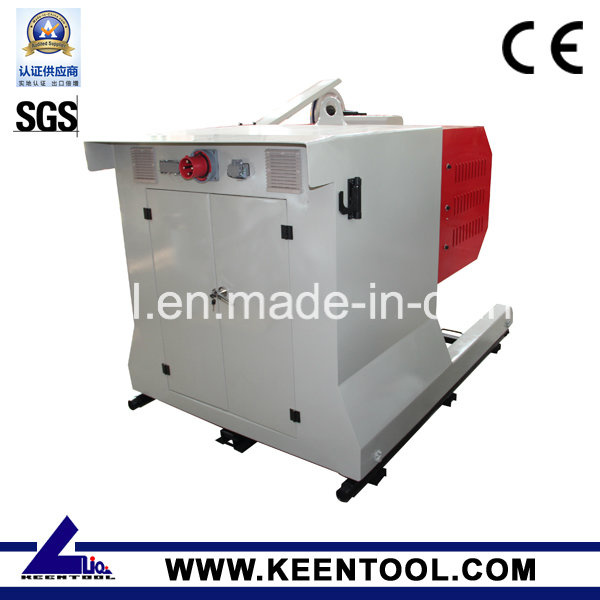

Stone Quarry Machinery- Wire Saw Machine
LQ series wire saw machines are with PLC control and double vector invertors for both the main motor and travel motor, which allows to variable speed setting from 0-40M/S. The lateral extension and 360° rotation of driving wheel-holder head are motorized, easy to position the saw, and allows to execution of two parallel cuts. All the movements of the saw are motorized. The automatic step-less tensioning system enables to keep the diamond wire constantly working under proper programmed tension. The unloading stop system can stop the saw and alarm to inform the operator in case of unexpected wire break, which enables to temporary no supervision work and increases the work efficiency in quarry.
1.) Variable wire speed setting from 0-40M/S
2.) Motorized rotation of driving wheel holder from 0- 360degree with limit control for over movement
3.) Motorized lateral extension of flywheel shaft position each side maximum 350-400mm with limit control for over extension
4.) Maximum travel speed on rail without loading 1.75M/Min to save time
5.) Safety alarm and stop system for unexpected wire break or other faults like over voltage, over currency, over heat on main motor etc
6.) Distant control with very simple panel to operate the saw with better safety easier understanding to the operator
7.) Separate automatic reset selection switch to control the rotation and lateral extension movement; which can be taken off when it is no need
8.) Schneider electronics with better reliability and convenient local source 9.) 5 seconds main motor start alarm and flash light to remind people around to leave away for better safety
10.) Solid turbine and worm with perfect covering and protection against dust and water to move in
11.) Direct Gear driving for stable and fast travel movement on rail
12.) Big size and heavy steel frame with better space for maintenance and good stability.
13.) Strong and fine rail with good duration and stability assures the saw will move smoothly during cutting.
| Model | Main Motor | Speed Setting | Diameter of Drive Wheel | Application | Remark |
| LQ-WSM-37KWS | 37KWS | 0-40M/S | 800MM | Suitable for all natural stone quarrying and block trimming, as well as controlled demolition | Standard power supply 3phases, 380volts,50Herz
Modification or transformer will be need for other power standard |
| LQ-WSM-45KWS | 45KWS | 0-40M/S | 800MM |
| LQ-WSM-55KWS | 55KWS | 0-40M/S | 800MM |
| LQ-WSM-75KWS | 75KWS | 0-40M/S | 1000MM |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
