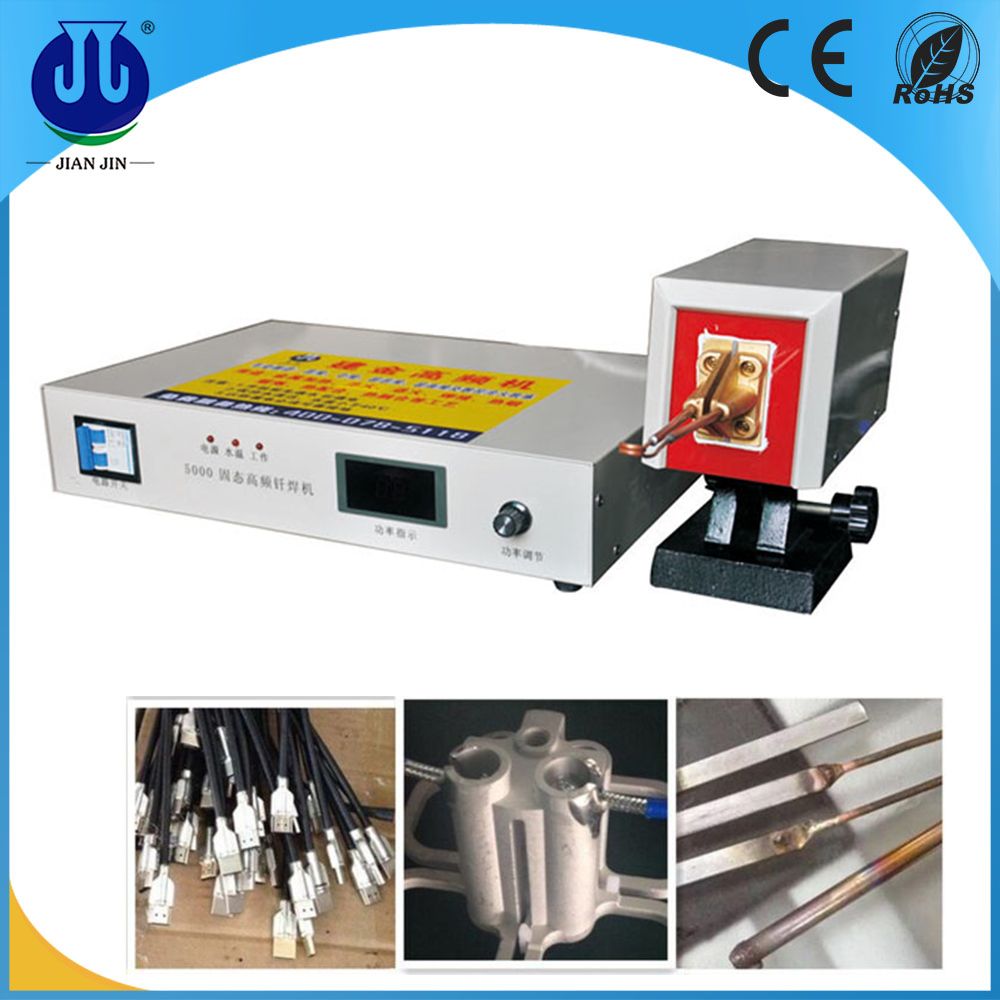

5kw Ultrahigh Frequency Induction Heating Machine for Saw Tooth Brazing

Product Description

Main Features
1. ultrahigh frequency Series , able to heat steel wire diameter less than Φ 0.1mm.
2. Resonant conversion of technology: High efficiency, the power consumption is only 20%-50% of consumption of vacuum tube induction heating equipment.
3. MOSFET technology based, high frequency, light weight and small size.
4.100% duty cycle and 24 hours continuous work. 10% -100% output power steplessly adjustable.
5. Simple design; Easy installation, here is no need for regulation and convenient operation.
6. Safe and Reliable: The equipment has no high voltage, the operation is safe.

Induction Heating Machine Application:

Welding (braze welding, silver soldering and brazing)

It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.

1. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit. 2. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.

3. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.

4. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.

Advantage

Nearly 15 years experience, stable and goods performance
CE,SGS,ROSH  certificated
Cooperated with Geli,VOLVO,HONDA and so on.
Suitable for a large range, heating, quenching, forging, melting, soldering and so on.
Less environment pollution
High efficiency,high output&high reliability
Small size &light weight

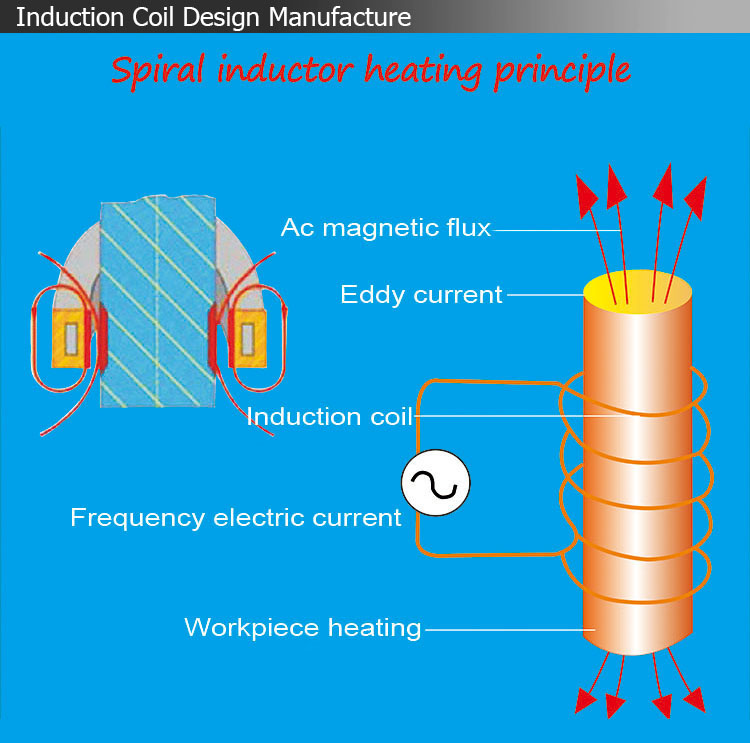

The induction coil design and manufacture

1.The shape of the induction coil, should according to the heating surface shape workpiece,Production principle should

make induction part of brass and workpiece heating surface parallel or isometric and adjacent interturn current direction

should be consistent

2.The clearance between the induction coil and small artifacts should be controlled in 1-3 mm is advisable

3.material selects and uses the diameter 6 the above(wall thickness red copper tubes with 1 mm best)

the diameter>10mms brass selects and uses method of brass best

4.Connected to the machine of electric contact surface should be clean the oxide layer

5.Make full use of the approach of the current effect and gap effect, when it is necessary to add magnetizer

6. After induction coil is made, with the machine match, a frequency within the prescribed scope

• Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear

• Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.

• Heat treatment for various electric tools, such as gear and axes.

• Heat treatment for machine tools,such as lathe deck and guide rail.

• Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp etc.

• Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

• Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.

• Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.

           Welding of various meatal products,such as drill bits,cutter teeth,accessories,tool bit etc.

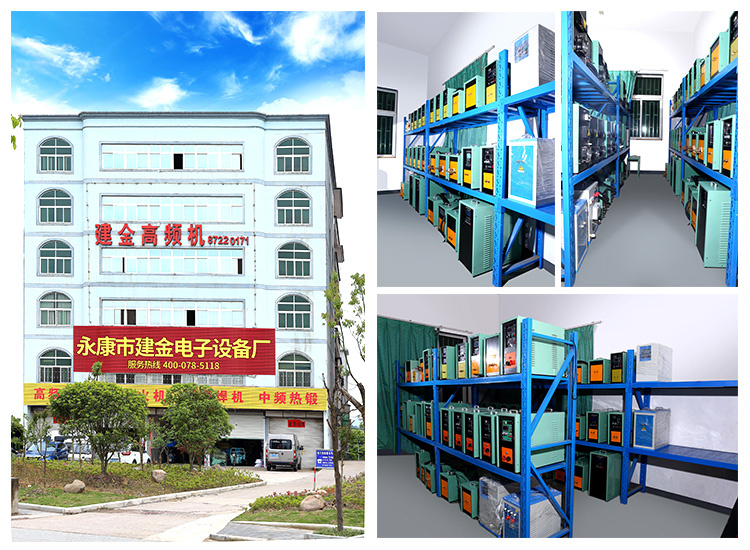

YongKand JianJin Electronics Co.,Ltd is a China based company with 12 years experience in special induction heating equipment region. Our R& D team has developed different induction machines for varied applications, and our machines have been successfully installed and commissioned all world wide.

We are a leading manufacturer of reliable, high quality induction heating equipments, that ensures an excellent payback on your investment. Besides, JianJin Electronics Co.,Ltd can provide specific application oriented equipment to meet individual needs of our customers and assist you with automation of the machines offered.If you have any interest in our products, pls do not hesitate any more, our staff will give you the best service at the first time.

FAQ:

1.which countries your products are exported to ?

Our products are sold all over the world and with related certifications.

2.How to install your machine?

We have paper installation instructions and videos ,we will teach till you learn it.

3.How about the warranty?

All our products have one year quality warranty,during the warranty time,the spare parts replacement is free,and we

provide life long time technical support and other assistance.

4.Which export port  you use?

Any China port,commonly we will use Ningbo Shanghai  port,can appoint as you like.

5.If I have paid but can not receive the goods,how should I do?

Alibaba international website is a famous trade platform and has been mature those years,every merchant on it has

paid large integrity fund,and we have China business licenses which can be checked on China official website or we

can show it to you,so that situation will never appear, please be assured.

6. How about the payment ways and delivery time?

30% deposit,70% before sending the goods(we will shoot total delivering process for customer's confirmation)and the

related papers.You can pay by T/T,L/C,western union or other ways.The small machinedelivery date is within 7 days,

the bigger one takes about 15days,we will delivery goods on time.

7.What is your nature of your company,dealer or factory?

We are manufacturer, warmly welcome to visit our factory.
