| Prod Model: |
grind pins |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7-25mm Diameter |
| Color: |
Blue and Grey |
| Weight: |
0.01-0.2kg |
| Rotation Speed: |
20000 Rpm |
| Certificate: |
SGS ,CE |
| Operation: |
Semi Automatic Working |
| Export Markets: |
Global |
| Factory Location: |
Xiamen, Near to Quanzhou |
| Aplication: |
Minging and Quarrying Drill Bits Button Bits Grind |
| Model: |
Bton500/Bton200 Grinder and Pins |
| Type: |
Angle Grinder |
| Power Source: |
Pneumatic |
| Material: |
Aluminum Alloy |
| Working Style: |
Airflow |
| Application: |
Quarrying and Mining |
| Disc(',Wheel) Type: |
Grinding Pins |
| Disc Diameter: |
7-25mm |
Product Description
Products Features:
Xiamen Bestlink factory design and produce the BTON500 and BTON200 pneunatic buttong bits grinding machine.

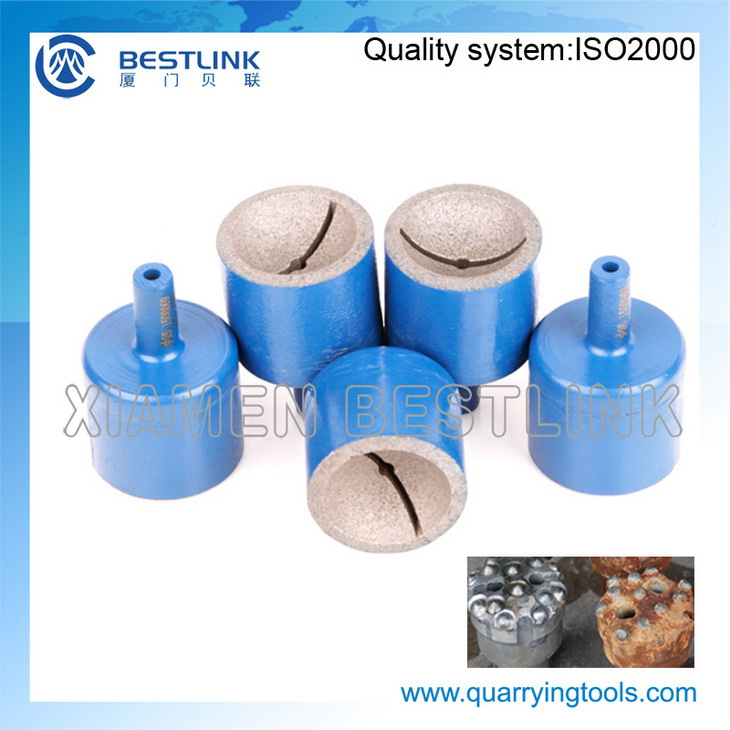

A full spares back-up service is also available. Also produce the grinding pins/cups, available with a choice of Hemispherical, Ballistic Semi Ballistic, Paraboloid or Conical pins, in sizes 6mm to 25mm.
Other sizes available on request.
BTON 500 semiautomatic button bit grinder have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved. Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant
During the grinding process.
PREVENTION MEASURES AND INSTRUSTIONS FOR MACHINES OPERATORS
BEFORE USE:
Check that the machine is stable and that the grinder is correctly and tightly fitted to the machine.
Check the integrity of the guards protecting parts in motion.
DURING USE:
Report immediately any inappropriate functioning or dangerous situations;
The operator's position needs to be such as not to be in contact with the parts in movement;
Do not remove or modify protection devices;
Do not intervene on mobile parts during the functioning of the machine;
Do not get distracted.
AFTER USE:
Correctly position the machine without leaving the tool suspended;
Carry out the review and maintenance operations needed to reuse the machine with the power supply disconnected;
In the maintenance operations comply with the indications of this manual;
Clean the machine.
| Rotation speed |
| 20000 rpm |
| Motor: Pneumatic (air powered) Power output |
| 1.5 KW |
| Work pressure |
| 5-7 bar (100 psi) |
| Max. air pressure |
| 8 bar (115 psi) |
| Air consumption |
| 2.2 m3 / min (80ft3/min) |
| Max. water pressure |
| 4 bar (60 psi) |
| Air hose diameter |
| 19 mm |
| Water hose diameter |
| 4 mm |
| Weight excl. packaging |
| 50.0 Kg |
| Weight incl. Packaging |
| 55.0 Kg |
| Transport dimensions: |
|
|
| Sound level |
| 92 dB(A) |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
