| Prod Model: |
SV19BY021 |
| Pressure: |
700bar |
| Hose(Optional): |
1800mm |
| Weight: |
11.1-11.8kg |
| Action Type: |
Single Acting, Double Acting |
| Oil Capacity: |
0.65-1.2L |
| OEM: |
Yes |
| Color: |
Customized |
| Exports Market: |
Worldwide |
| Design: |
Compact Design |
| Brand: |
Sov |
| Pressure Medium: |
Gas |
| Type: |
Electric Hydraulic Pump |

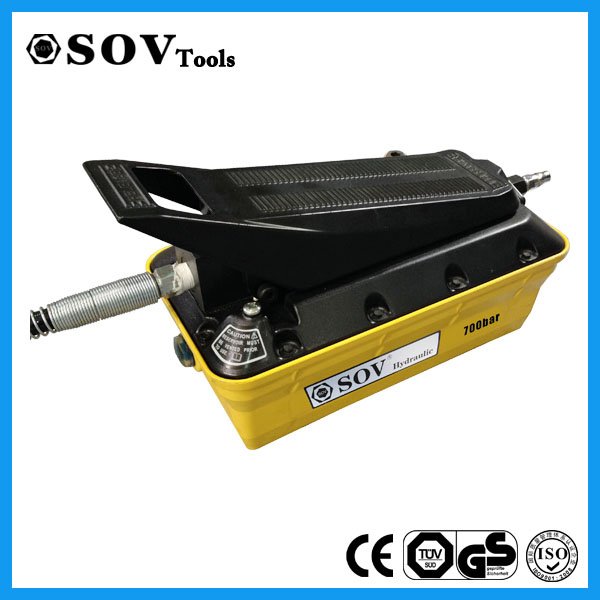

Product Description
Feature
The working air pressure 1.7-8.6bar, so the pump can be start at very low air pressure
It is compact design, light and handy and is easy to carry. The single-speed pump is for driving single acting cylinder.
It has durable and anodized Al-Ti alloy shell with hard surface.
It has low air consumption and operation cost.
The internal overflow valve provides overload protection.
The unique needle valve leads pressure relief, which is easier for the pedal operation.
The Al-Ti alloy oil tank can protect the pump from severe working environments.
The air and oil filter can protect the pump from dirt, avoid damages.
The unique oil tank design can satisfy all position operation and storage.
Product Parameter
| Model | Oil(CC) | Working Pressure(bar) | Tubing(mm)
Optional
| Weight
(Kg) |
| SV19BT021 | 650 | 700 | 1800 | 11.1 |
| SV19BY021 | 800 | 700 | 1800 | 11.3 |
| SV19BG021 | 900 | 700 | 1800 | 11.4 |
| SV19BG022 | 1200 | 700 | 1800 | 11.8 |
Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
