| Prod Model: |
SOV-XLCT series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Of Hydraulic Spanner Wrench: |
700bar |
| Max. Torque Range: |
4188-41882nm |
| Min. Torque Range: |
232-2328nm |
| Bolt Size: |
16-36 mm to 76-115mm |
| Nut Size: |
24-55 mm to 110-165mm |
| Delivery Time: |
5-15 Days After Receive Payment |
| Weight Of Hydraulic Spanner Wrench: |
1.5-29.5kg |
| Product Name: |
700bar Hollow Type Al-Ti Alloy Hydraulic Torque Wr |
| Place Of Origin: |
China |
| Type: |
Hex Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
- |
| Surface Treatment: |
Chrome |
| Feature: |
Anti-Magnetic |
| Brand: |
Sov |
| Working Mode: |
Hydraulic |
Product Description

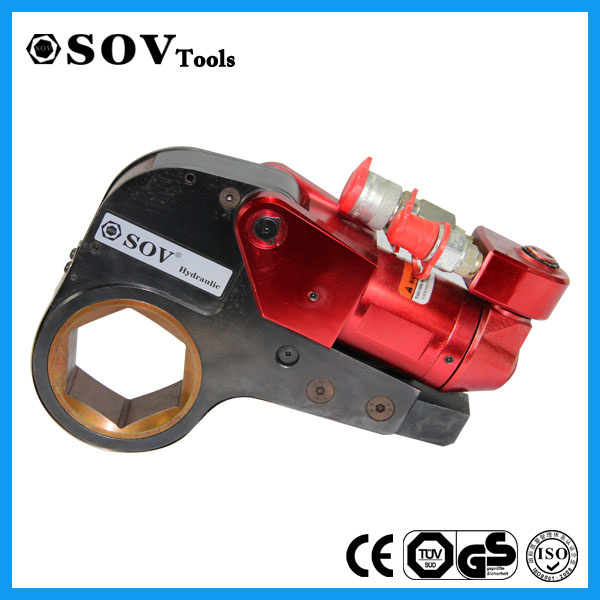

700bar Hollow Type Al-Ti Alloy Hydraulic Torque Wrench (SOV-XLCT )
Features
1. New type anti-loosing quick coupler used to guarantee smooth operation
2. 360º×180º swivel hose connection allows easier positioning in confined areas.
3. Al-Ti alloy machine body for high strength, high toughness, light weight and high flexibility
4. Ratchet mechanism design for anti-reversion wrench, increased efficiency and torque precision
5. Integrated lengthening design for increased arm and reliability
6. Hollow design allows the wrench to directly act on the nut for increased torque precision and light weight
7. Adopt reduction sleeve to expand the application of wrench
Packaging & Shipping
1. Each hydraulic wrench is packed with wooden case.
2. Shipping is designated by customer.
Our Services
1. One Year Warranty for Hydraulic Wrench
2. Endless free maintenance service
3. Quick response
4. OEM service available
Company Information
Brief Introduction
SOV is a professional manufacturer engaged in design and production of hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Certificates
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Project Case
Our customer base includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Also, our products can be exported worldwide to many countries such as the Europe, Asia, North America, Latin America, Australia, New Zealand, the Middle East and Africa.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Main Products
We are a manufacturer in tools, such as:
Hydraulic cylinders/jacks (5-3000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-1000 ton)
Hydraulic pumps, manual and electric type (max. up to 4000bar);
Integrated hydraulic lifting system solutions (4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
| Model | SOV-2XLCT | SOV-4XLCT | SOV-8XLCT | SOV-14XLCT | SOV-30XLCT |
| Torque Range (nm) | 232-2328 | 585-5858 | 1094-10941 | 1852-18521 | 4188-41882 |
| Bolt Size (mm) | 16-36 | 24-42 | 30-64 | 33-76 | 76-115 |
| Nut Size (mm) | 24-55 | 36-65 | 46-90 | 50-110 | 110-165 |
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
