76-100mm Hole 25meters Depth Down The Hole Drill for Mining
| Price: |
US $ 1-2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
SKD100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
SKD100 |
| Drill Depth: |
25m |
| Hole Diameter: |
76-130mm |
| Power: |
4kw |
| Air Consumption: |
6m3/Min |
| Lifting Force: |
9600n |
| Drill Rod Diameter: |
50-60mm |
| Dimension: |
2280X400X550mm |
| Weight: |
470kg |
Product Description
Application of Electric & Pneumatic SKD100 Down The Hole Drilling Rig1. It is a new rock drilling equipment with energy saving, high efficiency designed by ourselves.
2. It is widely used in small and medium-sized mines, defense engineering, water conservancy, irrigation projects, road constrtction, blast hole drilling operations in Rock engineering, which is ideal machine to extraction and medium deep-hole blasting.
3. It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally.
4.This drilling rig features compact structure, easy operating, fast drilling, high efficiency, easy to disassemble and very convenience for carrying.
Specification for SKD100 Down The Hole Drilling Rig| Model No | SKD100 |
| Bore diameter | 76~130mm |
| Bore depth | 25m |
| Rock hardness | f = 8~20 |
| Rotating speed (without load) | 84r/min |
| Working air pressure | 0.5~0.7Mpa |
| Air consumption | 6m3 / min |
| Lifting force | 9600N |
| Electric motor power | 4kw |
| Electric motor voltage | 380V |
| Drilling rod length | 1025mm |
| Engine | electric |
| Recommend matched air compressor | 7m3/min,7bar air compressor |

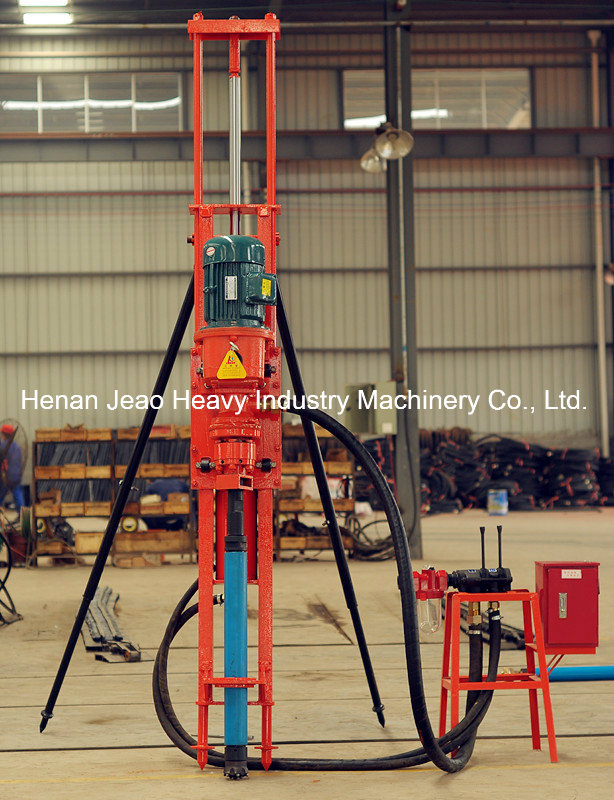

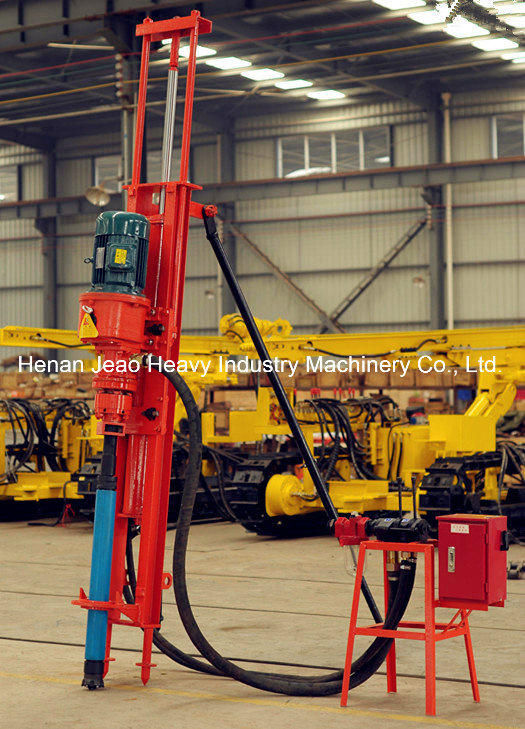

Picture for SKD100 Down The Hole Drilling Rig
A Company You Can Trust:
Located in Xinxiang City, Henan Province, China, Henan Jeao Heavy Industry Machinery Co., Ltd. is a professional manufacturer of screw(piston) air compressors, crawler drilling rigs, pneumatic tools, mining construction machines, crushers, etc. We have 12 years' experience in mining construction machinery and have a good reputation in this field. Our products have a vast market in foreign countries such as Nigeria, Zambia, Zimbabwe, Congo, Kenya, USA, UK, Sudan, and other countries and regions.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed QC, ISO & CE certifications.
Your Success, Our Glory:
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
