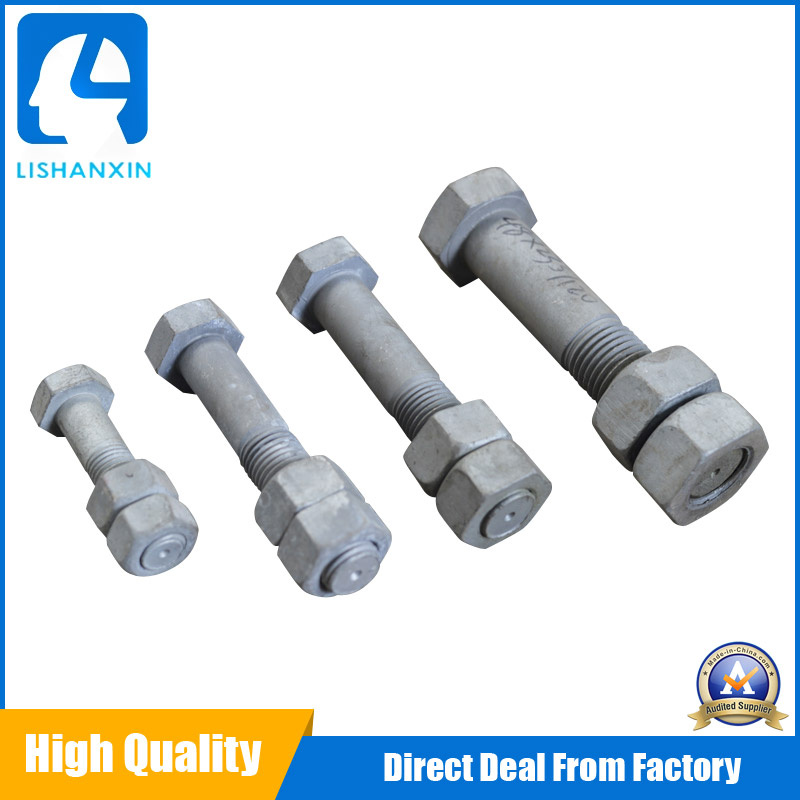

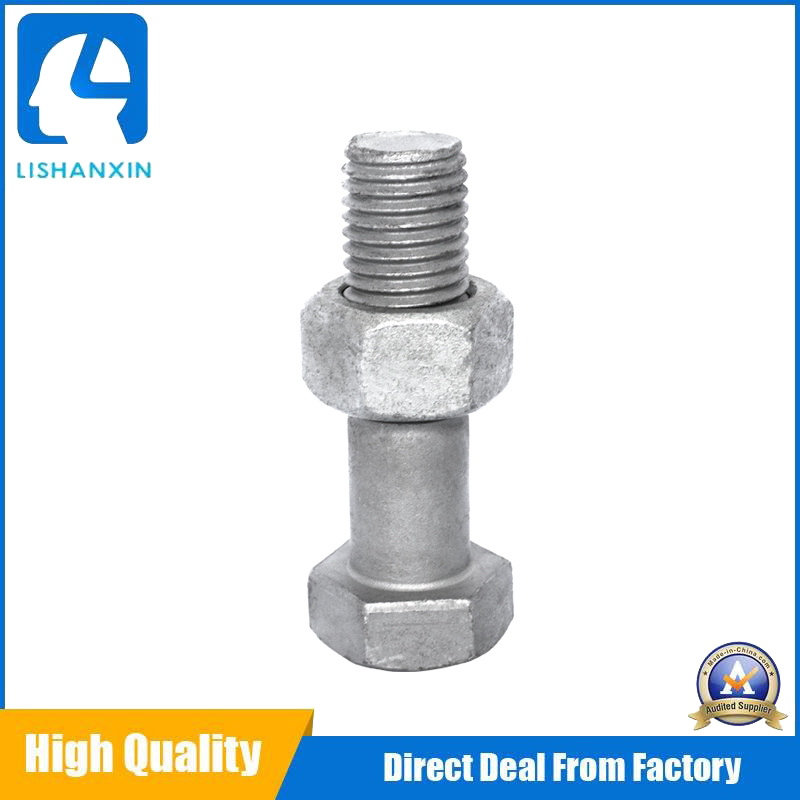

8.8grade Zinc Plated HDG DIN933/DIN934 Hex Bolts and Hex Nuts
| Price: |
US $ 0.01-1/Piece |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LSX001 |
| Material: |
Carbon Steel |
| Type: |
Hexagon Head |
| Connection: |
Common Bolt |
| Standard: |
DIN |
| Grade: |
8.8 |
| Finish: |
Color-Zinc Plated |
Product Description
Product description :
| ITEMTYPE | Standard | Size range | Property | Material |
| Stud (full thread) Bolt | GB901/953 | M12~M160 | 6.8~10.9 | Internal Steels:
Carbon Steel:
Q345(16Mn),25#,35#,45
Alloy Steel:
20MnTiB,35VB,40Cr,45MnMo, 30CrMoA,35CrMoA,
42CrMoA
25Cr2MoVA
Stainless Steel:
0Cr18Ni9, 0Cr17Ni12Mo2,
00Cr19Ni10, 00Cr17Ni12Mo2
Fe-Basic Alloy:
GH/T2132
Ni-Basic Alloy:
GH/T2312, GH80A Overseas Steels:
ASTM A307/A563
ASTM A193-B7/A194-2H (-7)
ASTM A193-B7M/A194-2HM
ASTM A193-B16/A194-4
ASTM A320-L7/A194-4 (-7)
ASTM A193-B8/A194-8 (LN)
ASTM A193-B8M/A194-8M (LN)
ASTM A453-Gr. 660
ASTM B637-UNS NO7080
AISI 304/316/304L/316L/321 |
| GB897/898/899 | M12~M160 | 6.8~10.9 |
| JB4707 | M12~M160 | 6.8~10.9 |
| HG20634/20613 | M12~M160 | 6.8~10.9 |
| HG/T21573 | M12~M160 | 6.8~10.9 |
| SH3404-96 | M12~M160 | 6.8~10.9 |
| ANSI/ASME B18.2.1 | 1/2"~4" | SAE Gr. 5/8 |
| IFI-136 | 1/2"~4" | SAE Gr. 5/8 |
| DIN975/976 | M12~M160 | 6.8~10.9 |
| DIN2510 | M12~M160 | 6.8~10.9 |
| BS 1769 | 1/2"~4" | 6.8~10.9 |
| Hex Bolt | GB5780~GB5783 | M12~M100 | 6.8~10.9 |
| GB/T1228/1231 | M12~M100 | 10.9 S |
| GB/T3632 | M12~M100 | 10.9 S |
| HG20634/20613 | M12~M100 | 6.8~10.9 |
| SH3404-96 | M12~M100 | 6.8~10.9 |
| ANSI/ASME B18.2.1 | 1/2"~4" | SAE Gr. 5/8 |
| ASTM A325/A490 | 1/2"~4" | 8.8~10.9 |
| DIN 931/933 | M12~M100 | 6.8~10.9 |
| DIN6914 | M12~M100 | 10.9 S |
| ISO4014/4017 | M12~M100 | 6.8~10.9 |
| JIS1180 | M12~M100 | 6.8~10.9 |
| Hex Nut | GB41/6170/6175 | M12~M160 | 6~10 |
| GB/T1229 | M12~M160 | 10H |
| HG20634/20613 | M12~M160 | 8, 10 |
| SH3404-96 | M12~M160 | 6~10 |
| ANSI/ASME B18.2.2 | 1/2"~4" | SAE Gr. 5/8 |
| ASTM A325/A490 | 1/2"~4" | 8~10 |
| DIN 934/2510 | M12~M160 | 6~10 |
| DIN6915 | M12~M160 | 10H |
| ISO 4032 | M12~M160 | 6~10 |
| JIS1181 | M12~M160 | 6~10 |
Hex bolts, which consists of 6 sides on the head, come in a variety of plating and materials. We can supply zinc, zinc yellow, black oxide, magni, cadiunum and others. We offer both domestic and import products. Our sizes start at 1/4" diameter and go up to 2-1/2". The stock consists of both hex cap screws and fully threaded bolts also known as tap bolts. If we do not stock it, we will be happy to see if it is something that we can make for you.
Hex bolts can be used in a wide variety of fastening applications. They can be used in wood, steel, and other industrial applications. Our hex bolts have been used in buildings, bridges, and other industrial needs.
Steel alloy materials
Li shan xin Fasteners uses the following steel alloy materials: Grade 2, grade 5, grade 8,1008,1010,1038,4037, B5, B6, B7, B7M, B16, B8, B8M, L7, A490, A325, 2H and more.
Non-ferrous materials
Li shan xin Fasteners uses a wide variety of materials to suit any fastener application. A few that we provide include:
Stainless steel: 302, 303, 304, 304L, 309, 310, 316, 316B, 316L, 317, 317LM, 321, 330, 347, 410, 416, 422, 430, 431, 440cC and 501
Aluminum: 2024, 6061 and 7075
Copper, brass and bronze: aluminum bronze, silicon bronze 655, silicon bronze 651, phosphorous bronze, brass, naval brass
Exotics: 904L, alloy 50, alloy 60, alloy 20, Ferralium 255, Tantalum, A-286, Haynes 230, titanium, Nitonic alloy 50, Nitrinic alloy 60, Waspaloy, Zirconium, Monel Nickel 200, nickel alloy C276, nickel alloy B, B3 and G-3
Inconel alloys: 600, 601, 625, 718, 800, 800H, 825, 925 and X750
Hastelloy: C-276, B,C-4, G, C-2000, X, and C-22
Monel: 400, 405, K500, and 200FAQ
Q: Are you trading company or manufacturer ?
A: We are an industry and trade integration business, our company located on Tangquan ,NanjingQ: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
Nanjing jiangstandard standard Co., Ltd., located in tangquan town, pukou district, nanjing city. Nanjing jiangstandard standard parts Co., Ltd. is a professional manufacturer of standard parts, and has become the supplier of the state grid, the qualified supplier of photovoltaic power generation and wind power generation. Company consists of seven departments 6 manufacturing plants (bolt cold molding workshop, hot molding workshop, nut workshop, hot-DIP zinc workshop, packing workshop, machine shop), has 300 staff, all kinds of professional and technical personnel more than 30 people, including 2 professors). Fixed assets investment of nearly 60 million yuan, is a production capacity of more than 30, 000 tons of large-scale enterprises.
We supply different kinds of fasteners with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
