| Prod Model: |
YN1390 |
| Applicable Materials: |
Acrylic, Crytal, Leather, MDF,PVC etc |
| Cutting Speed: |
0-40000mm/Min |
| Control Software: |
DSP |
| Condition: |
New |
| Cutting Thickness: |
0-25mm |
| Laser Power: |
80W/100W/130W/150W |
| Cooling Mode: |
Cw5000 |
| Certification: |
Ce, ISO, FDA |
| Date Transfer Interface: |
USB (Offline) |
Product Description
| Model | YN1390 |
| Laser Power | 80W, 90W , 100W, 130W, 140W, (Optional) Reci brand |
| Laser Type | Hermetic EFR/RECI CO2 glass tube |
| Power Supply | AC220±10% 50HZ/AC110±10% 60HZ |
| Working Area | 1300x900 mm |
| Max Moving Speed | 0-40000m/min |
| Worktable | Worktable:manual / motorized up / down |
| Locating Precision | <0.01 mm |
| Min Shaping Character | Character:2*2mm,letter:1*1mm |
| Operating Temperature | 5°C-35°C |
| Resolution Ratio | <4500 dpi |
| Control Configuration | DSP |
| Data Transfer Interface | USB (offline) |
| System Environment | WINDOWS 2000/ XP/ Vista/ Win7 |
| Cooling Way | Water cooling |
Graphic Format Supported | Files which coreldraw,Photoshop, AutoCAD can identify
(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,
CLK,DEX,CSL,CMX,AI,WPG,WMF,CGM,SVG,SVGZ,PCT,FMV,
GEM,CMX) |
| Compatible Software | CoreIDraw,AutoCAD |
| Cutting Thickness | 0-20 mm (Depends on different materials) |
| Color Separation | Separation of cutting up to 256 colors |
| Sloping Engraving | Yes, sloping can be designed discretionarily |
| Cuts off the Water Supply the Protection | Yes |
| Machine Dimension | 1770*1200*1150 mm |
| Package Dimension | 1900*1450*1300 mm |
| Net Weight | 300 kg |
| Gross Weight | 420 Kg |
Optional Parts | Chiller / Cylinder rotary attachment / Irregular rotary attachment /
Auto focus / Aluminium knife / Honey comb |
make a laser cutter Specification:
Packing: plywood case
Voltage : 220V/ 60Hz
Net Weight: 65KG
Laser tube power: 50W
Working size: 1300x900mm
Resolution ratio: ≤4500dpi
Laser type: hermetic CO2 glass tube
Worktable: DC -up&down table
Compatible software: CorelDraw, AutoCAD(not included in this item)
Machine Dimension:1910×1550×1050 mm
laser head to the lifting platform distance: 22.5cm

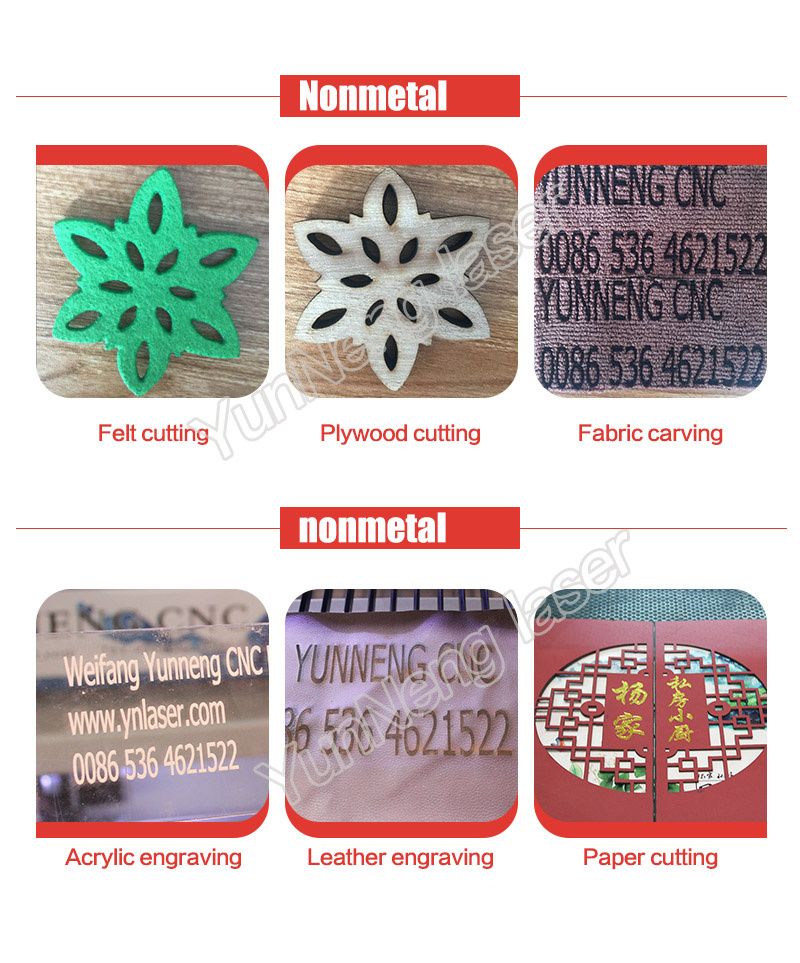

make a laser cutter Applicable Material:
| Material | Engrave | Cut |
| Wood | Yes | Yes |
| Jade | Yes | |
| Acrylic | Yes | Yes |
| Glass | Yes | |
| Ceramic | Yes | |
| Delrin | Yes | Yes |
| Cloth | Yes | Yes |
| Leather | Yes | Yes |
| Marble | Yes | |
| Matte Board | Yes | Yes |
| Melamine | Yes | Yes |
| Paper | Yes | Yes |
| Mylar | Yes | Yes |
| Press Board | Yes | Yes |
| Rubber | Yes | Yes |
| Wood Veneer | Yes | Yes |
| Fiberglass | Yes | Yes |
| Tile | Yes | |
| Plastic | Yes | Yes |
| Cork | Yes | Yes |
| Corian | Yes | Yes |
| Ceramics | Yes | |
make a laser cutter Package Included
1x Main Body
1x Air Pump
1x Exhaust Fan
1x Smoke Pipe
1x Laser Tube
1x USB Cable
1x Power Line
1xSet Wrench
1x Water Pump
1x Accessory Bag
1x English Manual
1x CD
Warranty and other details
3 years free warranty
- Provides excellent after-sales service
Safety certificate for machine
- FDA compliant, CE certification, ISO9001 quality certification

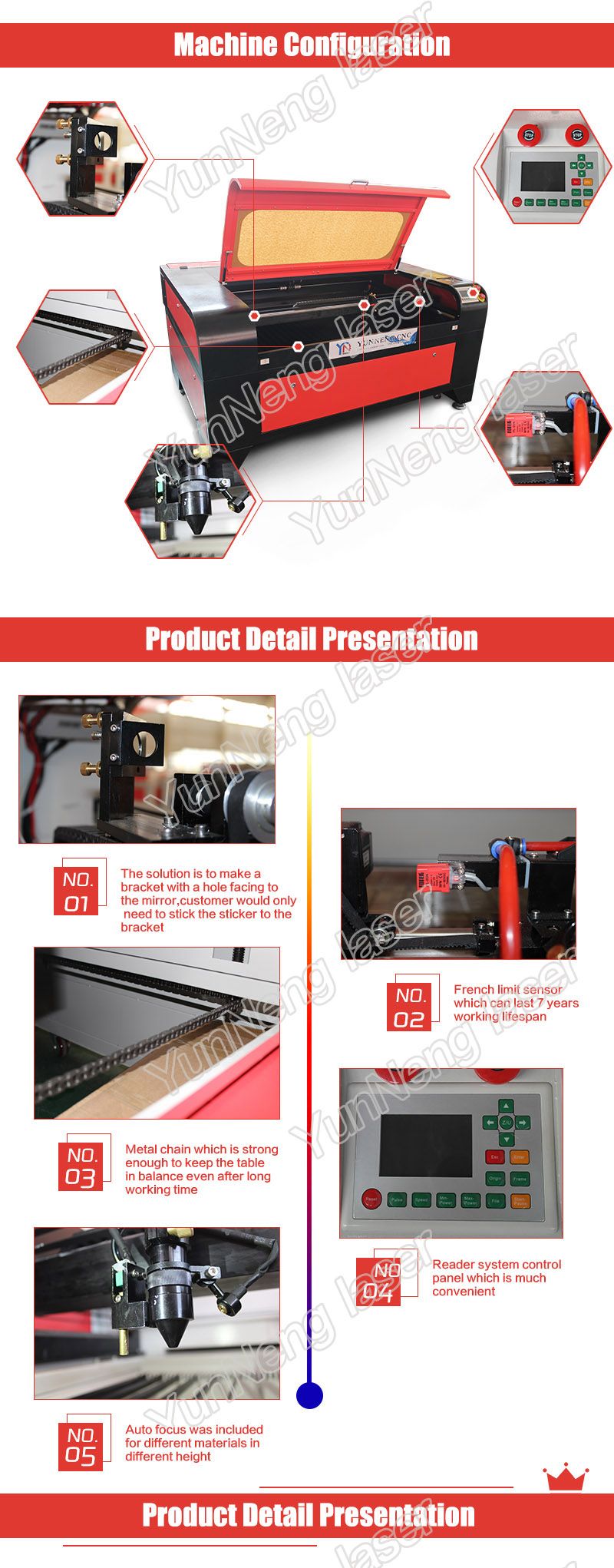

The manual up/down table
- It is suitable for different sizes of carving items
A red dot pointer
- Provides visibility and shows the engraving location.
Control panel
- Easy to use, the speed, power and other settings can adjust.
With 100W CO2 laser tube
- The engraving will be smooth and precise.
The Raster/Vector color mapping
- Allows you to change the engraving speed and power through color coding.
The reinforced and thickened machine body
- Makes transportation absolutely to be safer and longer life time.
USB connectivity and U-Flash disk supported
- USB connectivity for easy observation from your computer
- U-Flash disk for the machine will read files from memory stick,you can work even without a PC.
Water cooling and protection system
- Can reduce the laser tube's temperature and help it work for a longer time
Air assist function and exhaust fan system
- Helps the cutting surface always to clean the debris, gases and heat and makes the engraving and cutting projects a breeze
Mainboard and chip & bearing & high accuracy stepping belt
- Mainboard and chip adopt Japan imported which can control the engraving more precise
- Bearing & high accuracy stepping belt adopt Germany imported, which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 laser engraver
Supports multiple graphic formats
- PLT / DXF / BMP / JPG / GIF / PGN / TIF and others. Equipped with a DSP control system for CorelDraw/AutoCAD and other advance software, this machine is compatible with Win 7, Win 8, Vista, XP and Win 2000.
