Automatic Computer Machine Wood Cutter
| Price: |
US $ 3500-4900/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Description
laser engraver sale Specification:- Packing: plywood case
- Voltage : 220V/ 60Hz
- Net Weight: 65KG
- Laser tube power: 50W
- Working size: 1300x900mm
- Resolution ratio: ≤4500dpi
- Laser type: hermetic CO2 glass tube
- Worktable: DC -up&down table
- Compatible software: CorelDraw, AutoCAD(not included in this item)
- Machine Dimension:1910×1550×1050 mm
- laser head to the lifting platform distance: 22.5cm

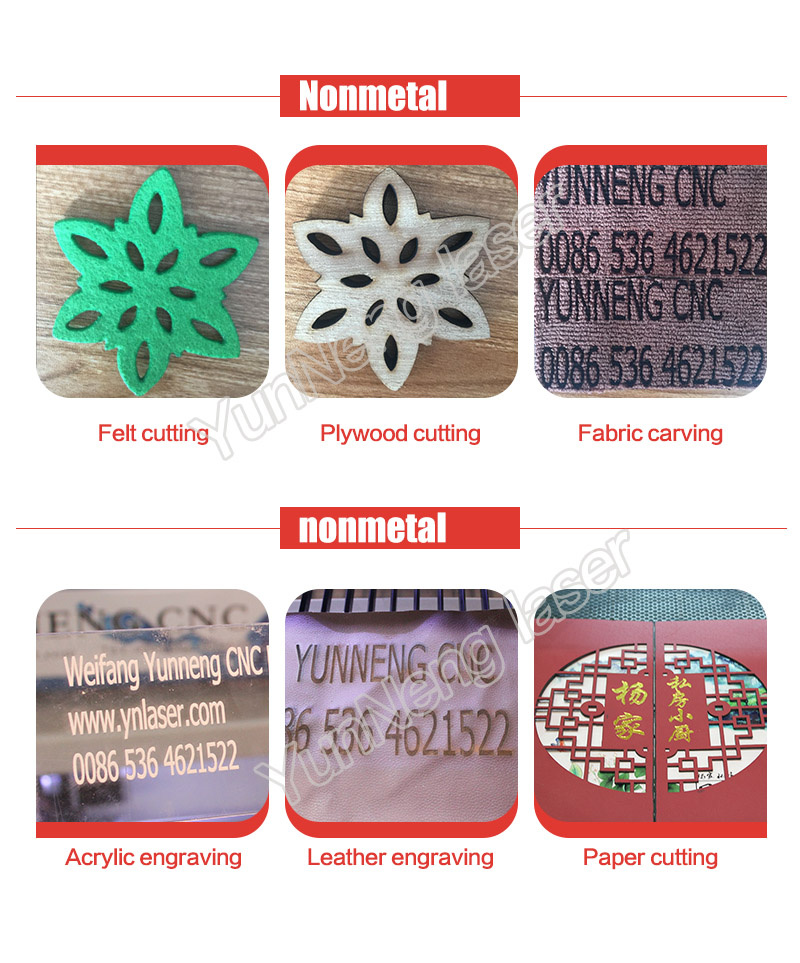

laser engraver sale Applicable Material:| Material | Engrave | Cut |
| Wood | Yes | Yes |
| Jade | Yes | |
| Acrylic | Yes | Yes |
| Glass | Yes | |
| Ceramic | Yes | |
| Delrin | Yes | Yes |
| Cloth | Yes | Yes |
| Leather | Yes | Yes |
| Marble | Yes | |
| Matte Board | Yes | Yes |
| Melamine | Yes | Yes |
| Paper | Yes | Yes |
| Mylar | Yes | Yes |
| Press Board | Yes | Yes |
| Rubber | Yes | Yes |
| Wood Veneer | Yes | Yes |
| Fiberglass | Yes | Yes |
| Tile | Yes | |
| Plastic | Yes | Yes |
| Cork | Yes | Yes |
| Corian | Yes | Yes |
| Ceramics | Yes | |
machine wood cutter Package Included- 1x Main Body
- 1x Air Pump
- 1x Exhaust Fan
- 1x Smoke Pipe
- 1x Laser Tube
- 1x USB Cable
- 1x Power Line
- 1xSet Wrench
- 1x Water Pump
- 1x Accessory Bag
- 1x English Manual
- 1x CD
| (01)Laser Engraving software Package (English Version) |
| (02) User Manual (English Version) |
| (03) Air exhaust fan |
| (04) Air Pump |
| (05) Communication cable and USB cable |
| (06) 3 Reflect lens (installed in the machine) |
| laser engraver sale | |
| Product Type | laser engraver sale |
| Model | YN-1290 |
| Effective area | 1200*900mm |
| Laser power | 100w |
| Laser type | Beijing EFR,RECI |
| Cooling mode | Water cooling |
| Engraving scanning speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Laser energy control | 1-100% software setting |
| Mini-shaping character | Chinese character2.0*2.0mm,English1.0*1.0mm |
| Max-scanning precision | 4500DPI |
| Positioning precision | 0.01mm |
| Supported graphic format | DSP PLT BMP DXF AI |
| Operating system | Windows98/ME/2000/XP/VISTA/2007 |
| power | AC110V-220V+10%,50-60HZ |
| Driving system | Stepper motor |
Warranty and other details- 2 years free warranty
- Provides excellent after-sales service - Safety certificate for machine
- FDA compliant, CE certification, ISO9001 quality certification - The manual up/down table
- It is suitable for different sizes of carving items - A red dot pointer
- Provides visibility and shows the engraving location. - Control panel
- Easy to use, the speed, power and other settings can adjust. - With 100W CO2 laser tube
- The engraving will be smooth and precise. - The Raster/Vector color mapping
- Allows you to change the engraving speed and power through color coding. - The reinforced and thickened machine body
- Makes transportation absolutely to be safer and longer life time. - USB connectivity and U-Flash disk supported
- USB connectivity for easy observation from your computer
- U-Flash disk for the machine will read files from memory stick,you can work even without a PC. - Water cooling and protection system
- Can reduce the laser tube's temperature and help it work for a longer time - Air assist function and exhaust fan system
- Helps the cutting surface always to clean the debris, gases and heat and makes the engraving and cutting projects a breeze - Mainboard and chip & bearing & high accuracy stepping belt
- Mainboard and chip adopt Japan imported which can control the engraving more precise
- Bearing & high accuracy stepping belt adopt Germany imported, which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 laser engraver - Supports multiple graphic formats
- PLT / DXF / BMP / JPG / GIF / PGN / TIF and others. Equipped with a DSP control system for CorelDraw/AutoCAD and other advance software, this machine is compatible with Win 7, Win 8, Vista, XP and Win 2000.
Weifang Yunneng CNC Equipments Co., Ltd is a new and high technology enterprise in China. Our company is specialized in computer software development and technology transfer, laser equipment. Undertake precise laser processing business.
Relying on the China from universities and research institutions, we are the main business agent of the optical equipment such as: Metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine, CNC router channel letter bending machine and vacuum forming machine. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones, decorations, plastics, glass industry and others.
Yunneng insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania.
Our success depends entirely on the satisfaction of our customers. Ensuring that you are completely happy and comfortable with your machine is always our first priority. We work tirelessly to make sure that your experience with our laser is always both professional.
