8G/M2 to 300G/M2 Galvanized or PVC Coated Hexagonal and Chicken Wire Mesh

Name: 8G/M2 to 300G/M2 Galvanized or PVC Coated Hexagonal and Chicken Wire Mesh
Brand: tool-buy.com
SKU: 727381412
Availability: InStock
Rating: 4.4 (144 reviews)

Price:	US $ 0.42-0.5/Square Meter
Min Order:	3000/Square Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Hebei Tengyuan Wire Mesh Products Co., Ltd.

Showroom Product Company Profile

Prod Model:	TY-HC001
Wire Thickness:	0.5mm to 5mm
Width Per Roll:	0.5m,1m,1.2m
Length Per Roll:	15m,20m,25m,30m
Package:	PE Film Inside, Waterproof Per Outside
Standard:	JIS, ASTM, GB
Tensile Strength:	300MPa to 500MPa
Packing Diamter:	200mm to 400mm
Zinc Coating:	40G/M2 to 300G/M2
Characters:	Anticorrosion, High Strength, Easy to Installation
Roll Weight:	5kg to 20kg
Material:	Galvanized Iron Wire
Application:	Decorative Mesh
Surface Treatment:	Galvanized
Weave Method:	Twist
Weave Technique:	Twill Weave

Product Description

electro dipped Welded Reinforcing Mesh panel (1-10mm thickness)

1:The welded wire mesh is welded by galvanized or pvc coated galvanized or pvc coated lower carbon Q195 steel wire.

2.We can produce three different model welded steel wire mesh as following:

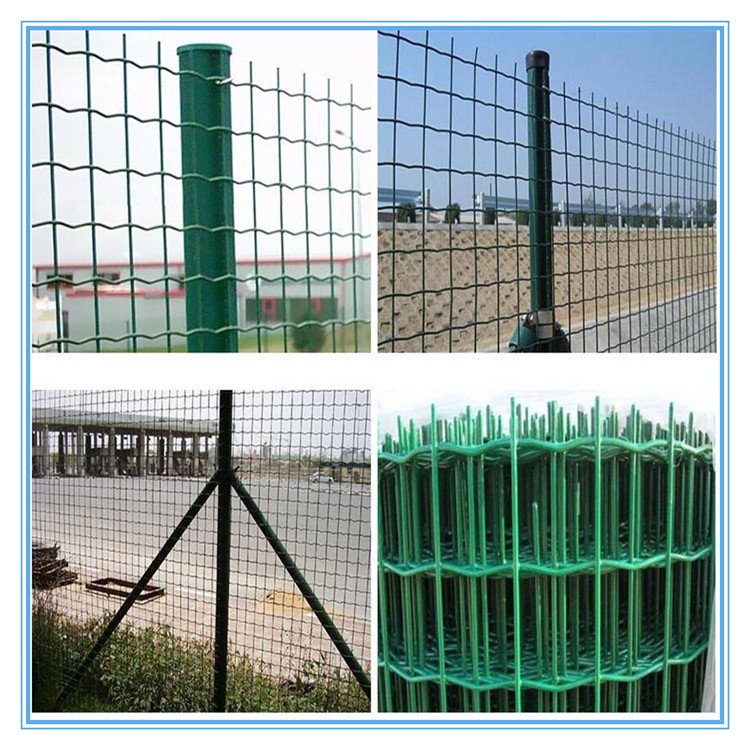

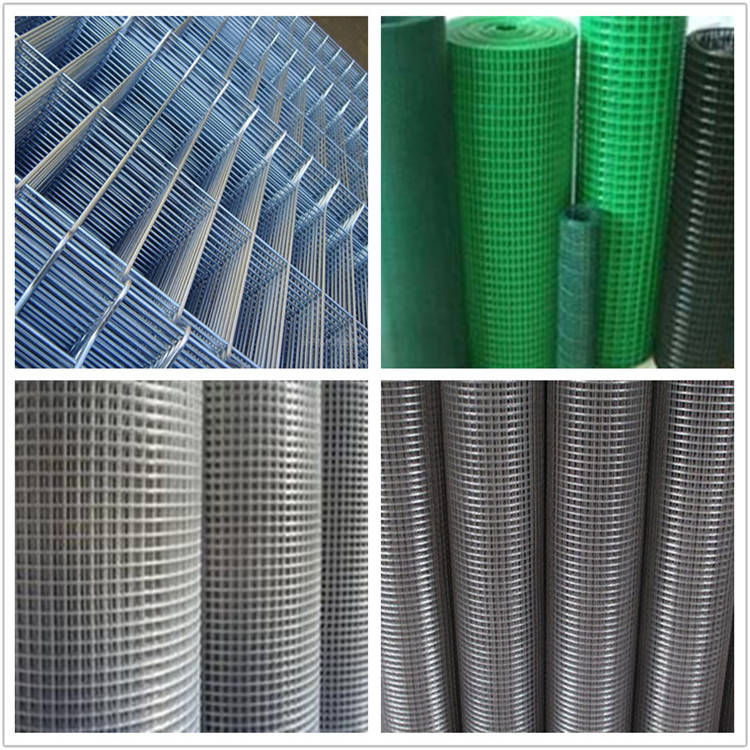

Galvanized welded wire mesh
A: Mesh size: 3/4"x3/4",1/4"X1/4",3/8"X3/8",1/2"X1",1"X1",1"X2".
B: Thickness: wire diameter :0.6mm to 2.1mm BGW14-23
C:Tensile Strength: 300~550 N/mm2.
D:Coil weight:.25kg to 100kg
E:Packing: wrapped with PE film inside,covered with waterproof paper outside.

Holland wire mesh
A: Mesh size:50X60mm,50mmX100mm,75mmX100mm,100mmX100mm.
B: Thickness: wire diameter :1.7mm to 2.5mm BGW13-16
C: Roll size:height:60cm to 200cm. Length:10m to 25m.
D:Coil weight:.25kg to 100kg
E:Packing: wrapped with PE film inside,covered with waterproof paper outside

Welded construction steel netting
A: Mesh size: line/warp spacing:33mm-500mm
Vertical/weft spacing:15mm to 300mm
B: Thickness: wire diameter :1mm to 10mm BGW10-19
C: Net size: Length :1m to 8m. Width:0.5m to 3m
D: Net weight:.25kg to 100kg
E:Packing: wrapped with PE film, loaded with wooden pallet

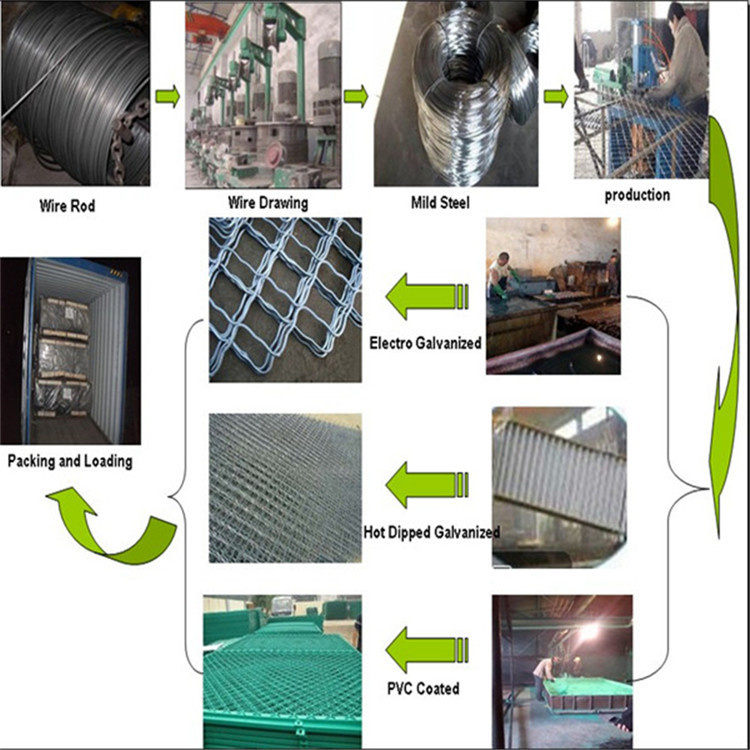

3. The processing of the galvanized wire mesh to be produced:

4. Technique of the galvanized welded wire mesh:

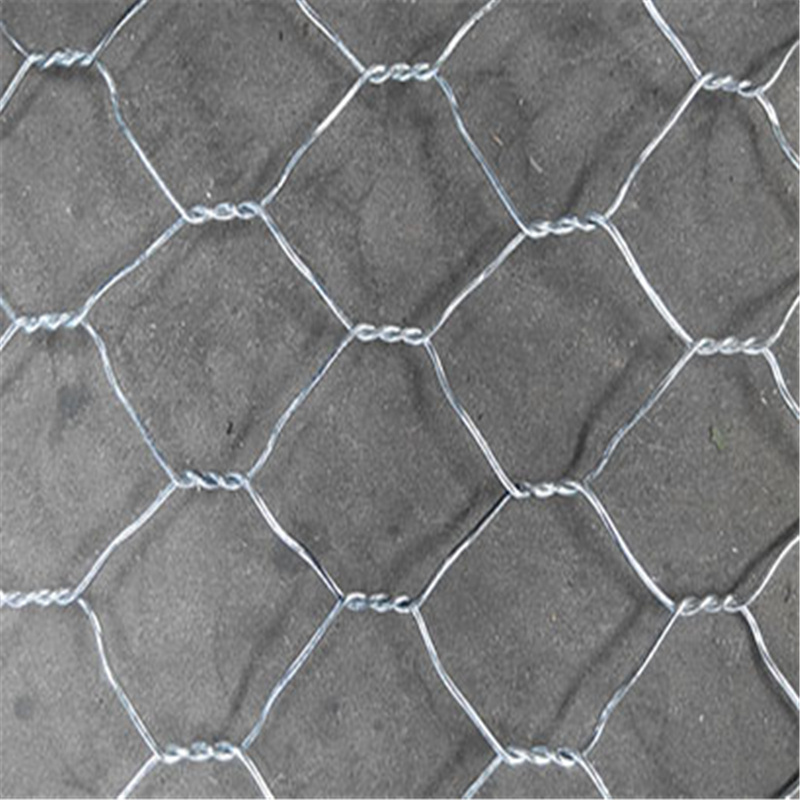

Pvc Coated fabricated hexagonal wire fence 1:The gabion steel wire mesh is made by lower carton Q195 welded wire mesh or weaving Hexagonal wire mesh. 2.We can produce two kinds of gabion steel wire mesh: Welded gabion wire mesh A: Mesh size: 3/4"x3/4",1/4"X1/4",3/8"X3/8",1/2"X1",1"X1",1"X2". B: Thickness: wire diameter :2mm to 4mm C: Side steel wire: 2.5mm to 5mm D: Binding steel wire:2.2mm E:Packing: wrapped with PE film inside,covered with waterproof paper outside. Weaved hexagonal wire mesh A: Mesh size: 60mm80mm 100mm120mm, 120mm150mm B: Thickness: wire diameter :2mm to 4mm C: Side steel wire: 2.5mm to 5mm D: Binding steel wire:2.2mm E: Size of wire mesh:2m1m1m , 3m1m1m, 4m1m*1m. 3.The gabion fabricated screen is applied to : a:Control and guide of water or flood b:Preventing of rock breaking c:Rock fall protection d:Water and soil protection e:Bridge protection f:Strengthening structure of soil g:Protection engineering of seaside area 4.The gabion steel wire netting has the advantage of : a:Economic. Just fill the stone into the gabions and seal it. b:Simple installation. No special technology needed. c:Weather proof under natural destroy, corrosion resistant. d:Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment. e:Good permeation can prevent the damage by hydrostatic. f:Less transport freight. It can be folded together for transport and further installation. g:No collapse even under big scope of deforming. 5.Package and Loading conditions of gabion iron wire netting: a: package: bulk packing or wooden pallet b: loading quantity:7 to 10 tons for 20ft ,20 tons for 40HQ container.. 6.Other products we provide: galvanized barbed wire mesh, fiberglass wire cloth. Galvanized or pvc coated welded wire mesh. Window screening or netting. Gabion box mesh, security fence and posts. Crimped wire mesh,chain link wire net, hexagonal wire mesh, square wire netting and roasted wire mesh, filter wire netting. Stainless wire mesh. 7. Our factory and exhibition : 8.The contact information: company name: Anping tangbang wire mesh co.ltd Hebei tengyuan wire mesh product co.,ltd contact person: Bruce hao 0086-15131651179 Tel:0086-0311-85806669 Website: www.wiremesh.com

5.Application of the galvanized welde wire mesh:
They are usually applied to industrial, agriculture, farming, construction, mining, transportation,like the machine protective cover, animal fencing, decorative frame, different steel baskets. Construction partition fencing.

6. The character and advantage of the galvanize wire mesh we produced:
a: lower cost and higher strength tensile
b: anticorrosion and anti acid because of higher zinc coating and pvc power
c: welding is very firmly, with higher strength
d: widely used for construction, agriculture,industrial and transporation, mining.

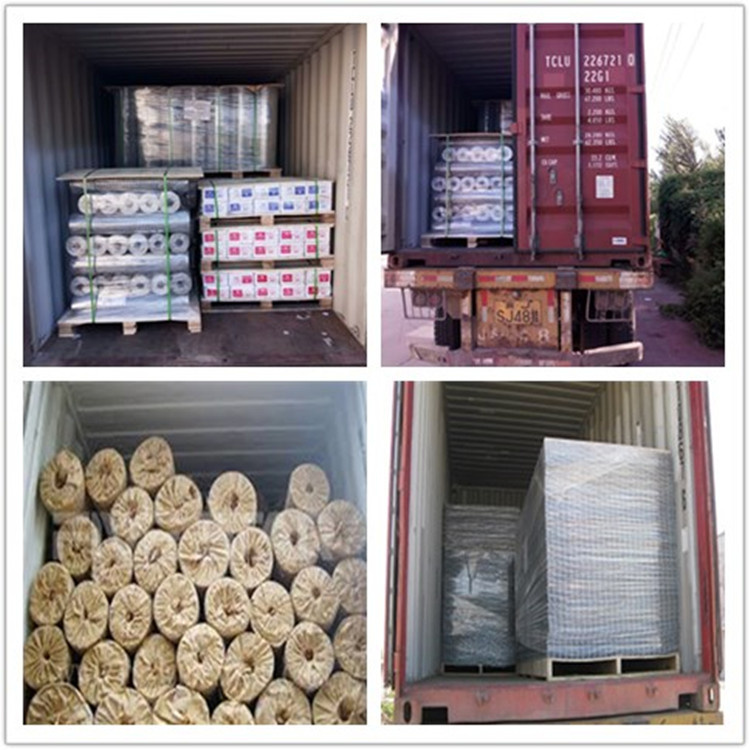

7.Package and loading of the welded wire mesh:
a: Package: with pe film covered inside, with waterproof paper outsied.
b:Loading conditions: about 8-15 tons for 20ft container ,20-25 tons for 40HQ container

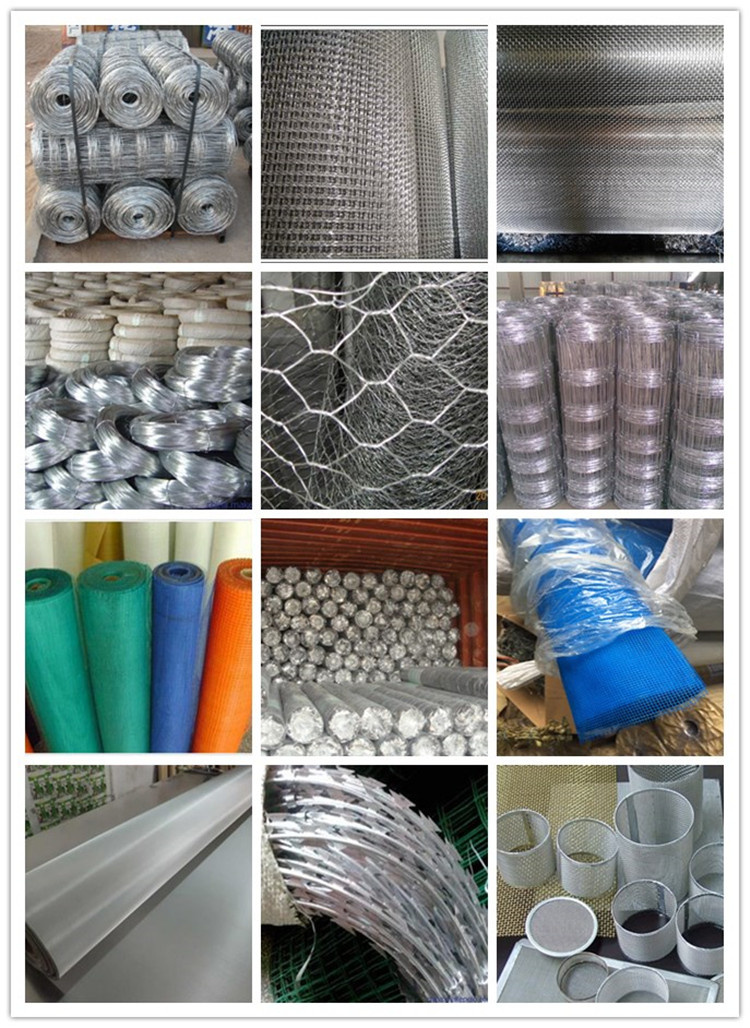

8.Other products we provide:
galvanized barbed wire mesh, fiberglass wire cloth. Galvanized or pvc coated welded wire mesh. Window screening or netting. Gabion box mesh, security fence and posts. Crimped wire mesh,chain link wire net, hexagonal wire mesh, square wire netting and roasted wire mesh, filter wire netting. Stainless wire mesh.

9 Our factory and our customer of the galvanized welded wire mesh :

10. The contact of our company and me:
company name: Anping tangbang wire mesh co.ltd
Hebei tengyuan wire mesh product co.,ltd
contact person: Bruce hao
:0086-15131651179
Tel:0086-0311-85806669
Website: www.wiremesh.com

Operating since 1996

Established in 1996, Hebei Tengyuan Wire Mesh Products Co. Ltd is located in Anping County, Hebei Province, famous for wire mesh in China. As one of the leading professional manufacturers of wire mesh and fence products in China, our factory is specialized in production of metal wire, metal wire mesh and fencing series with a long history. Tengyuan is well prepared through its efforts over the past 15 years, and has built itself into a superb professional manufacturer and seller across mainland China.

Meeting ISO 9001: 2008 and ISO 14000 Standards

We are capable of providing top-quality wire-mesh, and fence products and services for purchasers from over 100 countries and regions. We adopt updated technology and exquisite process while implementing exquisite and sensible process flow. We are one of the leading companies to secure validation of ISO 9001: 2008 and ISO 14000. We have the complete testing and measuring equipment, ensuring the stable and reliable quality of our products. In one word, we are ready to supply our customers with good quality products and service in accordance with their requirements.
