| Prod Model: |
john002 |
| Use: |
Cage,Gabion,Fence |
| Sureface Treatment: |
Electro Galvanized,Hot Dipped Galvanized,PVC Coate |
| Width: |
0.5-2.0m |
| Length: |
10-50m |
| Wire Gauge: |
2.0-4.0mm |
| Model Number: |
Q195 |
| Material: |
Galvanized Iron Wire |
| Application: |
Decorative Mesh |
| Surface Treatment: |
Galvanized |
| Weave Method: |
Twist |
| Weave Technique: |
Plain Weave |
Product Description

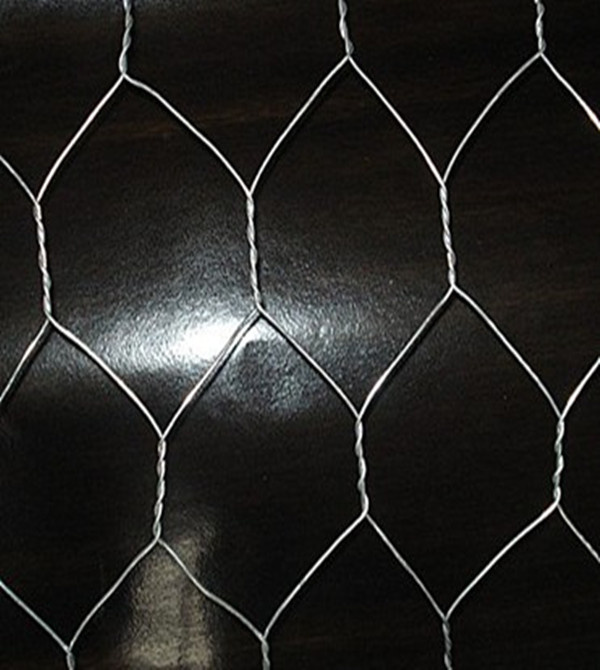

PVC coated galvanized hexagonal chicken wire mesh
Materials: low carbon steel wire and stainless steel wire
Weaving methods:
Hexagonal wire netting electro-galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
Applications: used for reinforcement, protection and heat preservation
Application areas: construction, chemical, cultivation, food processing, fishing industry and gabion box
Hole: 3/8 to 4 inches
Wire diameter: 0.38 to 3.6mm
Width: 0.2 to 2.2m
Weaving method:
Hexagonal wire netting electro galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
| Wire gauge | Mesh (inch) | Wire gauge | Mesh (inch) |
| 19# | 1" | 22# | 1/2" |
| 20# | 1" | 23# | 1/2" |
| 21# | 1" | 24# | 1/2" |
| 19# | 1 1/4" | 25# | 1/2" |
| 20# | 1 1/4" | 26# | 1/2" |
| 21# | 1 1/4" | 21# | 5/8" |
| 22# | 1 1/4" | 22# | 5/8" |
| 18# | 1 1/2" | 23# | 5/8" |
| 19# | 1 1/2" | 24# | 5/8" |
| 20# | 1 1/2" | 25# | 5/8" |
| 21# | 1 1/2" | 20# | 3/4" |
| 18# | 2" | 21# | 3/4" |
| 19# | 2" | 22# | 3/4" |
| 20# | 2" | 23# | 3/4" |
| 21# | 2" | 24# | 3/4" |
| 22# | 2" | 25# | 3/4" |
