8G/M2 to 300G/M2 Galvanzied or PVC Coated Hexagonal Wire Mesh

Name: 8G/M2 to 300G/M2 Galvanzied or PVC Coated Hexagonal Wire Mesh
Brand: tool-buy.com
SKU: 727433392
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 4.7-5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Hebei Tengyuan Wire Mesh Products Co., Ltd.

Showroom Product Company Profile

Prod Model:	TY-GM001
Mesh Hole:	60mm*80mm
Wire Diameter:	2mm to 4mm
Side Steel Wire:	2.5mm to 5mm
Binding Steel Wire:	2.2mm
Size Of Wire Mesh:	2m1m1m
Steel Standard:	Lower Carton Q195
Tensile Strength:	300MPa to 500MPa
Elongation:	10%
Usage:	Protecting The Slope or The River Bank
Loading Capactity:	7 Tons to 10 Tons Per 20FT Container
Material:	Galvanized Iron Wire
Hole Shape:	Hexagonal
Mesh Size:	1 Inch
Surface Treatment:	Galvanized
Weave Technique:	Plain Weave
Application:	Cages
Color:	Silver
Type:	Wire Mesh
Certification:	ISO9001
Condition:	New

Product Description

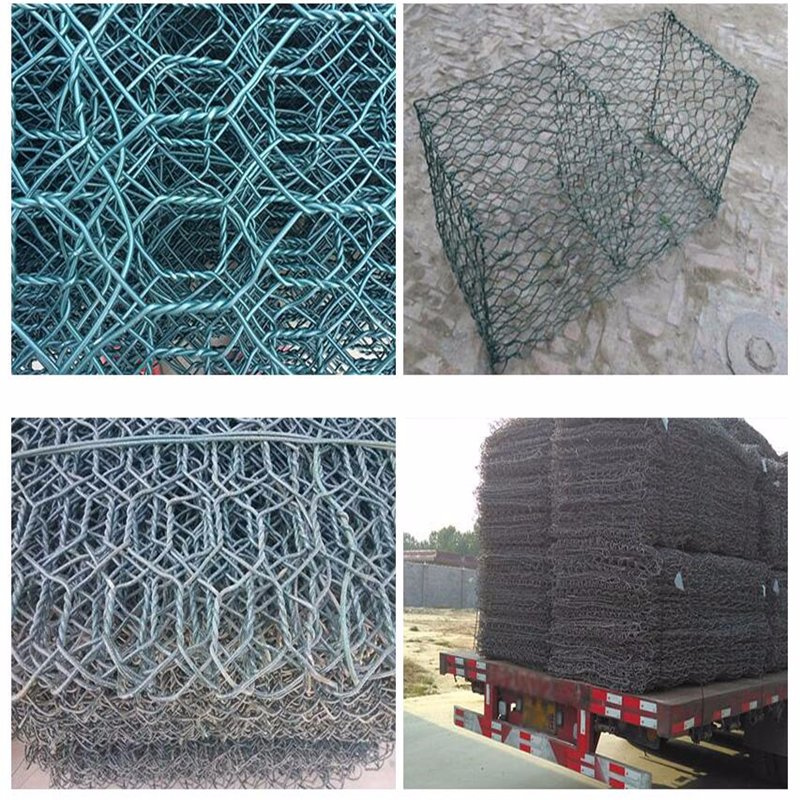

8G/M2 to 300G/M2 Galvanzied or PVC Coated hexagonal wire mesh

1:The gabion steel wire mesh is made by lower carton Q195 welded wire mesh or weaving
Hexagonal wire mesh.

2.We can produce two kinds of gabion steel wire mesh:
Welded gabion wire mesh
A: Mesh size: 3/4"x3/4",1/4"X1/4",3/8"X3/8",1/2"X1",1"X1",1"X2".
B: Thickness: wire diameter :2mm to 4mm
C: Side steel wire: 2.5mm to 5mm
D: Binding steel wire:2.2mm
E:Packing: wrapped with PE film inside,covered with waterproof paper outside.

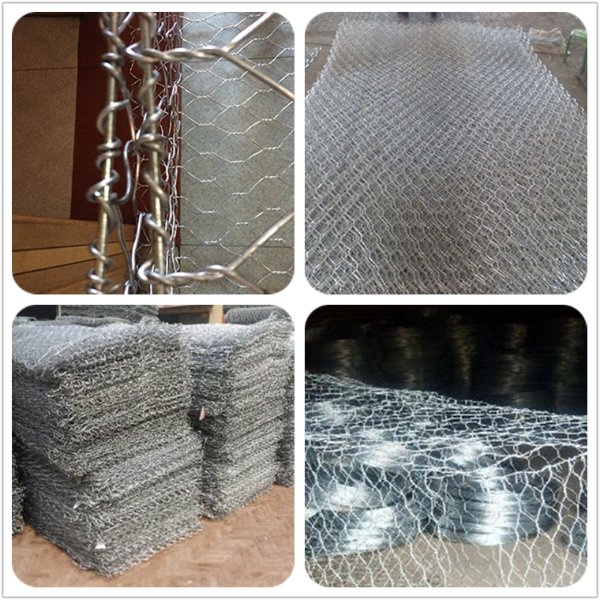

Weaved hexagonal wire mesh
A: Mesh size: 60mm*80mm 100mm*120mm, 120mm*150mm
B: Thickness: wire diameter :2mm to 4mm
C: Side steel wire: 2.5mm to 5mm
D: Binding steel wire:2.2mm
E: Size of wire mesh:2m*1m*1m , 3m*1m*1m, 4m*1m*1m.

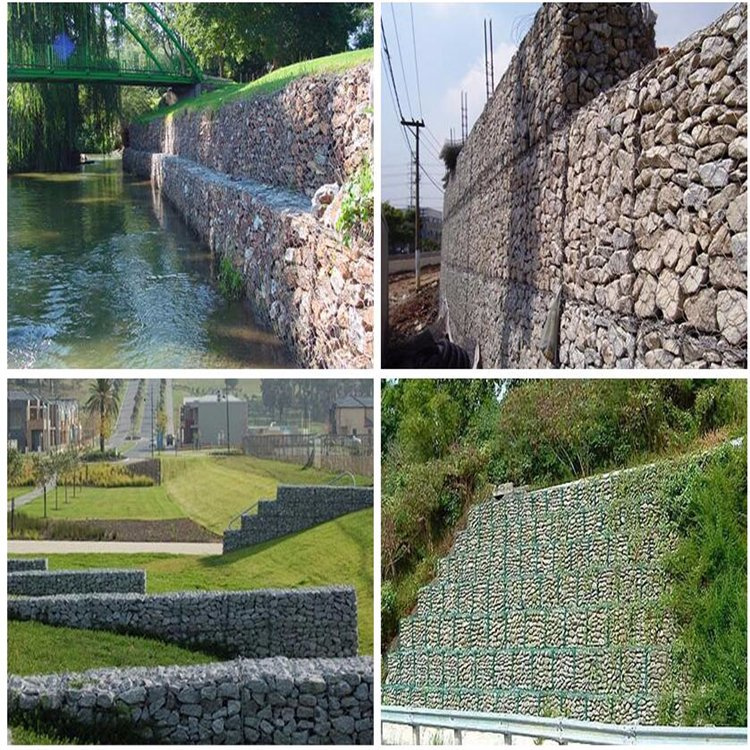

3.The gabion fabricated screen is applied to :
a:Control and guide of water or flood
b:Preventing of rock breaking
c:Rock fall protection
d:Water and soil protection
e:Bridge protection
f:Strengthening structure of soil
g:Protection engineering of seaside area

4.The gabion steel wire netting has the advantage of :
a:Economic. Just fill the stone into the gabions and seal it.
b:Simple installation. No special technology needed.
c:Weather proof under natural destroy, corrosion resistant.
d:Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
e:Good permeation can prevent the damage by hydrostatic.
f:Less transport freight. It can be folded together for transport and further installation.
g:No collapse even under big scope of deforming.

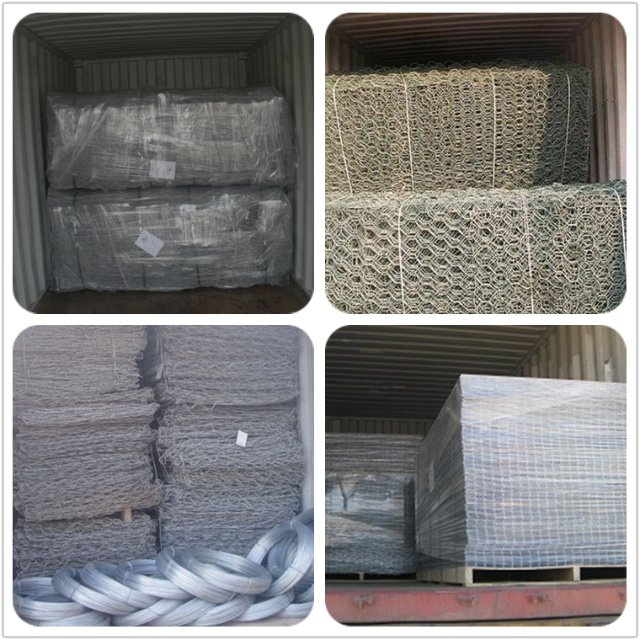

5.Package and Loading conditions of gabion iron wire netting:
a: package: bulk packing or wooden pallet
b: loading quantity:7 to 10 tons for 20ft ,20 tons for 40HQ container..

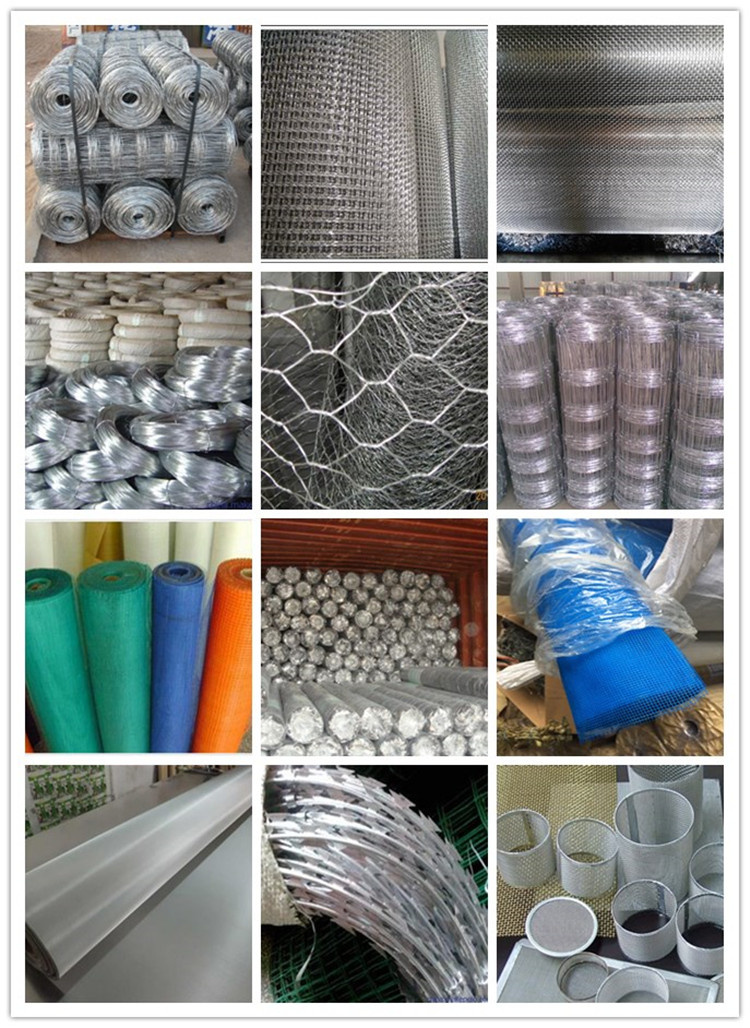

6.Other products we provide:
galvanized barbed wire mesh, fiberglass wire cloth. Galvanized or pvc coated welded wire mesh. Window screening or netting. Gabion box mesh, security fence and posts. Crimped wire mesh,chain link wire net, hexagonal wire mesh, square wire netting and roasted wire mesh, filter wire netting. Stainless wire mesh.

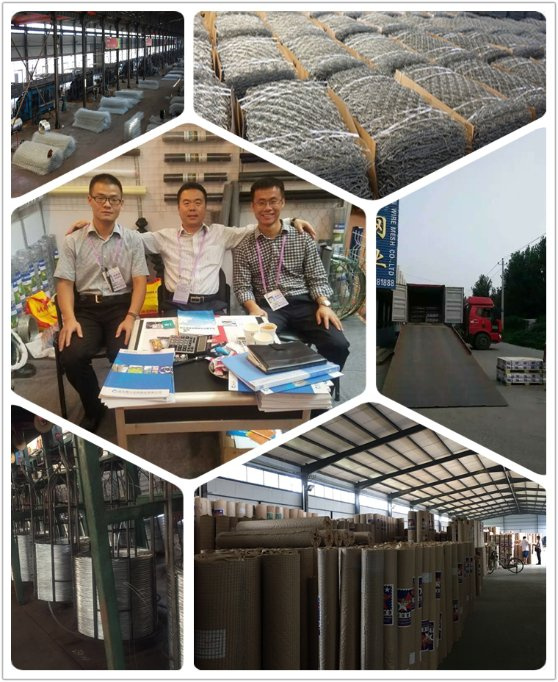

7. Our factory and exhibition :

8.The contact information:
company name: Anping tangbang wire mesh co.ltd
Hebei tengyuan wire mesh product co.,ltd
contact person: Bruce hao
0086-15131651179
Tel:0086-0311-85806669
Website: www.wiremesh.com

Operating since 1996

Established in 1996, Hebei Tengyuan Wire Mesh Products Co. Ltd is located in Anping County, Hebei Province, famous for wire mesh in China. As one of the leading professional manufacturers of wire mesh and fence products in China, our factory is specialized in production of metal wire, metal wire mesh and fencing series with a long history. Tengyuan is well prepared through its efforts over the past 15 years, and has built itself into a superb professional manufacturer and seller across mainland China.

Meeting ISO 9001: 2008 and ISO 14000 Standards

We are capable of providing top-quality wire-mesh, and fence products and services for purchasers from over 100 countries and regions. We adopt updated technology and exquisite process while implementing exquisite and sensible process flow. We are one of the leading companies to secure validation of ISO 9001: 2008 and ISO 14000. We have the complete testing and measuring equipment, ensuring the stable and reliable quality of our products. In one word, we are ready to supply our customers with good quality products and service in accordance with their requirements.
