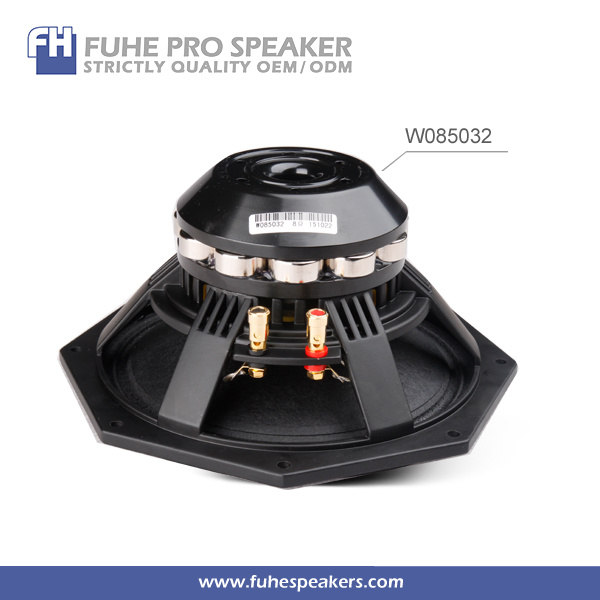

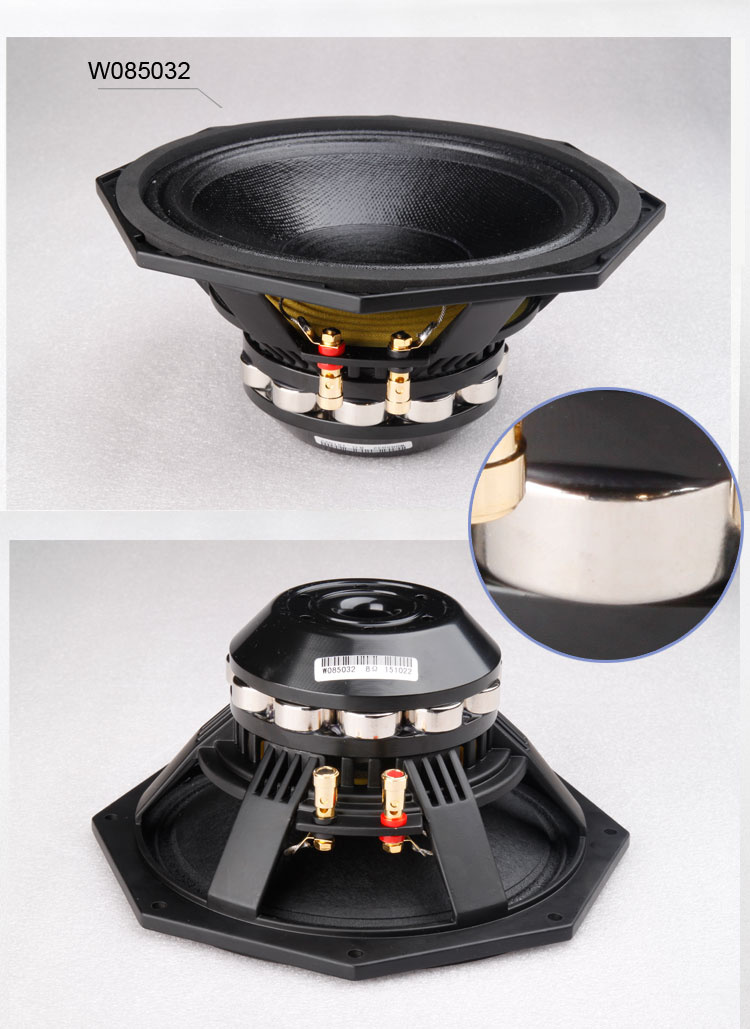

8inch Live Speaker Powered Line Array Speakers

8inch Live Speaker Powered Line Array Speakers
Price: US $ 45-55/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: W085032
Category: Speaker
Transmission Mode: Air-conduction
Cone: Paper Cone
Transducer Principle: Permanent Magnetic Speaker
Style: Wireless
WORD NChannels: 1.0
Certification: SGS
Brand: OEM/ODM

Product Description




MODELTYPE
W085032midrange
GENERAL SPECIFICATIONS
Nominal Diameter200/8mm/inch
Rated impedance8ohm
Power handing capacity150watts
Sensitivity96dB/1w/1m
Frequency RangeFs-5000Hz
Voice Coil Diameter50/2mm/inch
Voice Coil MaterialAluminium  Edge wound
Number of layer1
Kind of layerOutside

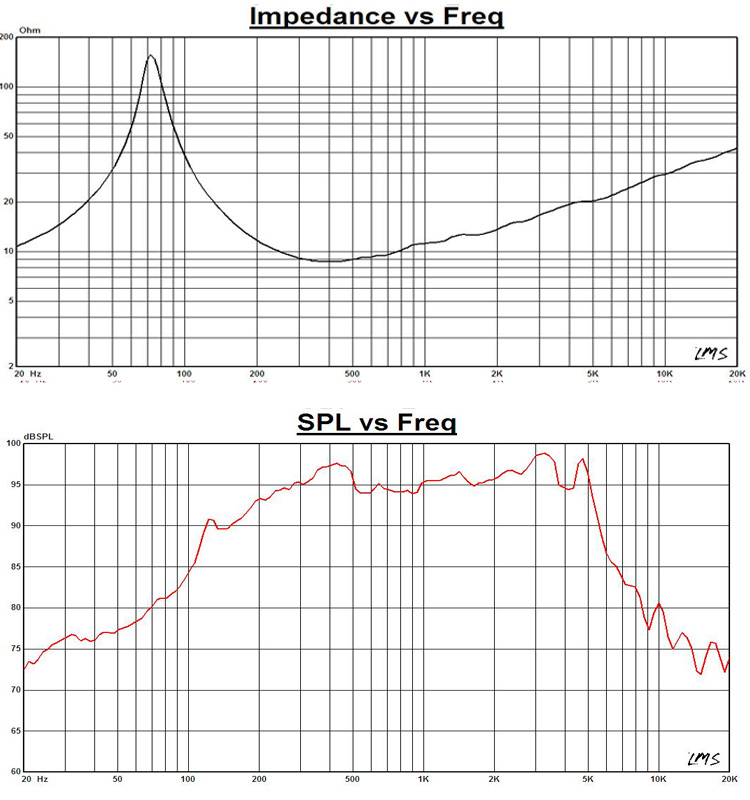

THIELE-SMALL PARAMETERS
Resonance frequencyFs72Hz
Dc resistanceRe6.8ohm
Mechanical factorQms6.2
Electrical factorQes0.28
Total factorQts0.27
BL factorBL15.4T.M
Effective Moving massMms21.2g
Effective Cas air loadVas16.2liters
Effective piston areaSd0.023m^2
MOUNTING INFORMATION
Overall DiameterΦ208*225/Φ8.2*8.86mm/inch
Bolt Circle DiameterΦ208/Φ8.19mm/inch
Bolt Hole Diameter8-Φ5.2/8-Φ0.2mm/inch
Mount Baffle Cut-outΦ186/Φ7.32mm/inch
Depth105/4.13mm/inch
SHIPPING INFORMATION
Net Weight         (1 unit)2.5kg
Shipping Weight  (1 unit)3kg
Package Size       (4 units)480X245X286mm





Guangzhou Fuhe Electronic is leading designer and manufacturer of good quality stage speaker in China since 1997.

It had big invested much manpower and money in R&D. It supplied OEM/ODM projects to most of the famous professional audio brands in the market. It provides a well-balanced line of MID low frequency speakers that range from 5" to 32", as well as a very complete line of high frequency drivers, coaxial components.

Professional technique/professional quality is our culture.

Key material parts are imported from USA, UK, Malaysia, Thailand etc.

From nightclubs to stadiums, to concert halls around the world, our speakers are chosen based on their reliability, consistency, and most of all for their outstanding sound quality.
