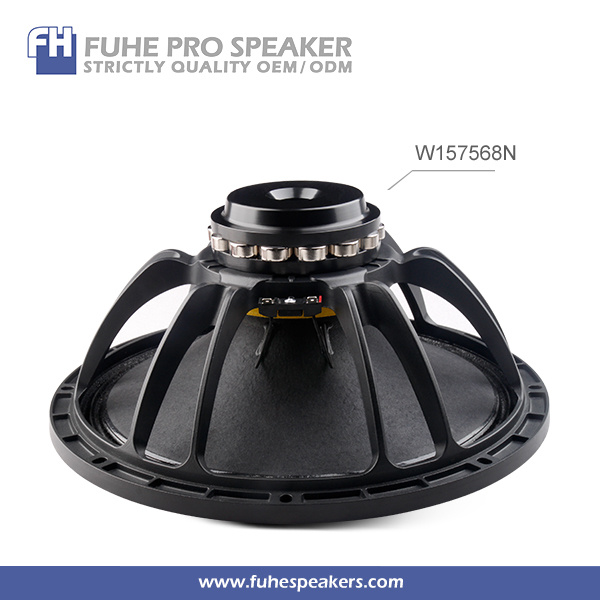

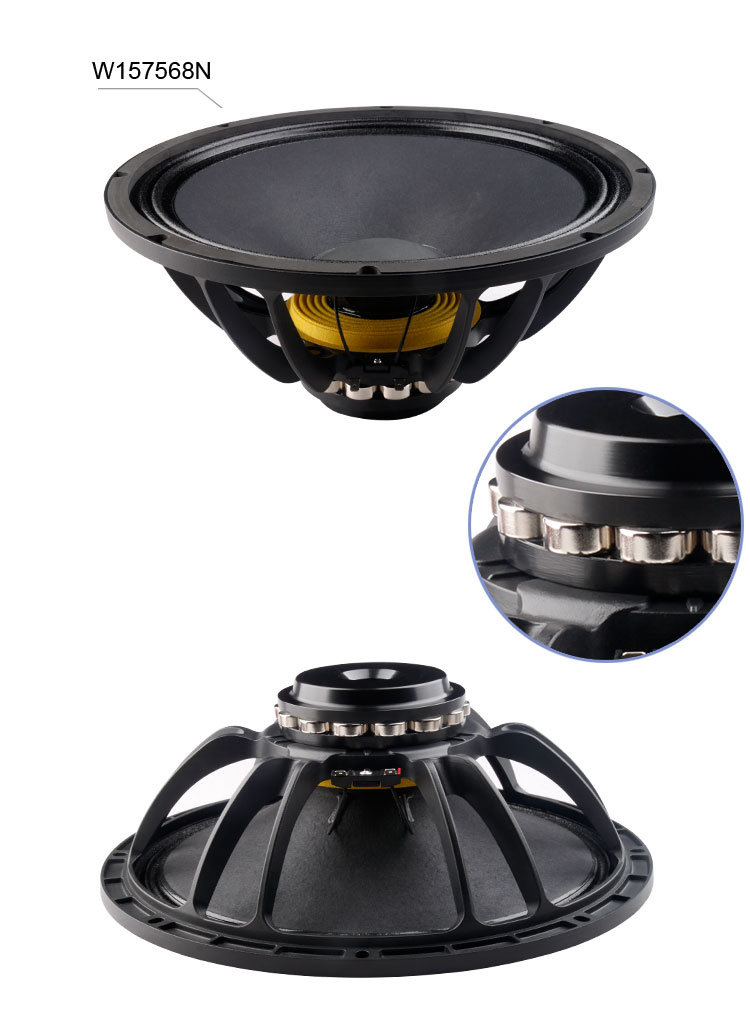

W157568n Hoparlor 15"/Bazooka Speaker/Low Price Speakers

W157568n Hoparlor 15
Price: US $ 85-95/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: W157568N
Category: Speaker
Transmission Mode: Air-conduction
Cone: Paper Cone
Transducer Principle: Permanent Magnetic Speaker
Style: Wireless
WORD NChannels: 1.0
Certification: SGS
Brand: OEM/ODM

Product Description




MODELTYPE
W157568NMID-BASS
GENERAL SPECIFICATIONS
Nominal Diameter380/15mm/inch
Rated impedance8ohm
Power handing capacity400watts
Sensitivity99.5dB/1w/1m
Frequency RangeFs-3000Hz
Voice Coil Diameter75/3mm/inch
Voice Coil MaterialCopper
Number of layer2
Kind of layerInside/Outside
THIELE-SMALL PARAMETERS
Resonance frequencyFs40Hz
Dc resistanceRe5.8ohm
Mechanical factorQms3.56
Electrical factorQes0.26
Total factorQts0.25
BL factorBL21T.M
Effective Moving massMms80.2g
Effective Cas air loadVas205liters
Effective piston areaSd0.0855m^2
MOUNTING INFORMATION
Overall Diameterφ394/φ15.51mm/inch
Bolt Circle Diameterφ374/φ14.72mm/inch
Bolt Hole Diameter8-7*10/8-0.28*0.39mm/inch
Mount Baffle Cut-out358/14.09mm/inch
Depth169/6.65mm/inch
SHIPPING INFORMATION
Net Weight                (1 units)4.5kg
Shipping Weight        (1 units)5.8kg
Package Size              (1 units)425*410*210mm





Guangzhou Fuhe Electronic is leading designer and manufacturer of good quality stage speaker in China since 1997.

It had big invested much manpower and money in R&D. It supplied OEM/ODM projects to most of the famous professional audio brands in the market. It provides a well-balanced line of MID low frequency speakers that range from 5" to 32", as well as a very complete line of high frequency drivers, coaxial components.

Professional technique/professional quality is our culture.

Key material parts are imported from USA, UK, Malaysia, Thailand etc.

From nightclubs to stadiums, to concert halls around the world, our speakers are chosen based on their reliability, consistency, and most of all for their outstanding sound quality.
