W106568n 10inch Neodymium Speaker Full Range/Speaker Guangdong/OEM PRO Audio Manufacturer

W106568n 10inch Neodymium Speaker Full Range/Speaker Guangdong/OEM PRO Audio Manufacturer
Price: US $ 46-64/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: W106568N
Category: Speaker
Transmission Mode: Air-conduction
Cone: Paper Cone
Transducer Principle: Permanent Magnetic Speaker
Style: Wireless
WORD NChannels: 1.0
Certification: SGS
Brand: OEM/ODM

Product Description

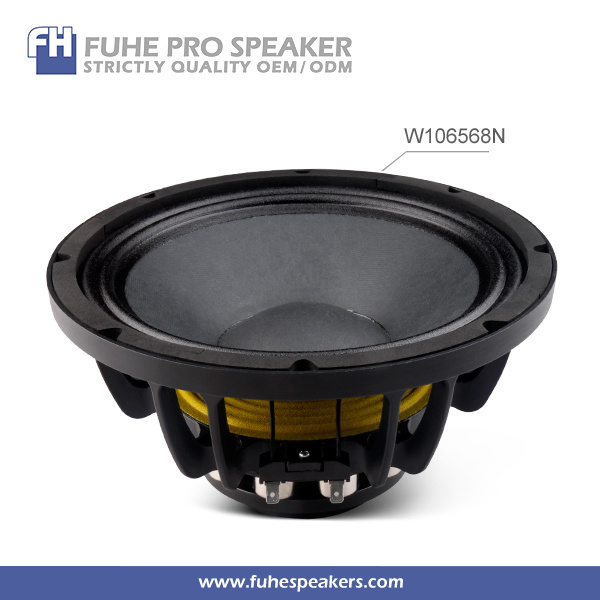

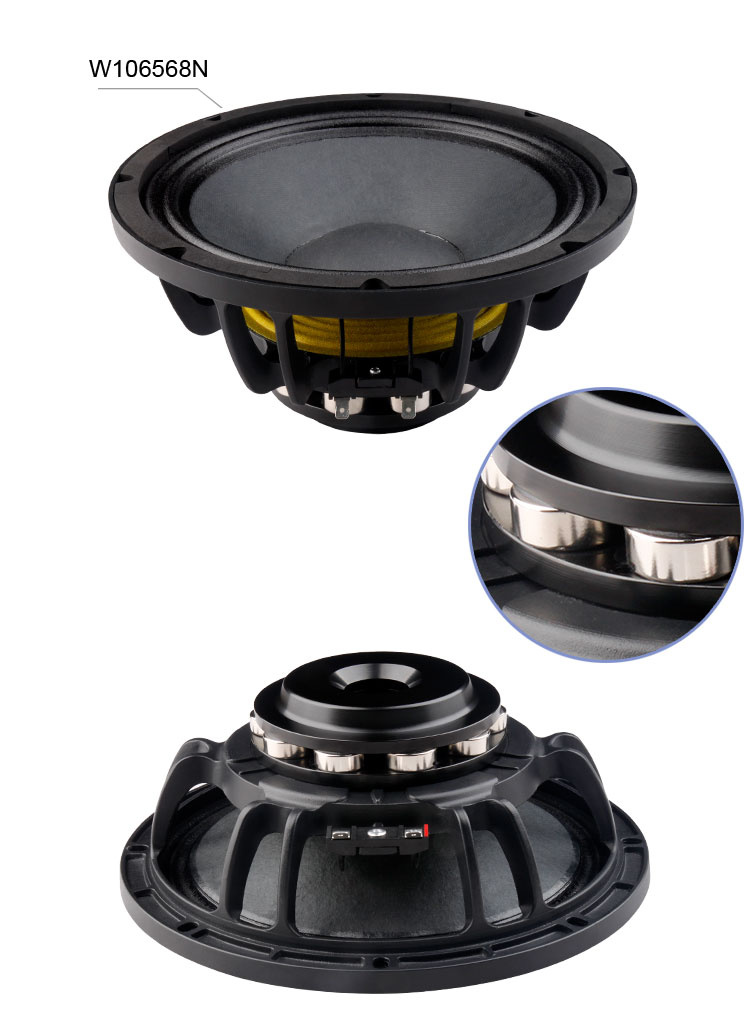

W106568n 10inch Neodymium Speaker Full Range/Speaker Guangdong/OEM PRO Audio Manufacturer
MODELTYPE
W106568NMID-BASS
GENERAL SPECIFICATIONS
Nominal Diameter250/10mm/inch
Rated impedance8ohm
Power handing capacity250watts
Sensitivity97dB/1w/1m
Frequency RangeFs-4000Hz
Voice Coil Diameter65/2.5mm/inch
Voice Coil MaterialCopper
Number of layer2
Kind of layerInside/Outside
THIELE-SMALL PARAMETERS
Resonance frequencyFs58Hz
Dc resistanceRe5.4ohm
Mechanical factorQms6.58
Electrical factorQes0.3
Total factorQts0.29
BL factorBL14.5T.M
Effective Moving massMms32.3g
Effective Cas air loadVas40liters
Effective piston areaSd0.035m^2
MOUNTING INFORMATION
Overall DiameterΦ262/Φ10.31mm/inch
Bolt Circle DiameterΦ245/Φ9.65mm/inch
Bolt Hole Diameter8-7*9/8-0.28*0.35mm/inch
Mount Baffle Cut-out233/9.21mm/inch
Depth116/4.57mm/inch
SHIPPING INFORMATION
Net Weight                (4 units)11.2kg
Shipping Weight        (4 units)12.6kg
Package Size              (4 units)500X280X300mm




Guangzhou Fuhe Electronic is leading designer and manufacturer of good quality stage speaker in China since 1997.

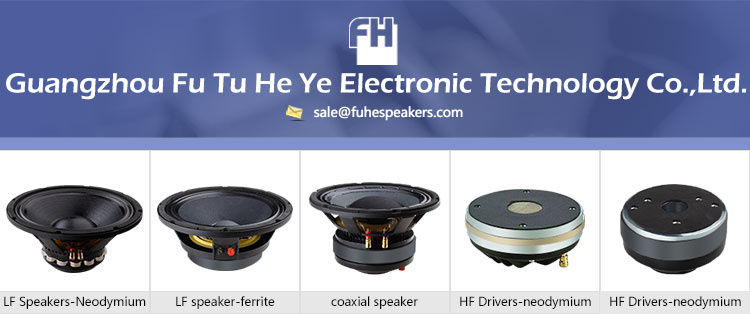

It had big invested much manpower and money in R&D. It supplied OEM/ODM projects to most of the famous professional audio brands in the market. It provides a well-balanced line of MID low frequency speakers that range from 5" to 32", as well as a very complete line of high frequency drivers, coaxial components.

Professional technique/professional quality is our culture.

Key material parts are imported from USA, UK, Malaysia, Thailand etc.

From nightclubs to stadiums, to concert halls around the world, our speakers are chosen based on their reliability, consistency, and most of all for their outstanding sound quality.
