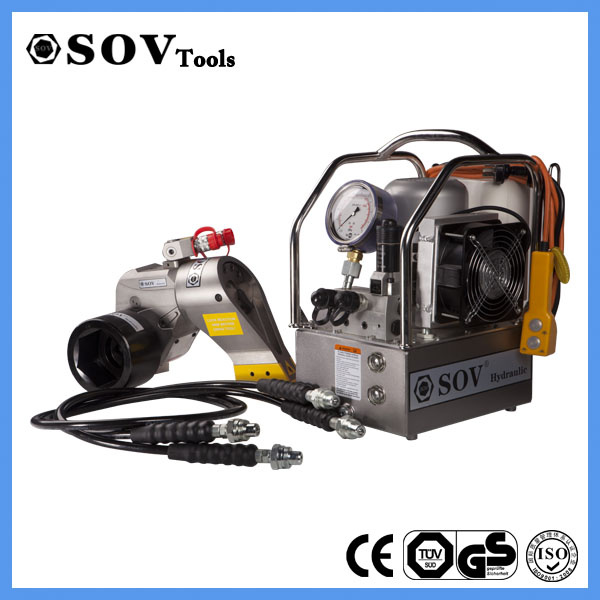

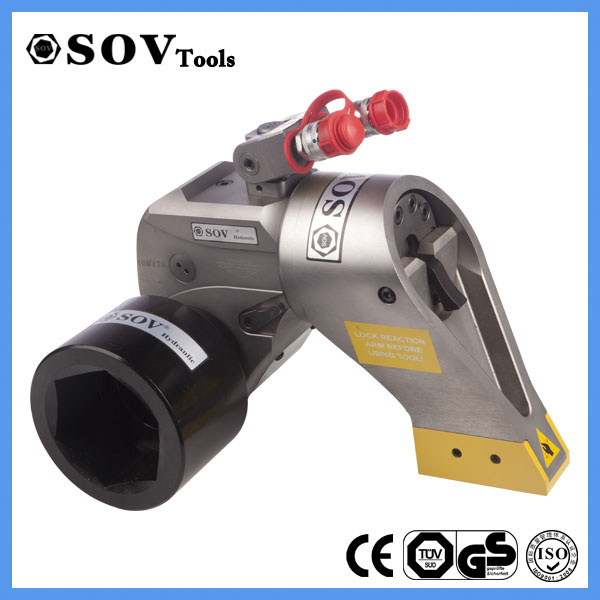

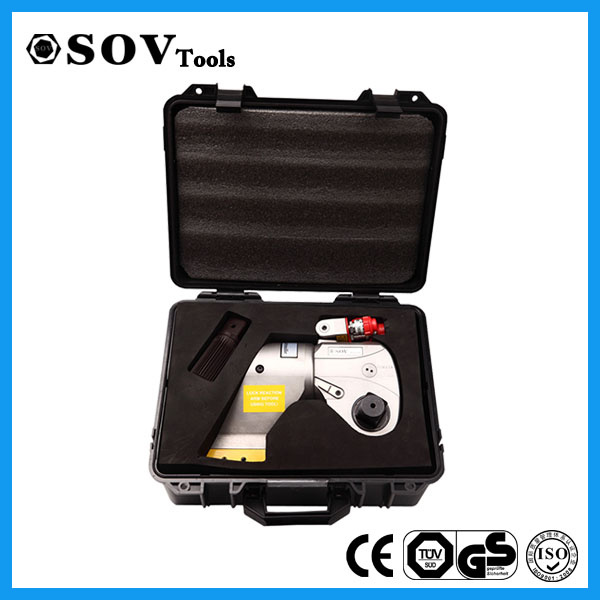

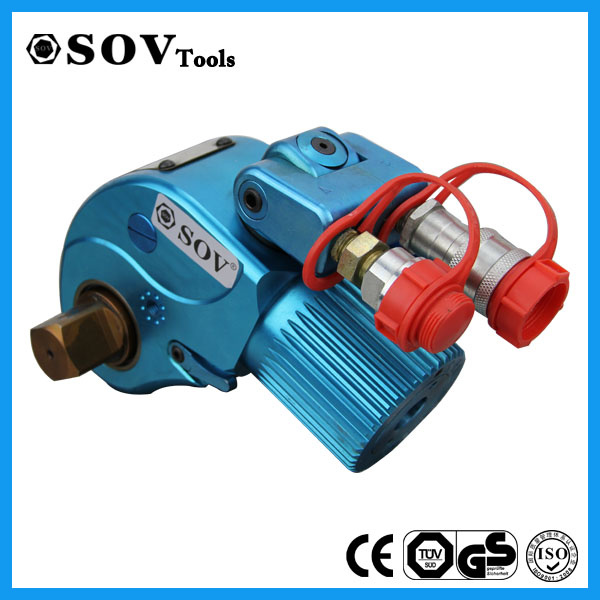

Al-Ti Alloy Square Drive Hydraulic Torque Wrench

Prod Model:	SV31LB Series
Torque Range (mm):	1550-15500
Bolt Diameter (mm):	36-72
Hex (mm):	55-105
Square Drvie Axis (Inch):	1-1/2
Max Pressure (Bar):	700
Weight (Kg):	14.5
Color:	Can Be Customized
OEM:	Yes
Warranty:	1 Year
Certificate:	Ce, ISO9001:2008
Type:	Torque Wrench
Standard:	German Type
Feature:	Ordinary
Material:	Al-Ti Alloy
Brand:	Sov
Surface Treatment:	Al-Ti Alloy
Working Mode:	Hydraulic

Product Description

This range of dedicated, lightweight, Square Drive Torque Wrenches are purposely designed for arduous make-up and break-out applications. Compact, robust and with unsurpassed reliability, these wrenches make the ideal Torque Wrench!
With operation, this is the ideal hydraulic torque wrench for both topside and subsea use. In addition to standard features normally associated with hydraulic torque tools, our torque system also provides the following benefits.

Features
1.Unique monocoque style body construction - extremely torsion resistant.
2.Super compact - greater flexibility to access limited headroom applications. Comparable lightweight alloy tools are 50% greater in width
3.Lightweight torque wrench with the reliability of an all-steel tool.
4.Fine tooth ratchet drive eliminates dangerous anti-wind up devices.
5.Accurate torque output - torsion resistant body ensures that torque output is not impaired by the characteristic high body twist associated with lightweight alloy tools under load (no piston / drive binding)
6.Careful material selection ensures long life and durability.
7.360 deg, multi-position clip-on Reaction Arm
8.Increased cycling speed through efficient internal porting, providing maximum oil flow dynamics.
9.Multi-Axis Swivel Manifold eliminates hose kinking.
10.Push button square drive release.
11.Fully enclosed drive mechanism eliminates pinch points / operator injury.
12.Corrosion resistant material for use in the harshest environment.

Technical Parameters:

Model	Torque range (mm )	Bolt diameter (mm )	Hex (mm )	Square drvie axis (inch )	Max pressure (Bar )	Weight (Kg )
SV31LB180	180-1800	16-36	24-55	3/4	700	2.3
SV31LB450	450-4510	22-48	34-75	1		4.8
SV31LB750	755-7558	27-56	41-85	1-1/2		8.1
SV31LB1000	1050-10550	30-64	46-95	1-1/2		11
SV31LB1500	1550-15500	36-72	55-105	1-1/2		14.5
SV31LB2500	2650-26500	42-90	65-110	2-1/2		26.5
SV31LB3500	3500-35000	48-100	75-145	2-1/2		34.5
SV31LB5000	4850-48500	64-120	95-170	2-1/2		48.2






Our Company
Established in 1995, sov hydraulic technology company is an professional leading manufacturer of hydraulic tools in china. Such as plc lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.


Our products have been widely sold to europe, america, south-east asia and middle east, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

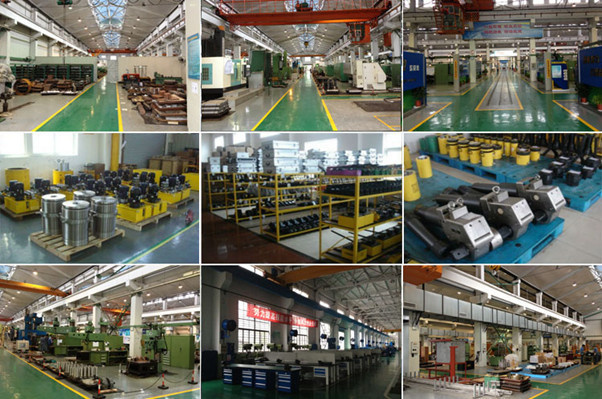

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained ce and iso9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.


We are a manufacturer in Hydraulic tools, such as:
1. Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
2. Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
3. Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
4. Hydraulic pumps, manual and electric type (max up to 4000bar);
5. Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6. Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Packing details
1. Out packing: Standard export wooden case;
2. Inner packing: With careful stretch film+ hard cardboard;

Shipping way
1. Small quantity: By international air express(dhl/fedex/ups/tnt), within 2-7days arriving;
2. Large quantity: By ocean shipping, arriving time depends on customers destination;

Delivery time
1. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock;
2. Delivery time: Prompt delivery;


Note: All items are directly from factory, we would allow you a quantity discount, so please contact with me when u gonna order, we will answer back asap.
Thanks for your attention, wish you have a nice day!
