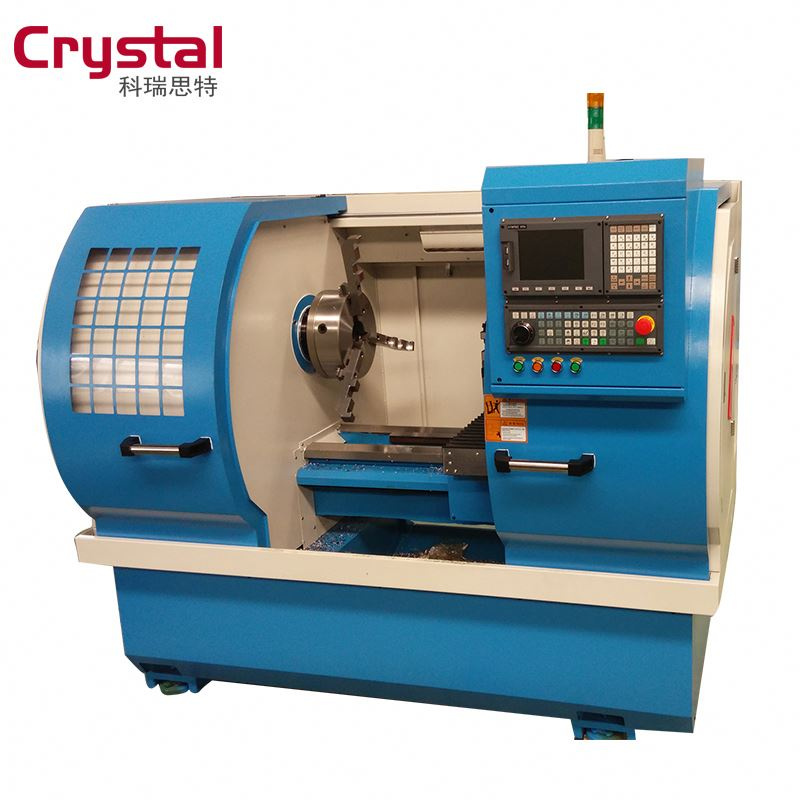

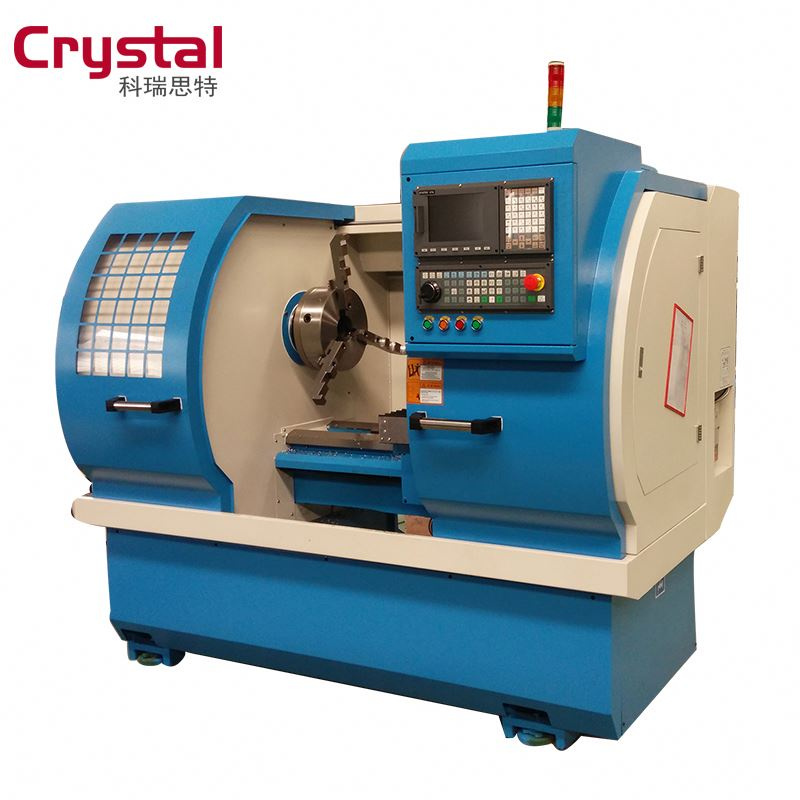

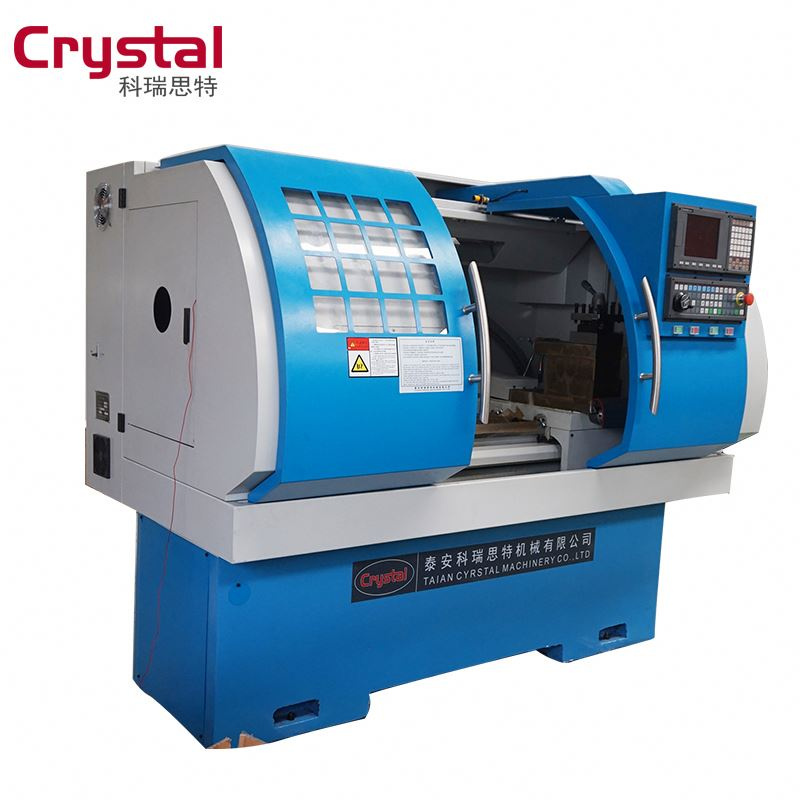

Alloy Wheel CNC Lathe Diamond Cutting Machine (AWR2840)
| Price: |
US $ 15000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
AWR2840 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC System: |
Syntec |
| Repairing Alloy Wheel: |
Max 24" |
| Max. Swig Over Bed: |
720mm |
| Max. Swig Over Cross Slide: |
540mm |
| Max.Turning Length: |
1000mm |
| Size Of The Three-Jaw Chuck: |
10' |
| Range Of Spindle Speed: |
20-1800rpm |
| Spindle Bore: |
72mm |
| Stations Of Tool Carrier: |
4 Position |
| Net Weight: |
2200kgs |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
Alloy Wheel CNC Lathe Diamond Cutting Machine (AWR2840)
Specification:
Supply repairing Alloy wheel up to Max 24"
Automated self plotting Digitization by Probe System
Easy Operate
CE Certification
Free Training video
7x24 hours email or telephone technology supply
Standard Configuration:
SYNTEC 6TA CNC control system
Touch Probe system
Automatic electronic pump lubrication
Manual 3-jaw soft chuck of 10' | ITEMS | AWR2840 |
| Max. swig over bed (mm)(inch) | Φ720(28') |
| Max. Size of alloy wheel (inch) | 24' |
| Max. swig over cross slide (mm) | Φ540 |
| Cross slide travel (mm) | 350 |
| Width of the rail (mm) | 330 |
| Length of the rail (mm) | 1320 |
| Size of the three-jaw chuck (inch) | 12' |
| Range of spindle speed (RPM) | 50~2000 |
| Spindle speed control | Automatic |
| Spindle bore (mm) | Φ60 |
| Taper of spindle bore | MT6 |
| Taper of spindle nose | A2-6 |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm,
(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min,
(X) cross 6m/min |
| Motor power | 7.5KW |
| Machine base | Whole cast iron base |
| Machine size(L×W×H) (mm³) | 2300×1750×1950 |
| Net weight | 2600kg |
Company profile:
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional
manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER. With 5, 000sqm workshops
and offices, we have more than 15 years experiences in CNC machine research and production. Our
machines have been exported more than 40 countries. We welcome all customers and friends to come toour company!
Why choose us?
1. Choose of accessories: All of accessories of our CNC machine are from famous factory. Important
parts are imported.
2. Advanced design: Professional R&D Team optimize and improve the design of our machine.
3. Multi CNC system brand: GSK, SIMENSE, FANUC,SYNTEC can be supplied as your request.
4. Global strategy: our machines have been exported more than 40 countries and win customer's high
praise.
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!
Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
