Diamond Cut CNC Rim Repair Lathe with Automatic Wrm28h

Name: Diamond Cut CNC Rim Repair Lathe with Automatic Wrm28h
Brand: tool-buy.com
SKU: 725951842
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	US $ 15000-16000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Taian Crystal Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	WRM28H
Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe
Power Source:	Electric
Controlling Mode:	CNC
Automatic Grade:	Automatic
Setting Mode:	Floor-type
Precision:	High Precision

Product Description

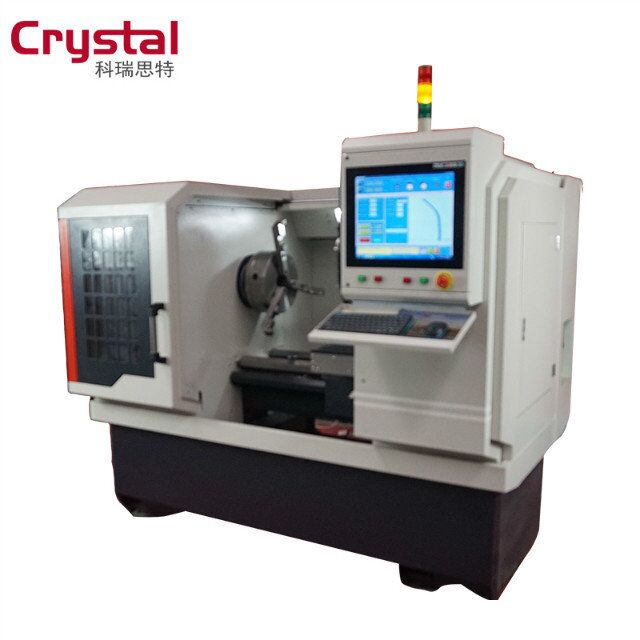

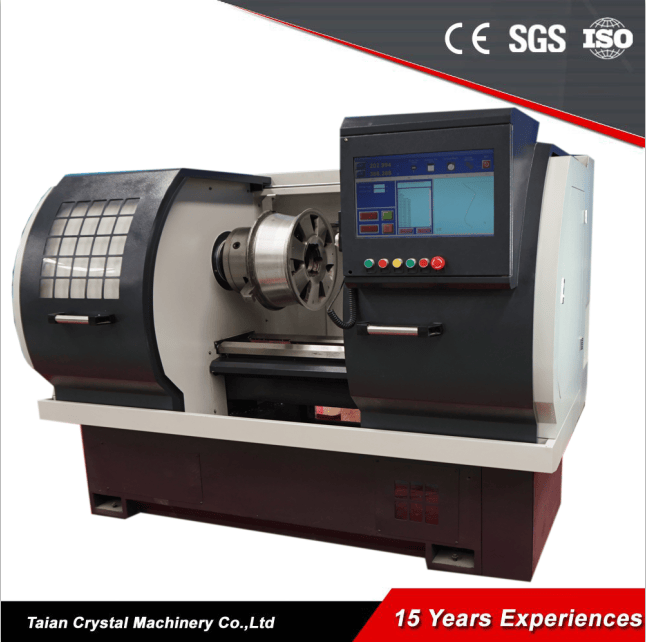

Diamond cut cnc rim repair lathe with automatic WRM28H

Product Description

Standard Configurations

1. Wireless mouse&key 1 set
2. Diamond inner cutter 1 set
3. Diamond outer cutter 1 set
4. Special ordered 3 soft jaws 1 set
5. High precision prob system 1 set
6. Ddjustable X stroke 4 station carrier
7. Light system
8. Automatic lubrication system
9. Cooling system:water cooling system;
10. Full covered safety door
11.Training videos
12. Tool case

Specifications

ITEMS	Specifications
Max. swing over bed	Φ770(30')
Max. Size of alloy wheel	Φ710(28')
Max. Stroke of the X-axis	390mm
Max. Stroke of the Z-axis	880mm
Width of the rail	300mm
Length of the rail	1320mm
Size of three-jaw chuck	13'
Range of spindle speed	50-2000rpm
Spindle speed control	Automatic
Spindle bore	Φ82mm
Taper of spindle bore	1:20(Φ90)
Taper of spindle nose	A2-10
Stations of tool carrier	4 Station
Max. size of tool post	25×25mm
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8 m/min, (X) cross 6m/min
Machine base	Whole cast iron base
Motor power	7.5KW
Machine size(length ×width ×height)	2200/1620/1870mm
Package size(length ×width ×height)	2300/1720/2170mm
Net weight	2400kg

Packaging & Shipping

According the weight of our machine,we desgin defferent package to insure the transportation safety.
We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.

Our Services

1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
c. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are exhaustively tested before shipment. You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK

Why Choose US
Make you satisfied is our business!
The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.

Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
