Diamond Cutting Alloy Wheel Repair CNC Lathe
| Price: |
US $ 15000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
AWR28H |
| CNC System: |
Syntec |
| Repairing Alloy Wheel: |
Max 28" |
| Max. Swig Over Bed: |
770mm |
| Max. Swig Over Cross Slide: |
500mm |
| Max.Turning Length: |
1000mm |
| Size Of The Three-Jaw Chuck: |
10' |
| Range Of Spindle Speed: |
20-1800rpm |
| Spindle Bore: |
72mm |
| Stations Of Tool Carrier: |
4 Position |
| Net Weight: |
2200kgs |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

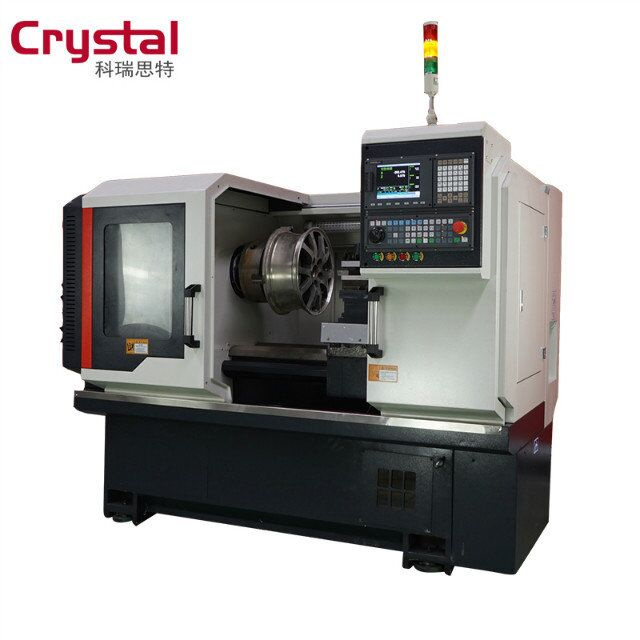

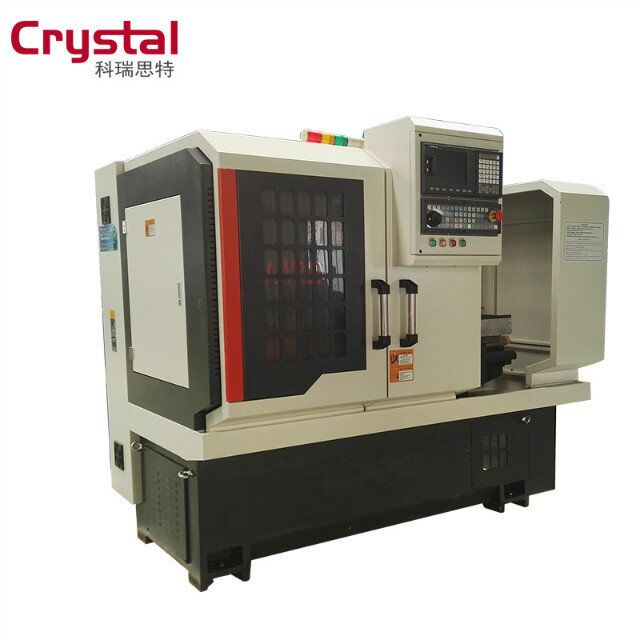

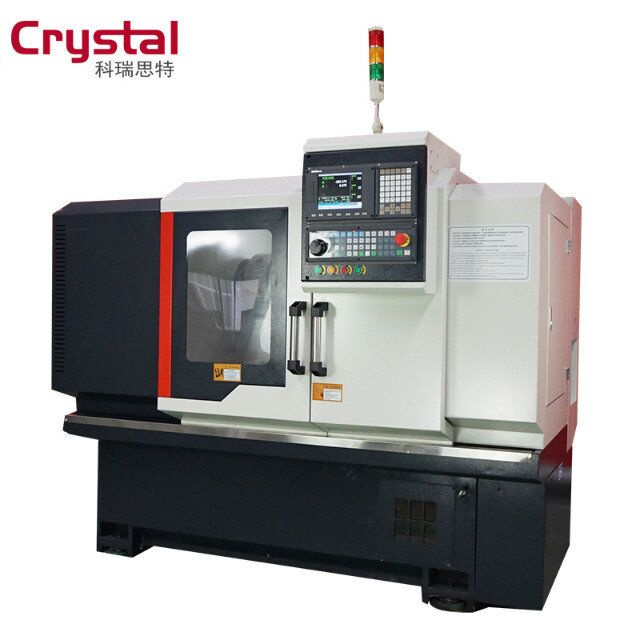

Diamond Cutting Alloy Wheel Repair CNC Lathe (AWR28H)
Specification:
Supply repairing Alloy wheel up to Max 28"
Automated self plotting Digitization by Probe System
Easy Operate
CE Certification
Free Training video
7x24 hours email or telephone technology supply
Standard Configuration:
SYNTEC 6TA CNC control system
Touch Probe system
Automatic electronic pump lubrication
Manual 3-jaw soft chuck of 10' | Max. swig over bed | Φ770mm |
| Max. swig over cross slide | Φ500mm |
| Max.turning length | 1000mm |
| Distance between centers | 1000mm |
| Stroke of X axis | 370mm |
| Width of the rail | 360mm |
| Size of the three-jaw chuck | 10' |
| Range of spindle speed | 20-1800rpm |
| Spindle bore | Φ72mm |
| Taper of spindle bore | MT6 |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
| Motor power | 7.5KW |
| Packing size(length×width×height) | 2390 mm×1620mm×2150mm |
| Net weight | 2200kgs |
Company profile:
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional
manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER. With 5, 000sqm workshops
and offices, we have more than 15 years experiences in CNC machine research and production. Our
machines have been exported more than 40 countries. We welcome all customers and friends to come toour company!
