| Prod Model: |
GX343X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design Standard: |
API 599, API6d |
| Nominal Pressure: |
Class 150lb - 900lb |
| Nominal Diameter: |
Dn15 - Dn350, 1/2" - 14" |
| Working Medium: |
Water, Oil, Gas, etc. |
| Working Temperature: |
Below 120 Deg C / Below 200 Deg C |
| Operation: |
Wrench /Lever, Worm Gear, Pneumatic, Electric |
| Structure: |
Bolted Cover |
| Face To Face Standard: |
Asme B16.10 |
| Flange Standard: |
Asme B16.5 |
Product Description

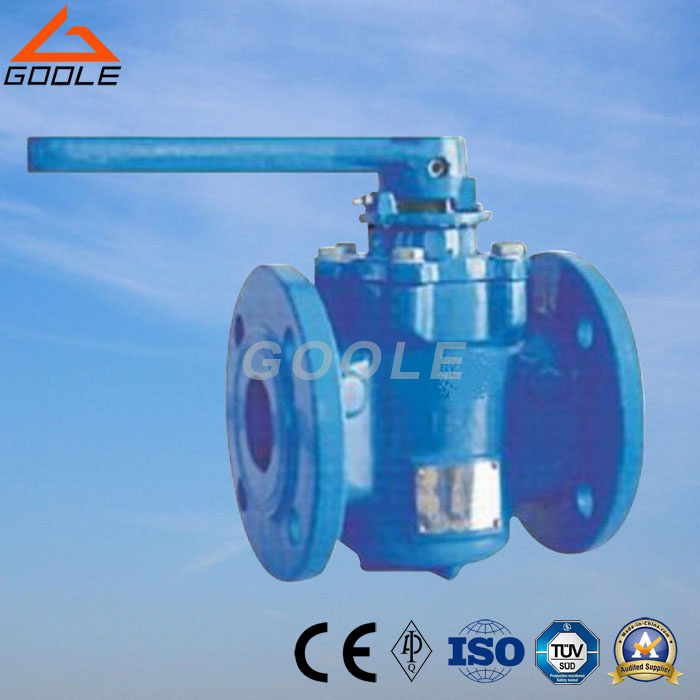

ANSI Double Eccentric Plug Valve with Flanged Ends(GX343X)
Eccentric Plug Valve is applicable to the cutting and connection of pipelines medium that areused in various industries such as petroleum,chemical industry pharmacy chemical fertilizer,power industry etc under nominal pressure of CLASS150-900LB,and working temperature of -29-180ºC.
ANSI Double Eccentric Plug Valve with Flanged Ends(GX343X) Features:
1. Double Eccentric Design, Lower friction, Zero Leakage.
2. Welded-in Stainless Steel, Nickel or resin seat can meet corrosion resistance requirements of various medium.
3. V Type sealing ring can be changed on line without disassembling the operator.
4. Self-lubricated bearing provides very easy operation and lower operation wearing.
5. Ductile iron plug wholly covered with rubber for drip-light shut off assures excellent erode and corrosion resistance.
6. O-Ring seals provide easy maintenance.
7. Liner characterisc can be used for throttling purpose.
8. Straight through flow design and columniform body can meet max, flow capacity requirements without deposits.
9. Opening indication provides easy operation.
10. Avalable for manual, pneumatic and electric and electric actuator operation.
No. |
Parts |
Material |
1 |
Body |
ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 |
Ferrule Sealing |
PTFE |
3 |
Plug |
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 |
Gasket |
Flexible Graphite + S.S. |
5 |
Adjusting Gasket |
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 |
Bonnet |
ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 |
Adjusting Bolt |
ASTM A193-B7,A320-B8,A193-B8M |
8 |
Hex Nut |
ASTM A194-2H,A194-8,A194-8M |
9 |
Bolt |
ASTM A193-B7,A320-B8,A913-B8M |
10 |
Lever |
ASTM A105-WCB |
Model |
X43-150LB |
Pressure Rating |
150LB |
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
L |
108 |
117 |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
381 |
H |
110 |
115 |
115 |
135 |
140 |
150 |
165 |
180 |
380 |
460 |
520 |
580 |
620 |
680 |
760 |
W |
175 |
175 |
175 |
220 |
280 |
305 |
350 |
405 |
300 |
300 |
320 |
320 |
350 |
380 |
450 |
Weight(kg) |
8.5 |
9.5 |
10.5 |
12 |
14 |
18 |
22 |
26 |
40 |
60 |
70 |
130 |
219 |
381 |
520 |
Note: Gear Operated for 4" and the above |
Model |
X43-300LB |
Pressure Rating |
300LB |
Size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
L |
140 |
152 |
165 |
178 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
762 |
H |
110 |
115 |
115 |
135 |
140 |
150 |
165 |
180 |
380 |
460 |
520 |
580 |
620 |
680 |
760 |
W |
175 |
175 |
175 |
220 |
280 |
305 |
350 |
405 |
300 |
300 |
320 |
320 |
350 |
380 |
450 |
Weight(kg) |
9.5 |
10.5 |
12 |
14 |
16 |
20 |
24 |
29 |
53 |
75 |
85 |
185 |
230 |
390 |
550 |
Note: Gear Operated for 4" and the above |
