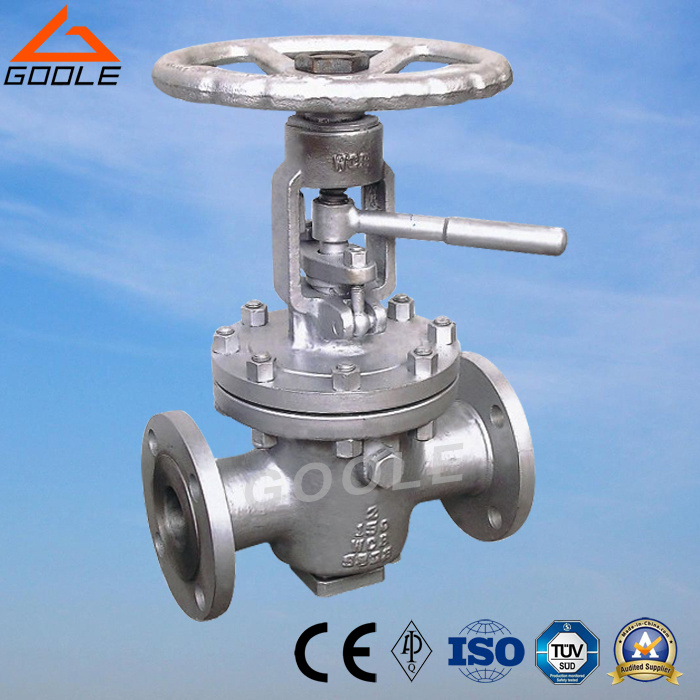

ANSI Lifting Plug Valve with Flanged Connection

ANSI Lifting Plug Valve with Flanged Connection
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: GTSX543W / GTSX43W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design Standard: API 599, API6d
Nominal Pressure: Class 150lb - 900lb
Nominal Diameter: Dn15 - Dn350, 1/2" - 14"
Working Medium: Water, Oil, Gas, etc.
Working Temperature: Below 80 Deg C / Below 300 Deg C
Operation: Wrench /Lever, Worm Gear, Pneumatic, Electric
Structure: Bolted Cover
Face To Face Standard: Asme B16.10
Flange Standard: Asme B16.5

Product Description


ANSI  Lifting Plug Valve with Flanged connection

Main structural features
Bolt bonnet OS & Y lifting-round plug.
Opening and closing of the valve is carried out while the sealed surface is taken off,so it will not cause abrasion on the sealed surface.Double direction.

Principle of opening and closing of the valve
process of opening and closing of the valve.When opening the valve,first of all,turn the hand wheel to make the plug lifted and separated with the sealed surface,the turn the handled by 90 degree to connect the channel of plug th the channel of valve body.So that the valve is opened.When closing the valve,first of all turn the handle by 90 degree to mark the channel of plug vertical to the channel of valve body,and then the hand wheel to descend the plug.So that the valve is closed.

ANSI  Lifting Plug Valve with Flanged connection Standard
Design and Manufacture: API 599,API 6D
Face to face(end to end): ANSI B 16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25


Main pants materials

NO.

Part name

Material

A216 WCB

A217 WC9

A217 C5

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

1

Body

A216 WCB

A217 WCB

A217 C5

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

2

Plug

A351 CF8

A351 CF8

A351 CF8

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

3

Gasket

Flexible graphite+stainless steel/PTFE

4

Cover

A216 WCB

A217 WC9

A217 C5

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

5

Bolt

A193 B7

A193 B16

A193 B16

A1293 B8

A193 B8M





6

Nut

A194 2H

A194 4

A194 4

A194 8

A194 8M





7

Packing

Flexible graphite/PTFE

8

Gland

A216 WCB

A216 WC9

A216 C5

A351 CF8

A351 CF8M

9

Wrench

A216 WCB

A216 WC9

A216 C5

A351 CF8

A351 CF8M

10

Yoke nut

A439-D2/Cu-Allog

11

Hand wheel

ASTM A536 Gr.60-40-18 A216 WCB



FLANGED CONNECTION LIFT PLUG VALVE

Dimensions

Class 150Lb

Size

inch

1/2

3/4

1

1-1/4

1-1/2

2

2-1/2

3

4

5

6

8

10

12

14

L-RF

mm

108

117

127

140

165

178

190

203

229

254

267

292

330

356

381

H

mm

190

195

225

260

280

310

340

395

435

470

535

590

630

680

720

W

mm

120

140

140

180

200

220

260

300

300

340

400

450

450

500

500

Weight

Kg

9

10

11

17

19

23

25

32

55

82

98

130

178

250

380


Dimensions

Class 300Lb

Size

inch

1/2

3/4

1

1-1/4

1-1/2

2

2-1/2

3

4

5

6

8

10

12

14

L-RF,BW

mm

140

152

165

178

190

216

241

283

305

381

403

419

457

502

762

H

mm

190

195

225

260

280

310

340

395

435

470

535

590

630

680

720

W

mm

120

140

140

180

200

220

260

280

300

340

400

450

450

500

500

Weight

Kg

10

12

14

19

21

28

34

39

75

85

135

200

255

415

650


Dimensions

Class 600Lb

Size

inch

1/2

3/4

1

1-1/4

1-1/2

2

2-1/2

3

4

5

6

8

10

12

14

L-RF,BW

mm

165

190

216

229

241

292

330

356

432

508

559

660

787

838

889

H

mm

190

195

225

260

280

310

340

395

435

470

535

590

630

680

720

W

mm

120

140

140

180

200

220

260

280

300

340

400

450

450

500

500

Weight

Kg

13

14

19

23

25

32

40

55

105

139

300

440

730

1150

1570


Dimensions

Class 900Lb

Size

inch

1/2

3/4

1

1-1/4

1-1/2

2

2-1/2

3

4

5

6

8

10

12

14

L-RF,BW

mm

229

229

254

279

305

368

419

381

457

559

610

737

838

965

1029

H

mm

190

195

225

260

280

310

340

395

435

470

535

590

630

680

720

W

mm

120

140

140

180

200

220

260

280

300

340

400

450

450

500

500

Weight

Kg

16

17

26

30

33

39

50

70

137

181

397

590

860

1470

1880



Yongjia Goole Valve Co., Ltd is a specialized and modernized company. As industrial valves, filters and pipe fittings supplier and project service provider, we are willing to provide you with high quality and perfect fluid control solutions, to create a new intelligent system with high efficient, energy saving and environmental protection characteristics, so as to help you make full use of your energy.

We manufacture and offer:

Safety relief valve(Our hot products, we have price & performance advantages about safety valves, and we can offer you the best price and quality you want): Spring loaded safety valve, high pressure and high temperature safety valve, pilot operated safety valve, DIN Standard Safety Valve, etc...

Control Valve: Electric Control Valve, Pneumatic Control Valve, Self-operated control valve, Globe control valve, 3-way control valve. etc.

Ball Valve: Floating Ball Valve, Trunnion Mounted Ball Valve, DBB Ball Valve, Full Welded Ball Valve., etc.

Pressure Reducing Valve: Pilot Operated reducing valves, Direct Acting and Bellow Type Reducing Valves. etc.

Steam Trap: Free Float steam trap, Lever Ball Float steam trap, thermodynamic and thermostatic steam trap, inverted bucket steam trap, etc.

DIN Bellow sealed globe valves, Y Type Strainer

Besides, Other valves and pipe fittings also can be offered by us.

Our products are widely used in petroleum, chemical, metallurgy, power stationand some other fields. We can also design and manufacture the non-standard products according to Customers' requirements.

Our Products are in strict accordance with ISO 9001 International Quality Management System. We also have a complete inspection system to ensure the quality of our products. From the Market Researching to Designing and developing, from the material purchasing to furnishing, inspection and testing, from delivery to after sale service, every step is processed under the Standard Management. In order to produce the superior industrial valve and let the national-made valve replace imported valve, we always stick to the following principles: Ensure the Quality for Survival, Ensure the Continuous Innovation for Development, and ensure the high efficient service for Customers' satisfaction.

We would like to serve our esteemed customers with superior products, reasonable price and complete sales services. We pledge we will be your most reliable business partner always.
