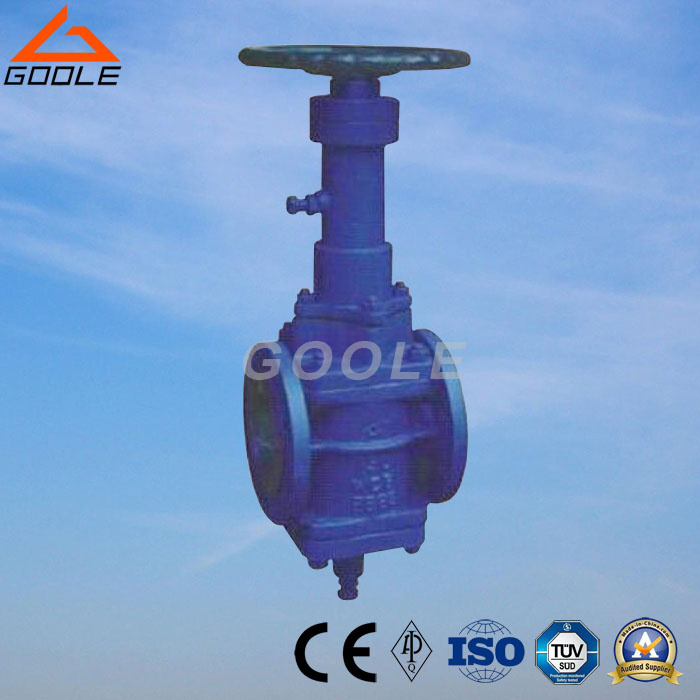

ANSI Orbit Plug Valve or General Valve (GAX43)

Name: ANSI Orbit Plug Valve or General Valve (GAX43)
Brand: tool-buy.com
SKU: 777279705
Availability: InStock
Rating: 4.3 (111 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Yongjia Goole Valve Co., Ltd.

Showroom Product Company Profile

Prod Model:	GAX43
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design Standard:	API 599, API6d
Nominal Pressure:	Class 150lb - 900lb
Nominal Diameter:	Dn15 - Dn350, 1/2" - 14"
Working Medium:	Water, Oil, Gas, etc.
Working Temperature:	Below 80 Deg C / Below 300 Deg C
Operation:	Wrench /Lever, Worm Gear, Pneumatic, Electric
Structure:	Bolted Cover
Face To Face Standard:	Asme B16.10
Flange Standard:	Asme B16.5

Product Description

ANSI ORBIT PLUG VALVE OR GENERAL VALVE (GAX43)

Main structural features
Bolt bonnet OS & Y lifting-round plug.
Opening and closing of the valve is carried out while the sealed surface is taken off,so it will not cause abrasion on the sealed surface.Double direction.

Principle of opening and closing of the valve
When the valve is fully opened, the channel of plug is in alignment with the channel of valve body, which can ensure ideal and lowest decrease on pressure. When the hand wheel is turned, the plug valve will rotate toward the closing direction, and at the same time draft the rotation of valve disc by 90 degree, when the handwheel is turned further on, the plug will be pressed down, and make the valve disc open to two sides, so that the valve disc will be in firm contact with the valve seat and close the valve.

The advantage of this type of valve is, during the opening and closing of valve, the disc and valve seat is separated, and there's no friction and thus sealing face is no abrasion in the process; at the same time, soft seal is applied for sealing, so that there will be no leakage in the process of closing. When the handsheel is turned inversely, first of all the plug will move upward, and the valve disc and valve seat will be separated, if the hand wheel is turned further on, till the valve disc is turned by 90 degree driven by the plug, and finally the channel of plug will be in alignment with the channel of valve body, so that the valve is be fully opened.

ANSI ORBIT PLUG VALVE OR GENERAL VALVE (GAX43)
Design and Manufacture: API 599,API 6D
Face to face(end to end): ANSI B 16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25

Main pants materials

NO.	Part name	Material
NO.	Part name	A216 WCB	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
1	Body	A216 WCB	A217 WCB	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
2	Plug	A351 CF8	A351 CF8	A351 CF8	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
3	Gasket	Flexible graphite+stainless steel/PTFE
4	Cover	A216 WCB	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
5	Bolt	A193 B7	A193 B16	A193 B16	A1293 B8	A193 B8M
6	Nut	A194 2H	A194 4	A194 4	A194 8	A194 8M
7	Packing	Flexible graphite/PTFE
8	Gland	A216 WCB	A216 WC9	A216 C5	A351 CF8	A351 CF8M
9	Wrench	A216 WCB	A216 WC9	A216 C5	A351 CF8	A351 CF8M
10	Yoke nut	A439-D2/Cu-Allog
11	Hand wheel	ASTM A536 Gr.60-40-18 A216 WCB

ANSI ORBIT PLUG VALVE OR GENERAL VALVE (GAX43)

Dimensions
Class 150Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF	mm	108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	300	300	340	400	450	450	500	500
Weight	Kg	9	10	11	17	19	23	25	32	55	82	98	130	178	250	380

Dimensions
Class 300Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
Weight	Kg	10	12	14	19	21	28	34	39	75	85	135	200	255	415	650

Dimensions
Class 600Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
Weight	Kg	13	14	19	23	25	32	40	55	105	139	300	440	730	1150	1570

Dimensions
Class 900Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	229	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
H	mm	190	195	225	260	280	310	340	395	435	470	535	590	630	680	720
W	mm	120	140	140	180	200	220	260	280	300	340	400	450	450	500	500
Weight	Kg	16	17	26	30	33	39	50	70	137	181	397	590	860	1470	1880
