ANSI Sleeve Type PTFE Sealing Plug Valve (GAX43F)

ANSI Sleeve Type PTFE Sealing Plug Valve (GAX43F)
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: GAX43F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design Standard: API 599, API6d
Nominal Pressure: Class 150lb - 900lb
Nominal Diameter: Dn15 - Dn350, 1/2" - 14"
Working Medium: Water, Oil, Gas, etc.
Working Temperature: Below 120 Deg C / Below 200 Deg C
Operation: Wrench /Lever, Worm Gear, Pneumatic, Electric
Structure: Bolted Cover
Face To Face Standard: Asme B16.10
Flange Standard: Asme B16.5

Product Description

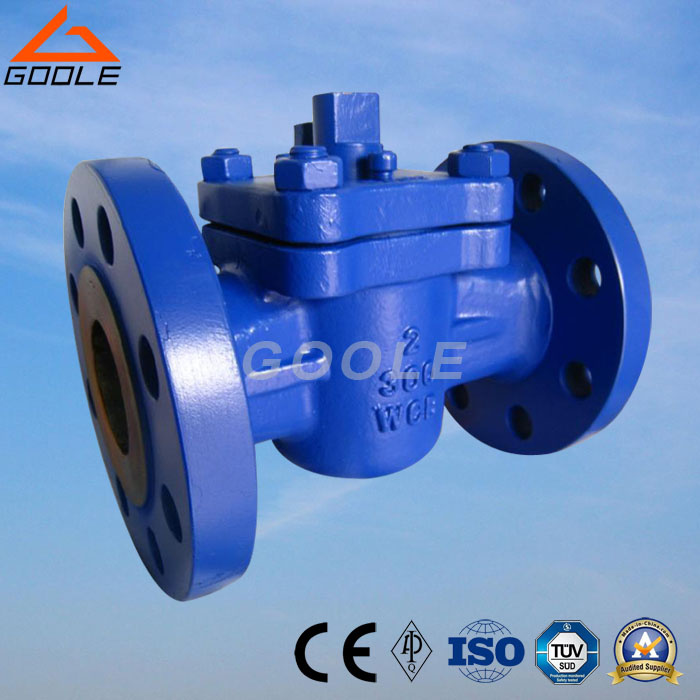

Structural features of Sleeve type soft PTFE sealing plug valve :
Sleeve type soft sealing plug valve is applicable to the cutting and connection of pipelines medium that areused in various industries such as petroleum,chemical industry pharmacy chemical fertilizer,power industry etc under nominal pressure of CLASS150-900LB,and working temperature of -29-180ºC.

Main structural features of Sleeve type soft sealing plug valve :
 A. The product has reasonable structure,reliable sealing,excelient performance and beautiful appearance

 B. Its sealing is realized by the sealing face around the sleeve,It has unique 360 degree metal edge for protection and fixing of the sleeve.

 C. There is no cavity in the valve for accumulation of medium.

 D. Metal edge provides the function of self-cleaning when the plug is rotated,applicable to the operation condition that is glutions and apto smudge.

 E. Its characteristic double-dircction flow makes installaiton and use more convenient.

 F. The materials of the parts and sizes of flanges can be reasonabnly configured according the actual operation aondition of the requirements of the customers,so as to meet the various needs of engineering.



Main Parts Material

No.

Parts

Material

1

Body

ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M

2

Ferrule Sealing

PTFE

3

Plug

ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316

4

Gasket

Flexible Graphite + S.S.

5

Adjusting Gasket

ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316

6

Bonnet

ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M

7

Adjusting Bolt

ASTM A193-B7,A320-B8,A193-B8M

8

Hex Nut

ASTM A194-2H,A194-8,A194-8M

9

Bolt

ASTM A193-B7,A320-B8,A913-B8M

10

Lever

ASTM A105-WCB

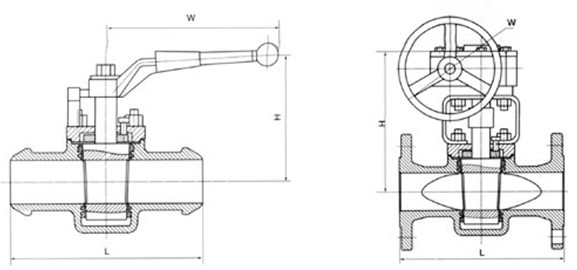

Model

X43-150LB

Pressure Rating

150LB

Size

mm

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

in

1/2

3/4

1

11/4

11/2

2

21/2

3

4

5

6

8

10

12

14

L

108

117

127

140

165

178

190

203

229

254

267

292

330

356

381

H

110

115

115

135

140

150

165

180

380

460

520

580

620

680

760

W

175

175

175

220

280

305

350

405

300

300

320

320

350

380

450

Weight(kg)

8.5

9.5

10.5

12

14

18

22

26

40

60

70

130

219

381

520

Note: Gear Operated for 4" and the above



Model

X43-300LB

Pressure Rating

300LB

Size

mm

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

in

1/2

3/4

1

11/4

11/2

2

21/2

3

4

5

6

8

10

12

14

L

140

152

165

178

190

216

241

283

305

381

403

419

457

502

762

H

110

115

115

135

140

150

165

180

380

460

520

580

620

680

760

W

175

175

175

220

280

305

350

405

300

300

320

320

350

380

450

Weight(kg)

9.5

10.5

12

14

16

20

24

29

53

75

85

185

230

390

550

Note: Gear Operated for 4" and the above
