Prod Model: |
Z40H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Packaging Details: |
Plywood or as The Customers' Requirement. |
Delivery Detail: |
Depend on The Quantity |
Material: |
Carbon Steel |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Household Usage |
Product Description

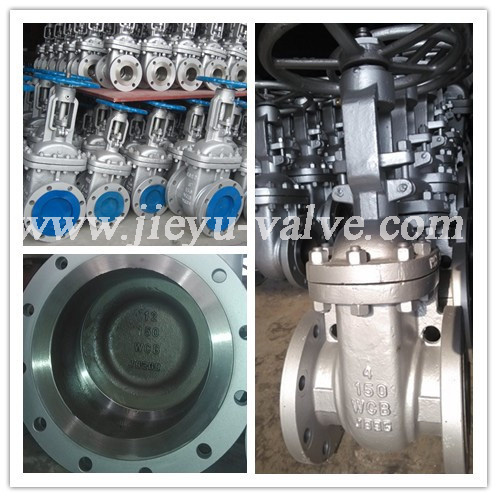

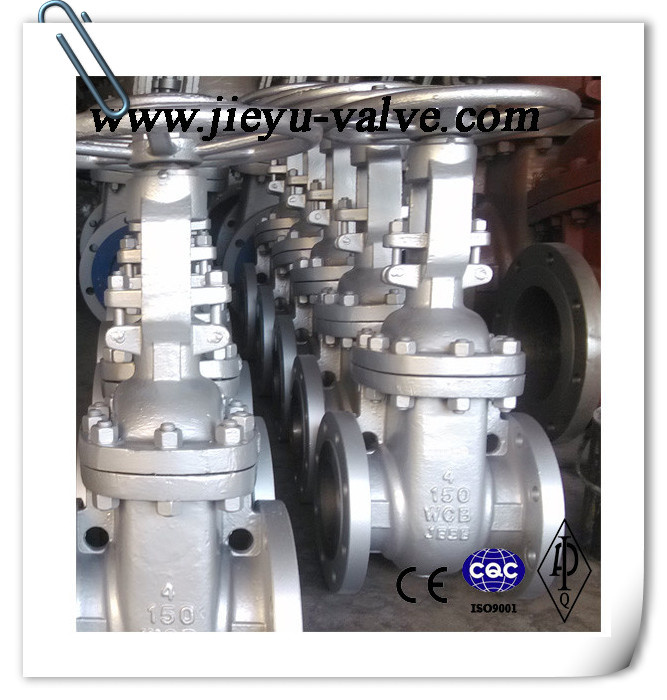

Cast Steel/WCB API 600 150lb 4" Gate Valve
Specification:
Size: 1/2"-30"
Pressure:150LB~1500LB
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)
Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system
Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc
Product:

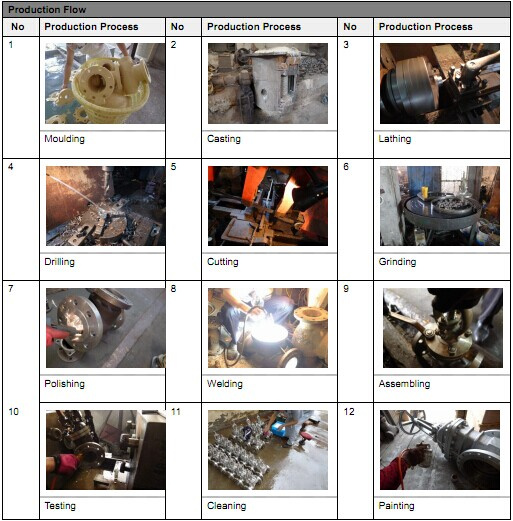

Production Flow:

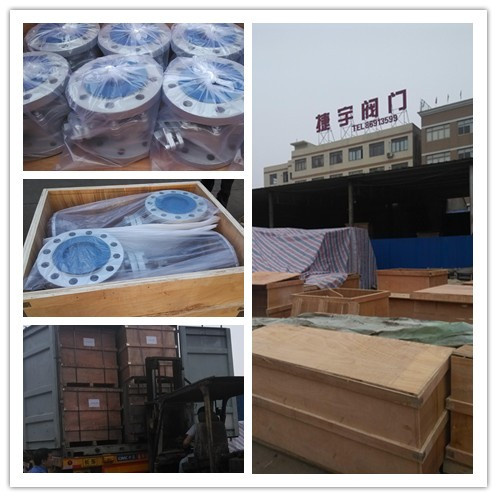

Packaging: NO. | Part Name | Material |
01 | Body | ASTM A216WCB | ASTM A351 CF8 | ASTM A351 CF8M |
02 | Seat Ring | ASTM A216+13Cr | ASTM A351 CF8 | ASTM A351 CF8M |
03 | Wedge | ASTM A216+13Cr | ASTM A351 CF8 | ASTM A351 CF8M |
04 | Stem | ASTM A276 420 | ASTM A182 F304 | ASTM A182 F316 |
05 | Gasket | 304+Graphite | 304+Graphite | 316+Graphite |
06 | Bonnet | ASTM A216WCB | ASTM A351 CF8 | ASTM A351 CF8M |
07 | Stud | ASTM A193 B7 | ASTM A193-B8 | ASTM A193-B8M |
08 | Nut | ASTM A194 2H | ASTM A194-8 | ASTM A194-8M |
09 | Backseat | ASTM A216+13Cr | ASTM A351 CF8 | ASTM A351 CF8M |
10 | Packing | Graphite | Graphite | Graphite |
11 | Pin | C.S | S.S | S.S |
12 | Gland Bolt | ASTM A193 B7 | ASTM A193-B8 | ASTM A193-B8M |
13 | Gland Nut | ASTM A194 2H | ASTM A194-8 | ASTM A194-8M |
14 | Bushing | ASTM A216 F6a | S.S | S.S |
15 | Gland | ASTM A216WCB | ASTM A351 CF8 | ASTM A351 CF8M |
16 | Stem Nut | ZcuAl10Fe3 Bronze | ZcuAl10Fe3 Bronze | ZcuAl10Fe3 Bronze |
17 | Lubricator | Cu | Cu | Cu |
18 | Retaining Nut | C.S | C.S+Cr | C.S+Cr |
19 | Handwheel | ASTM A47 | ASTM A47 | ASTM A47 |
20 | H.W. Lock Nut | C.S | C.S+Cr | C.S+Cr |
Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.
JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on
JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.
JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
