API Stainless Steel CF8 (M) /CF3 (M) Flanged Gate Valve

Name: API Stainless Steel CF8 (M) /CF3 (M) Flanged Gate Valve
Brand: tool-buy.com
SKU: 796725655
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	US $ 40-50/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Zhejiang Jieyu Valve Co., Ltd.

Showroom Product Company Profile

Prod Model:	Z41H-150LB-8"

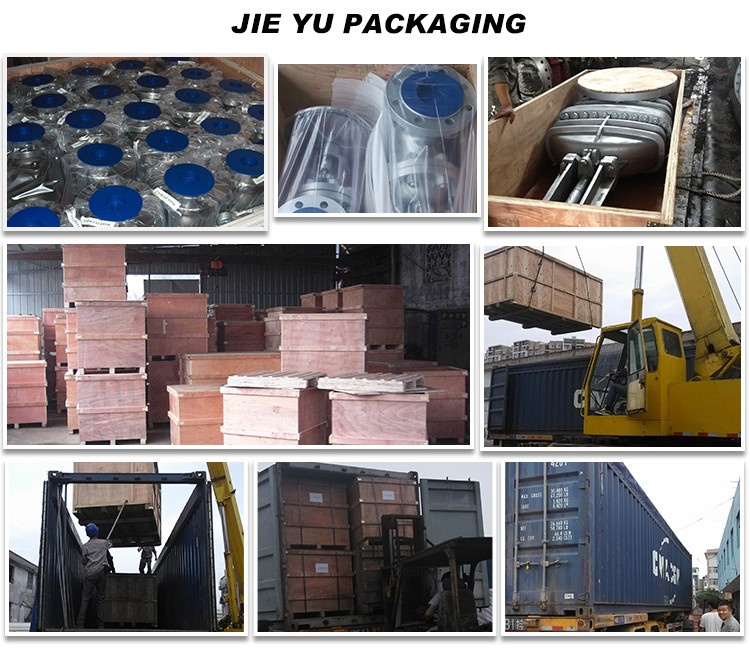

Packaging Details:	Plywood or as The Customers' Requirement.
Delivery Detail:	Depend on The Quantity
OEM:	Yes
Certificate:	API Ce ISO Ts
Material:	Stainless Steel
Connection Form:	Flange
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Outside Gate Valve
Application:	Household Usage

Product Description

API Stainless Steel CF8 (M) /CF3 (M) Flanged Gate Valve

Specification:

Size: 1/2"-30"

Pressure:150LB~1500LB

Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.

Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc

Type: Rising Stem, BB, FB, OS&Y

Operation: Hand Wheel. Gear Devices, Electricty, Etc

End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)

Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system

Standard:

Design And Manufacture: API 600, API 6D, BS1414,Etc

Face To Face (End To End): ANSI B16.10, API 6D,Etc

Flanged Connection: ANSI B16.5, ASME B16.47 Etc

Butt Welded End: ANSI B16.25,Etc

Test And Inspection: API 598, API 6D,Etc

Face to Face Std.: GB/T12221,DIN3202,Etc.

End Connection Std.: JB/T79,DIN2543-2550,GOST 12820-80,Etc.

Test Standard: ISO5208, API 600, BS 6755

NO.	Part Name	Material
01	Body	ASTM A216WCB	GS-C25,CF8,CF8M
02	Seat Ring	ASTM A216+13Cr
03	Wedge	ASTM A216+13Cr
04	Stem	ASTM A276 420	13Cr.F304,F316
05	Gasket	304+Graphite	GS-C25,CF8,CF8M
06	Bonnet	ASTM A216WCB
07	Stud	ASTM A193 B7	ASTM A193-B8
08	Nut	ASTM A194 2H	ASTM A194-8
09	Backseat	ASTM A216+13Cr
10	Stud	ASTM A193 B7
11	Nut	ASTM A194 2H
12	Yoke	ASTM A216WCB
13	Packing	Graphite
14	Pin	ASTM A276 410	C.S SS304 SS316
15	Gland Bolt	ASTM A193 B7
16	Gland Nut	ASTM A194 2H
17	Bushing	ASTM A276 410
18	Gland	ASTM A216WCB
19	Bearing	ASTM A29	A105,F304,F316
20	Stem Nut	ZcuAl10Fe3 Bronze	Bronze,SS304,SS316
21	Lubricator	Cu	Brass
22	Retaining Nut	C.S
23	Handwheel	ASTM A47	A105,F304,F316
24	H.W. Lock Nut	C.S	25#,SS304,SS316

Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
