| Prod Model: |
SV51LB230 |
| Max Pressure: |
700bar |
| Max Torque Value: |
232-2328nm |
| Nut Size: |
24-55mm |
| Bolt Diameter: |
16-36mm |
| Certificate: |
Ce, ISO9001:2008 |
| OEM: |
Yes |
| Stock: |
Yes |
| Type: |
Hex Wrench |
| Standard: |
European Type |
| Surface Treatment: |
Titanizing |
| Feature: |
Ordinary |
| Material: |
Al-Ti |
| Brand: |
Sov |
Product Description
Feature

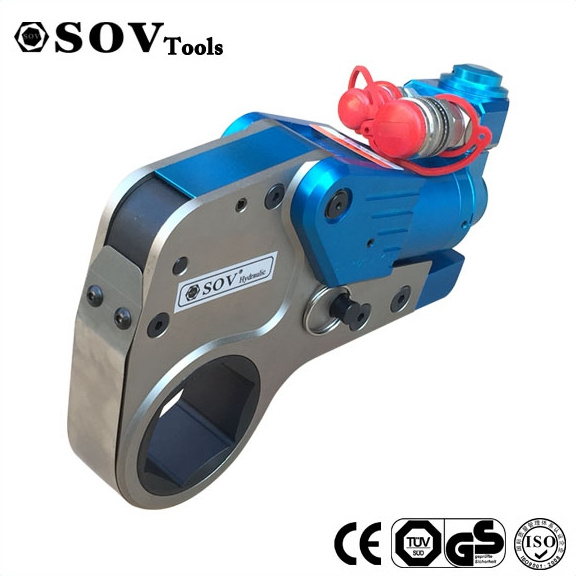

SOVtorque wrenches were designed using state-of-the art CAD techniques to bring you the most advanced low profile hexagon torque wrench on the market
Rigid Al-Ti design durabilty, reliabilty and safety
No tools needed for changing hexagon heads
Versatility: one hydraulic drive unit per torque capacity can be used to drive any hexagon head within that range
Innovative, pinless wrench construction with quick release drive and automatic crank engagement
Fast operation due to the large nut rotation per wrench cycle (30 degree) and rapid return stroke, double-acting
Constant torque output provides high accuracy (± 3%) across the full stroke
360 degree swivel manifold with screw lock couplers
Optional interchangeable metric and imperial hexagon heads and reducer inserts
Product Parameter
Model | Torque range(Nm) | Nut on the side (mm) | Working head Length(mm) | Working head Thickness (mm) | Plug-ins Thickness (mm) | Working pressure(bar) | Weight(Kg) |
| SV51LB230 | 235-2380 | 19-55 | 195 | 50 | 32 | 700 | 1.5 |
| SV51LB600 | 590-6010 | 34-65 | 245 | 65 | 42 | 4.4 |
| SV51LB1100 | 1100-11500 | 41-95 | 300 | 82 | 53 | 8 |
| SV51LB1900 | 1850-18900 | 50-117 | 360 | 96 | 64 | 11.5 |
| SV51LB4200 | 4190-42000 | 110-115 | 430 | 130 | 85 | 28 |
Our Service
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.
Company Information
SOV is a professional manufacturing in hydraulic tools and products, we have been in the industry for more than 20 years. Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively. Our Products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.
Our main product category includes:
Hydraulic cylinders and jacks,
Hydraulic bolting tools such as hydraulic torque wrench,
Hydraulic bolt tensioners, nut splitters.
FAQ
Q1: How can contact sales?
A1: Please call: 0086 21 68561366 for pre-sales or click the contact find our website and email address.
Q2: How can I buy SOV products in my country?
A2: Please send us an inquiry or email, we wil reply to you if there is distributor in your country.
Q3: Can I have SOV products catalog and price list?
A3: Please visit our English website: www. sovhydraulic. com to download our E-catalog, and send us an email for price list.
Q4: How long does it take to get the product if I place an order?
A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7days. If you select international parcel service, it can be arrived in 3-7days. If it is by sea shipment, It will take 15-45days depending on different lacations.
Q5: How to make payment?
A5: First send us an inquiry, and we will reply to you quotation, if ou price suits you, we will prepare proforma invoice with our banking details
Q6: Manufacturing time?
A6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products(refer to model), it can be produced in 10-20days. If it is customized, not our standard products, it will take 20-45days to produce.
Why Choose SOV?
Quality ---SOV has been in the industry for than 20years. We have been trusted by domestic mega stated-state owned cmpanies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.
Service--SOV promised to respond to customers products quality or service in 24 hours reported, and solution shall be provied in 48 hours.
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
