Automatic Section Cutting Machine for Metallurgical, Ceramic and Materials Research

Name: Automatic Section Cutting Machine for Metallurgical, Ceramic and Materials Research
Brand: tool-buy.com
SKU: 730503012
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 4700/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Zhengzhou CY Scientific Instrument Co., Ltd.

Showroom Product Company Profile

Prod Model:	SYJ-200
Motor:	High Torque DC Motor
Max. Cutting Depth:	65mm
Max. Opening Of The Vice:	54mm
Precision:	0.01mm
Warranty:	One Year
Certificate:	Ce/TUV

Product Description

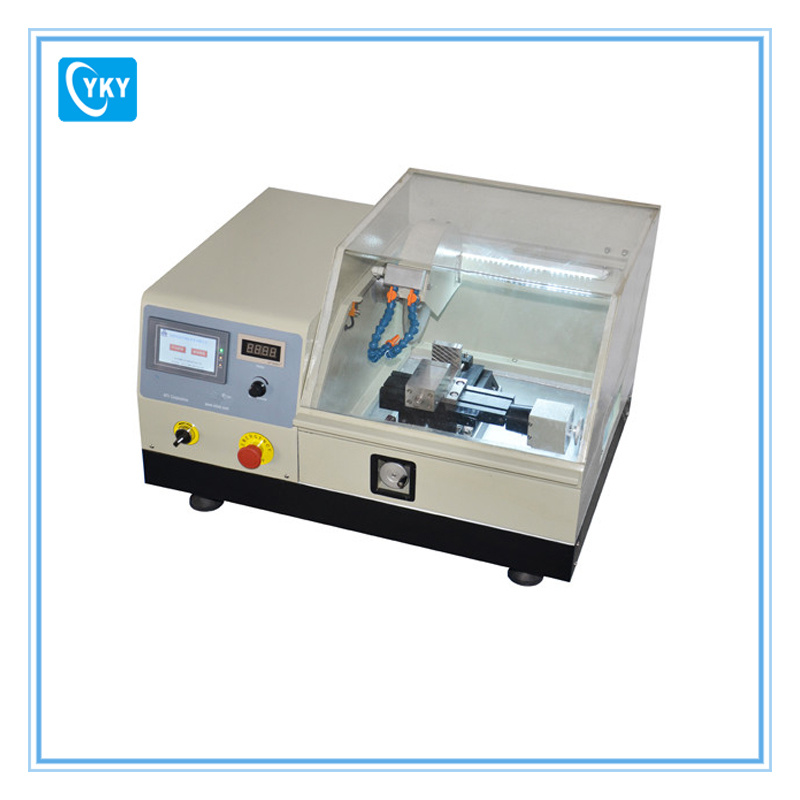

Automatic Section Saw ( 8") with complete accessories SYJ-200
Introduction of cutting machine for lab
SYJ-200 is a CE certified automatic diamond saw for precisely cutting all type of materials. The saw is
equipped with 8" diameter diamond blade and touch-push panel to achieve automatic control. It is the
perfect cutting tool for metallurgical, ceramic and materials research laboratories.

Technical parameter of cutting machine for lab

Voltage and Power	208V-240VAC, 600W 50/60Hz If you try to use at 110VAC, please order a 1000W transformer 110V-220V separately
Motor & Spindle	1 HP high torque DC motor. 1" Dia spindle and 2" flange to accept 6 - 8" Dia diamond blade. Variable blade speed: 300-3500 RPM with screen touch control panel and digital display
Sample Stage & Controller	Quick clamp is included to make sample mount easy and fast Automatic/manual control X and Y two axial motion via touch screen digital panel Programmable Y and X axis advancement via LCD panel to achieve automatic cutting with 0.01 mm precision. X axis is for cutting feed which has Max. the travel distance of 80 mm and adjustable speed from 1.0 mm/ minute to 20 mm/minutes. Max. cutting depth ( or sample height ) 65mm Y axis is for controlling thickness of slices, which can be programmed up to 100 mm distance Max. Opening of the Vice: 54mm
Cutting Blade	Three 8" cutting blades are included and completed accessories are included for immediate use One 8" diameter x 0.025" thickness x 1" arbor sintered diamond blade for cutting ceramic sample One 8" Dia x 0.04" t x1.26" arbor Alumina Blade for cutting ferrous metal for cutting steel etc One 8" Dia x 0.04" t x1.26" arbor SiC Blade for cutting non-ferrous metal for cutting non-ferrous metal, Ti, Ni Ta
Water Cooling(Optional)	Adjustable nozzles are installed for re-circulating coolant Protective splash cover with elect cooling during tonic safety interlock installed
Dimensions	Overall dimensions: 734mm x540mm x475mm.
Shipping Weight	Shipping weight: 365 lbs.
Warranty & Compliance	Two (2) Years Limited Warranty with lifetime support (not include the rusty part due to improper storage)
Certification	CE certified.

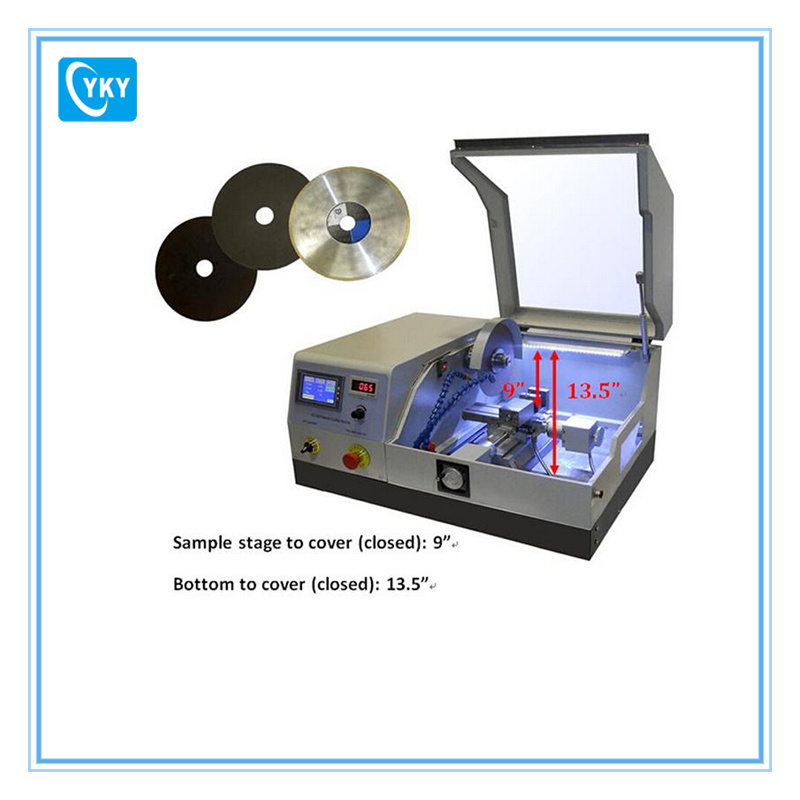

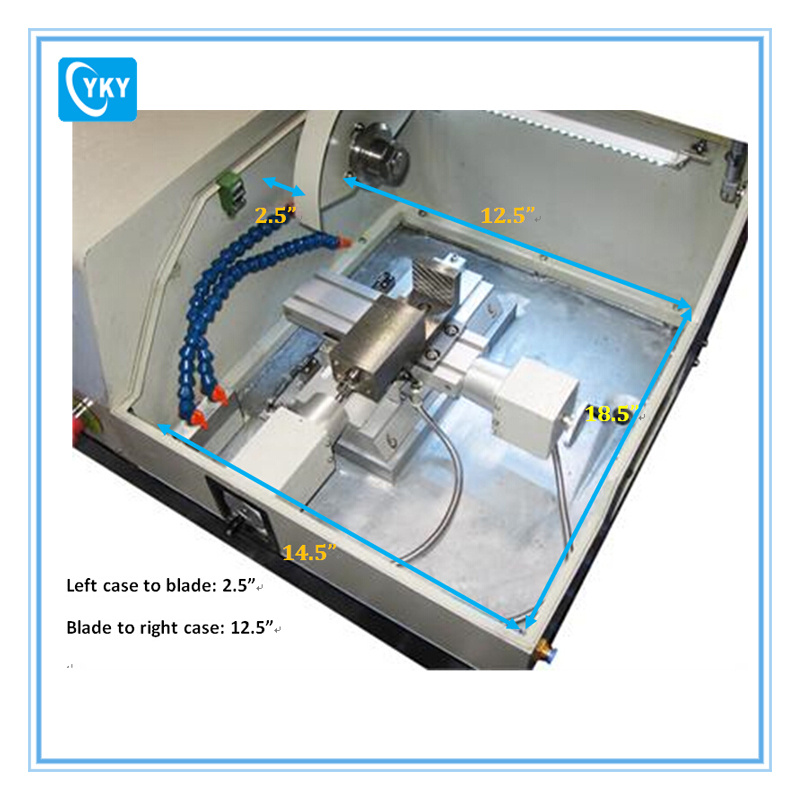

More photos of cutting machine for lab

Zhengzhou CY Scientific Instrument Co., Ltd. Materials Science and Technology Co., Ltd. is a high and new technology enterprise registered in Zhengzhou city of Henan province, mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet. On the basis of sticking to independent innovation, the company absorbs extensively the advanced technology of excellent products at home and abroad. Meanwhile, the company studies, develops and manufactures various kinds of heating equipment and experimental instrument with consideration of our comprehensive national conditions. The company has solid technical force and forms a thorough research and development system by cooperating closely with a number of research institutes.
