Automatic Stone Quarry Cutting Machine for Mable, Granite Mining
| Price: |
US $ 14000-25000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
LQ-WSM-37KW |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East |
| Item: |
Automatic Stone Quarry Cutting Machine |
| Cutting Direction: |
Any Direction |
| Certification: |
CE, SGS |
| Main Motor: |
37kw(50HP) |
| Variable Linear Speed: |
0-40m/Sec |
| Application: |
for Quarrying Grantie, Marble |
| Max Length Of Diamond Wire: |
20-150 Meter |
| Water Consumption: |
10-20 L/Min |
| Related Parts: |
Diamond Wire, Pulley, Rubber Belt |
| Brand Of Inverters: |
Weichi, Schneider or Siemens etc |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Cutting |
| Kind: |
Stone Sawing Machine |
Product Description
Wire saws are widely used for quarry cutting and block squaring of granite, marble and kinds of stone; as well as controlled demolition of construction, with advantages of high efficiency, perfect cutting results, good flexibility and adaptability, low comprehensive cutting cost, high output etc.
1. Variable wire speed range from 0-40M/S
2. Motorized rotation of driving wheel holder from 0- 360degree with limit protection for over movement
3. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement
4. Maximum travel speed on rail without loading 1.75M/Min
5. Safety alarm and stop system in case of unexpected wire break or any other faults
6. Distant control with very simple panel to operate the saw with better safety easier understanding to the operator
7. Separate automatic reset selection switch to control the rotation and lateral extension movement; which can be take off when it is no need.
8. Schneider electronics with better reliability and convenient local source for replacement
9. 20 second main motor start alarm sound and flash light to warn around people leave away.
10. Solid turbine and worm with perfect covering and protection against dust and water during work.
11. Direct Gear wheel driving for stable and fast travel movement on rail.
12. Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repair.
13. 1.3meter width rail with 5mm thickness and 70mm diameter steel pipe for better duration and more stable movement of saw.
14. General gross weight: 2300-3300kgs
15. General volume dimension: 4- 7cubic meter (with packing)
Packaging & Shipping
Packaging: All packing will be done with protection against damages while transporting.
Delivery time: In 7 days for one set of wire saw machine.
Our Services
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

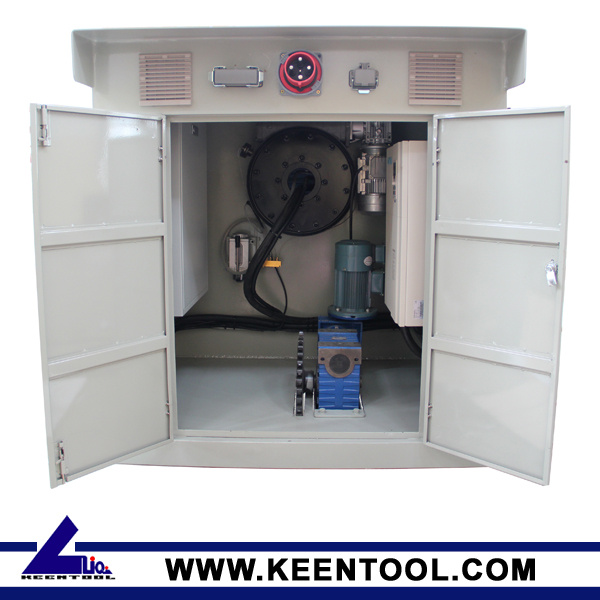

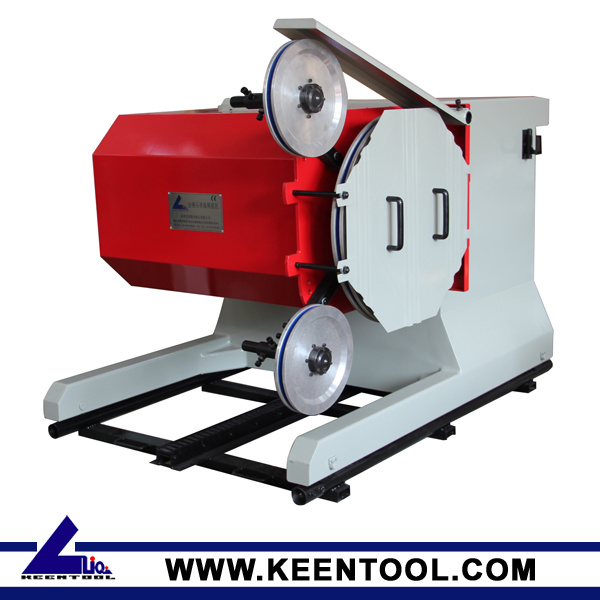

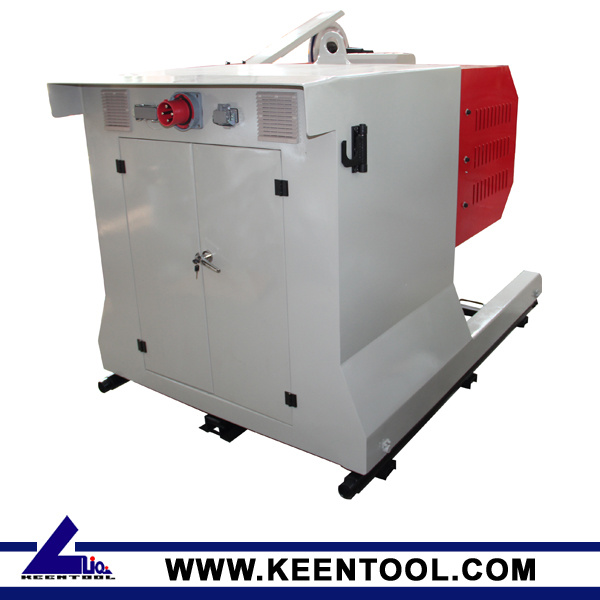

Related photos of wire saw equipment:
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:- Diamond Wire for stone quarry, blocks trimming and profiling.
- Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional Diamond Tools for processing stone and other construction materials.
Welcome to visit our website of www.keendiamantwire.comor http://keentool.en.alibaba.comto know more about us.
|
No. |
Item |
Data |
|
1 |
Total power |
40.35KW |
|
2 |
Main motor power |
37KW/50HP |
|
3 |
Travel motor power |
0.75KW |
|
4 |
Rotary cutting head motor power |
0.75KW |
|
5 |
Shifting cutting head motor power |
1.1KW |
|
6 |
Power supply requirement |
AC380±10% @ 50Hz |
|
7 |
Cutting head rotation |
360 |
|
8 |
Lateral movement/Shifting distance of cutting head |
350-400mm |
|
9 |
Length of rails |
2m or 3m |
|
10 |
Main motor rotate speed |
980 r/min(by inverter) |
|
11 |
Linear speed of drive flywheel |
0~40m/s |
|
12 |
Speed of machine traveling |
1750mm/min |
|
13 |
Available working temperature |
-15 0 C~+40 0 C |
|
14 |
Dimension of the machine |
L=1940,W=1440,H=1485 |
|
15 |
Weight |
2T |
|
Model |
Main Motor |
Length of wire
(Meter) |
Linear Speed
(M/Sec) |
Diameter of driving wheels
(mm) |
Application |
|
LQ-WSM-11KW |
11KW/15HP |
5-20 |
0-40 |
Φ550 |
For block trimming |
|
LQ-WSM-15KW |
15KW/20HP |
5-30 |
0-40 |
Φ550 |
|
LQ-WSM-22KW |
22KW/30HP |
10-40 |
0-40 |
Φ600 |
|
LQ-WSM-37KW |
37KW/50HP |
20-80 |
0-40 |
Φ800 |
For Quarry |
|
LQ-WSM-45KW |
45KW/60HP |
20-100 |
|
LQ-WSM-55KW |
55KW/750HP |
20-120 |
|
LQ-WSM-75KW |
75KW/100HP |
20-150 |
0-40 |
Φ1000 |
