| Prod Model: |
B47 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Pressure: |
0.64MPa |
| Air Consumption: |
34L/S |
| Impact Frequency: |
1250times |
| Piston Stroke: |
146mm |
| Hose Size: |
19mm |
| Shank Size: |
25*108mm |
| Usage: |
Ore |
| Condition: |
New |
| Power Type: |
Air Compressor |
| Type: |
Piston |
Product Description
Description

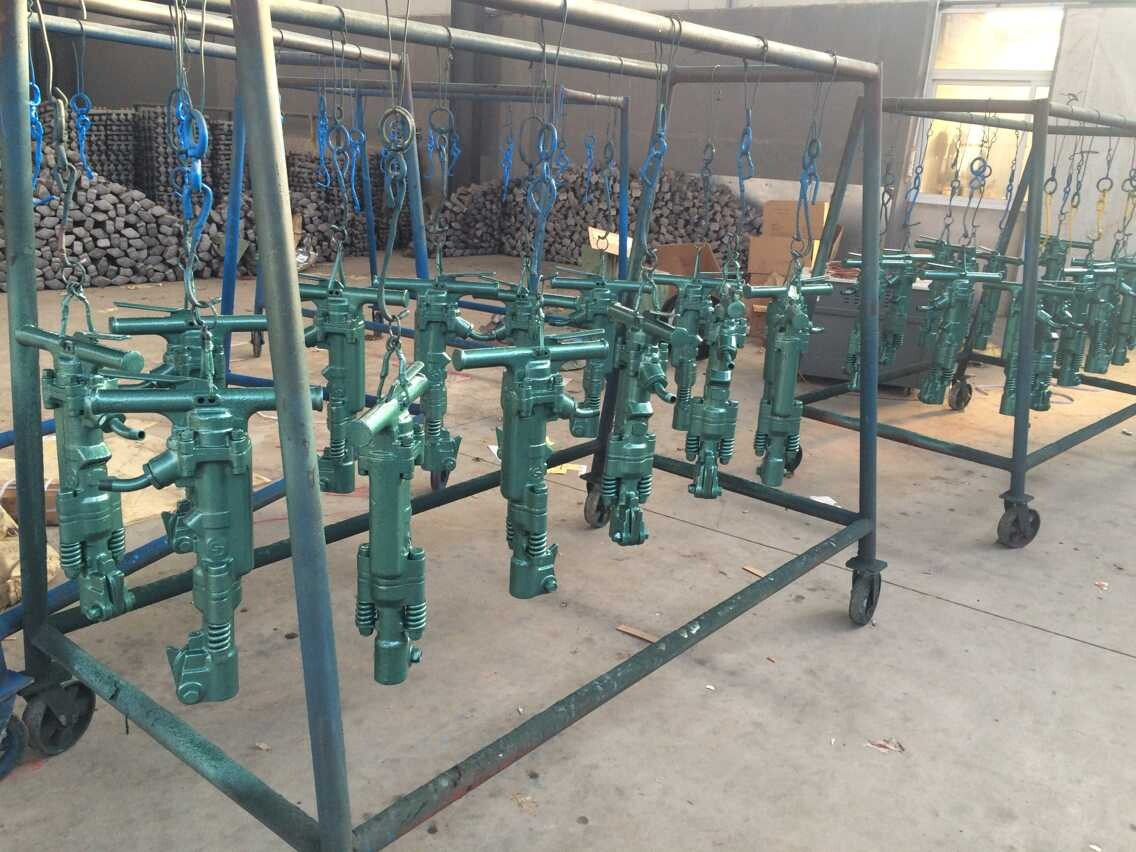

B47 Pneumatic Hammer
To pave and break concrate foundation installing engenering to break other hard things
The Paving breaker model B47 is tools with compressed air as its power.The compressed air is distributed alternatively through the distributing valve into either end of the cylinder assembly so that the hammer inside is made to carry on a reciprocaql motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrate foundation and makes them split into huge pieces.
Specification
Technical specifications |
| Type | B47 |
| Weight | 21.5 (Kg) |
| Length | 550 (mm) |
| Working pressure | 550 (Mpa) |
| Impact energy | ≥76(J) |
| Impact frequency | 21 (Hz) |
| Air consumption | 28 (L/s) |
| Bit Fixation Style | Lock/unlock |
| Shank size | 25×108 (mm) |
| Air pipe inner dia | φ19 (mm) |
Our main products are as below:
Construction & Mining & Rock Drill Tools:
A. DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System.
B. Top Hammer (drill hole dia.: 33 ~ 152mm).
1) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60).
2) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm).
Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm).
1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder.
3) Pneumatic Rock Drill: Hand-held (Y24, TY24C), Air leg (YT28) and Gasoline (YN27J).
4) Expansive Mortar (dia. 30 ~ 35mm); Hydraulic Rock Splitter PD40-250, Aluminum Cylinder.
5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc.
6) Hydraulic Breaker hammer, Paving breaker TPB40, 60, 90 for rock or concrete demolition.
7) PD28, PD45, PD90, PD115/HC20 Excavator mounted rock drilling.
Should you are interested in our products,pls contact us freely .
We do wish we can establish the good and long-term business relations and make us stronger and mutual benefit together.
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
