| Prod Model: |
D=7.2mm Diamond Wire Rope |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
According to Your Request |
| MOQ: |
5 Meter |
| Diameter: |
7.2mm |
| Keyword: |
Diamond Wire Rope |
Product Description

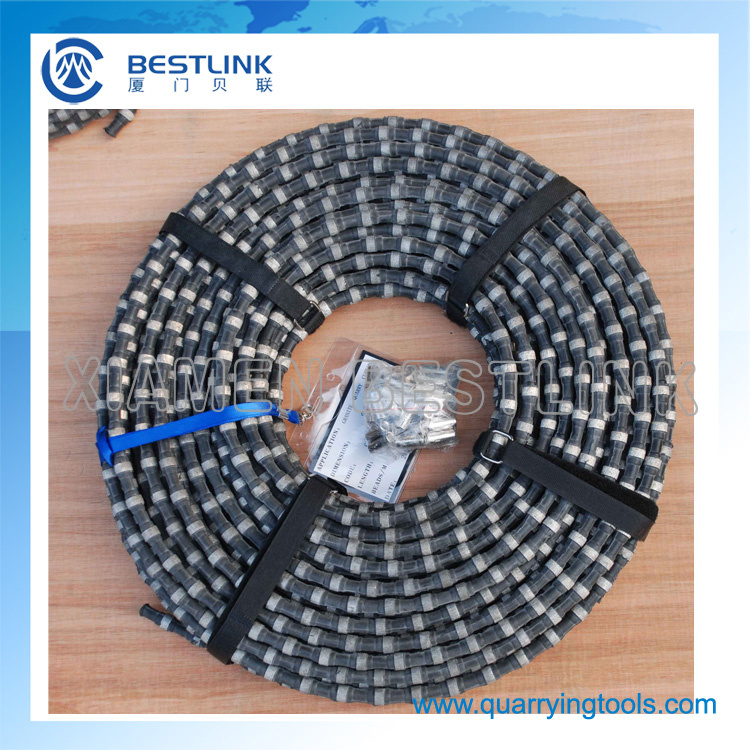

Bestlink Diamond Wire Rope for Granite Quarrying
Diamond wire is safety when operation & benefit in environmental protection.
Diamond Wire / diamond wire saw/ wire saw For Marble Block Squaring /cutting
Bead dia.
(mm) | Model | Fixed by | Beads
/m | Remark | Cutting
material | Line
speed(m/s) | Efficiency
(m2/h) | Life
time(m2/m) |
| Φ11 | BLGQ | High
Performance
Rubber | 40 | Sintered
beads | Soft granite | 22-28 | 4-8 | 10-20 |
Mid-hard
granite | 20-24 | 2-5 | 7-15 |
| Φ11.5 | BLGQ | Hard granite | 18-22 | 1-3 | 5-8 |
High
abrasiveness | 26-30 | 4-8 | 8-15 |
Diamond wire for granite block squaring
| Bead dia.(mm) | Model | Fixed by | Beads
/m | Remark | Cutting
material | Line
speed(m/s) | Efficiency
(cm/h) | Life
time(m2/m) |
| Φ9 | BLGS | Plastic | 37 | Sintered
beads | Soft granite | 24-28 | 50-100 | 10-20 |
| Φ10.5 | Mid-hard
granite | 20-24 | 30-60 | 7-15 |
| Φ11 | BLGS | High-
performance
Rubber | 40 | Hard granite | 18-22 | 20-45 | 5-8 |
High
abrasiveness | 22-26 | 50-100 | 8-15 |
Diamond wire for granite profiling
| Bead dia. (mm) | Model | Fixed by | Beads
/m | Remark | Cutting
material | Line
speed(m/s) | Efficiency
(cm/h) | Life
time(m2/m) |
| Φ8.5 | BLGP | Plastic | 37 | Sintered
beads | Soft granite | 22-28 | 60-80 | 9-15 |
Mid-hard
granite | 20-26 | 30-60 | 7-12 |
| Φ9 | BLGP | Hard granite | 18-24 | 20-35 | 4-9 |
High
abrasiveness | 20-28 | 60-80 | 9-12 |
Diamond wire for granite slab cutting
Bead dia.
(mm) | Model | Fixed by | Beads
/m | Remark | Cutting
material | Line
speed(m/s) | Efficiency
(m2/h) | Life
time(m2/m) | |
| Φ7.3 | BLGST | High
Strength
Plastic | 37 | Sintered
beads | Soft granite | 25-30 | 20-30 | 12-15 | |
Mid-hard
granite | 20-40 | 20-25 | 8-12 | |
| Φ8.5 | BLGST | |
| Hard granite | 18-22 | 15-20 | 5-8 | |
| Φ8.7 | BLGST |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
