| Prod Model: |
BLD-75G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Condition: |
New |
| Model Number: |
Bld-75g/Bld-55g/Bld-37m/Bld-37g/Bld-W11q |
| Loading Port: |
Xiamen, China |
| Manufacturing Arts: |
Electroplating |
| Kind: |
Stone Sawing Machine |
| Saw Blade External Diameter: |
800mm |
| Type: |
Laser Cutting Machine |
| Source Voltage: |
380V |
| Application: |
Stone Industry |
| Automation: |
Semi-automatic |
| Usage: |
Marble |
Product Description

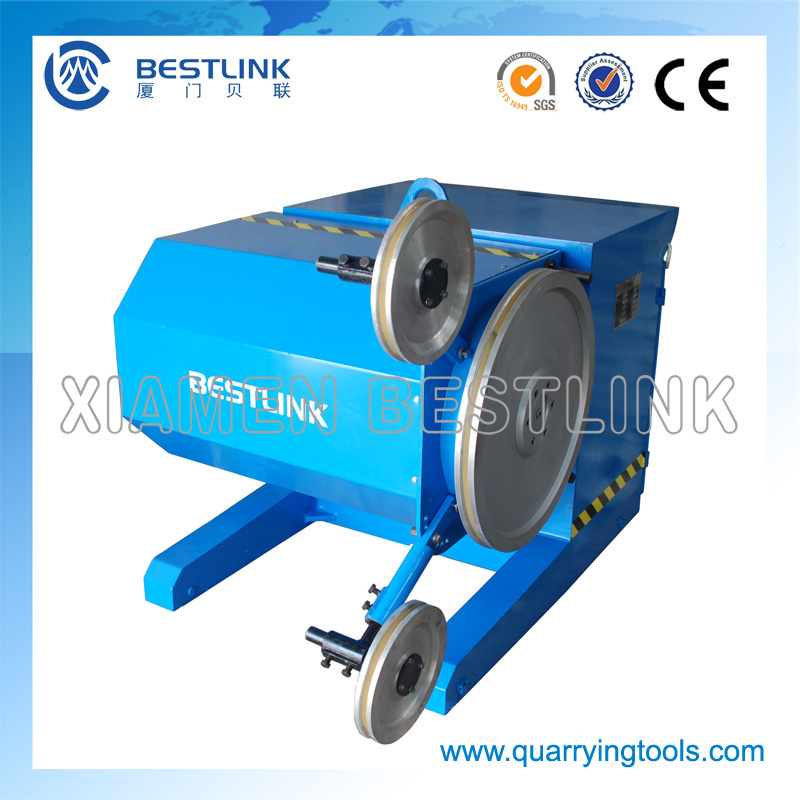

The wire saw can apply horizontal, bertical and acclivitous and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition, and increase the safety factor.
We designed a series of BLD-W products after fully study the cutting condition and technique of diamond wire saw, it used high quality transducer and PLCto realize automatically, reasonably, timely to adjust the cutting techniques.
The electronic feed system, installed on machines, has been specially studied to increase the performance of diamond wire; It allows a constant and uniform feeding during the cutting phase.
The EASYDRIVE system, installed on machines, allows a constant and simultaneous control of diamond wire and advance speed, by means two interfaced inverters. It works fully automated and enables to optimize diamond wire performances as well as to improve the output.
A central gear maintenance free is placed on the rail so that to prevent from mud jam and risk of slipping. The special feed systems gear/cylinders, allows a perfect coupling of the machine on the rail and its perfect displacement on any position, even very slope.
The aluminum flywheel, directly flanged on the motor to eliminate any power loss, can rotate on 360 degree by means hydraulic device to cut on any angulations. The same hydraulic system is used to perform the lateral movement, 45cm preside. Thus it is possible to make two parallel cuts 185cm (140cm+45cm) wide without moving the machine.
| Tachnical Parameter of Diamond Wire Saw Machine |
| BLD-75G | BLD-55G |
| Total power | 78.75Kw | 58KW |
| Main motor power | 75Kw | 55KW |
| Travel motor power | 0.75Kw | 0.75KW |
| Rotary cutting head motor power | 1.5Kw | 0.75KW |
| Shifting cutting head motor power | 1.5Kw | 0.75KW |
| Power supply requirement | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
| Cutting head rotation | 360° | 360° |
| Shifting distance of cutting head | 480mm | 480mm |
| Lateral movement of cutting head | 2000mm | 800mm |
| Length of rails | 2m or 3m | 2m or 3m |
| Main motor rotate speed | 0~980r/min(bu inverter | 0~980r/min(bu inverter |
| Linear speed of drive flywheel | 0~40m/s | 0~40m/s |
| Speed of machine traveling | 0~120m/h | 0~120m/h |
| Available working temperature | -150°C~+400°C | -150°C~+400°C |
| Dimension of the machine(mm) | L=1940,W=1440,H=1485 | L=1925,W=1440,H=1485 |
| Weight | 2.5T | 2.2T |
| Use for | granite or marble quarry | granite or marble quarry |
| BLD-37M | BLD-37G | BLD-W11Q |
| 40KW | 40KW |
|
| 37KW | 37KW | 11KW |
| 0.75KW | 0.75KW | 0.37KW |
| 0.75KW | 0.75KW |
|
| 0.75KW | 0.75KW |
|
| AC380±10%@ 50Hz | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
| 360° | 360° | 360°(by band) |
| 480mm | 480mm |
|
| 1800mm | 1800mm |
|
| 2m or 3m | 2m or 3m | 2m |
| 0~980r/min(bu inverter | 0~980r/min(bu inverter |
|
| 0~40m/s | 0~40m/s | 0~40m/s |
| 0~90m/h | 0~120m/h | 0~30m/h(by inverter |
| -15°C~+40°C | -15°C~+40°C | -15°C~+40°C |
| L=1925,W=1240,H=1430 | L=1925,W=1240,H=1430 | L=12200,W=550,H=640 |
| 2.1T | 2.1T 0.368T |
|
| marble quarrying | granite & marble quarry | block squaring |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
