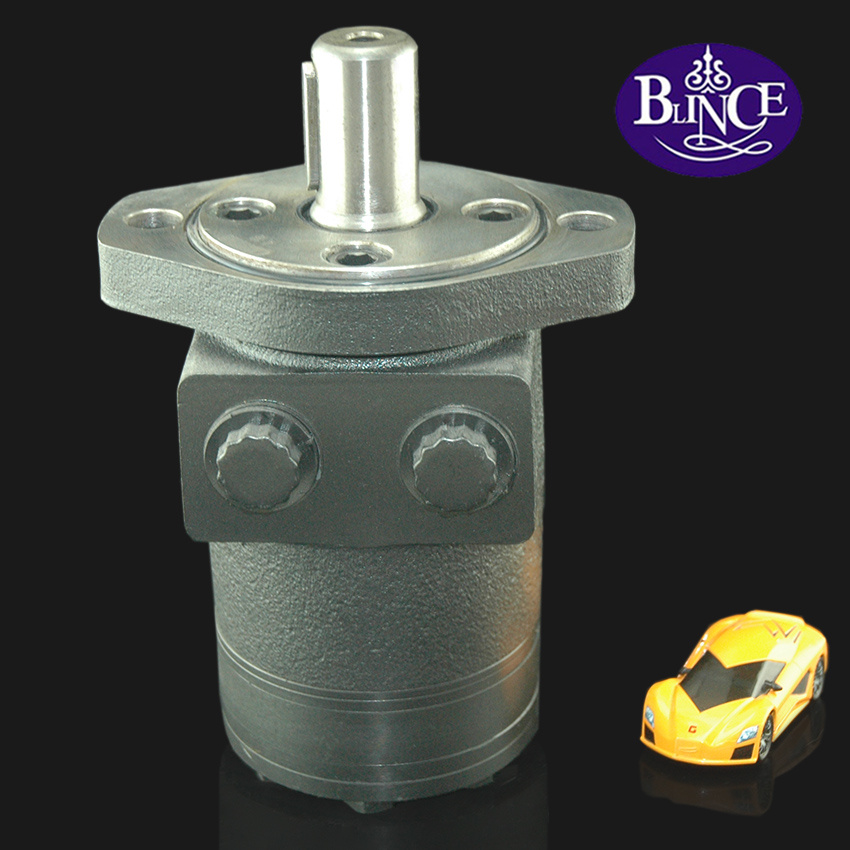

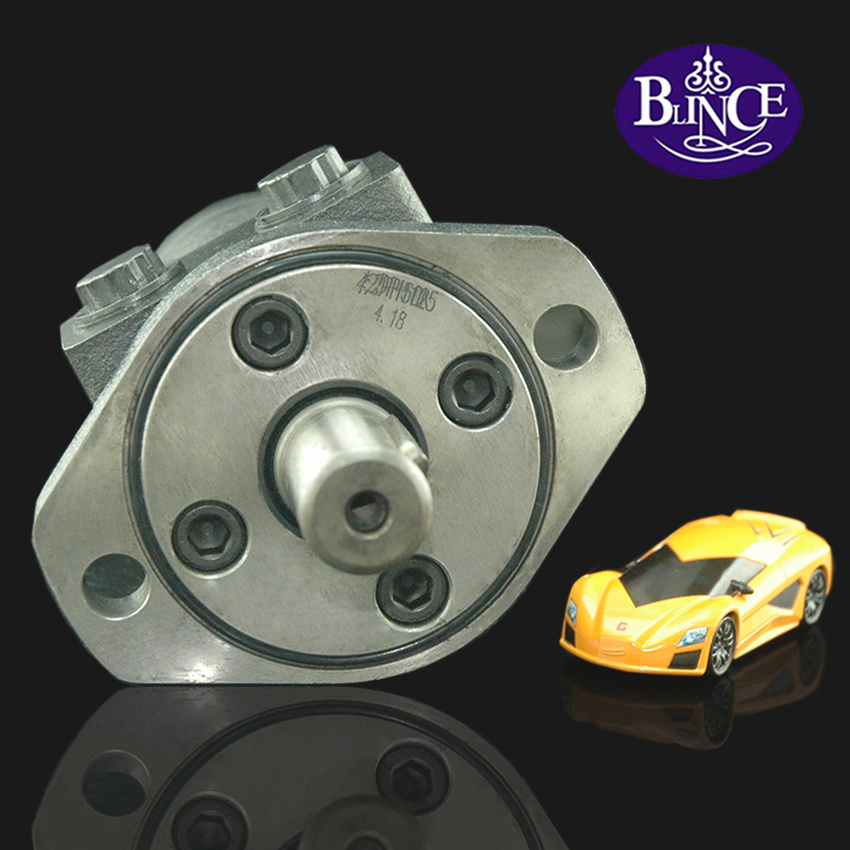

Blince Omph Hydraulic Orbit Motor for Drilling Machinery Parts

Name: Blince Omph Hydraulic Orbit Motor for Drilling Machinery Parts
Brand: tool-buy.com
SKU: 703341622
Availability: InStock
Rating: 4.3 (86 reviews)

Price:	US $ 75-80/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Dongguan Blince Machinery & Electronics Co., Ltd.

Showroom Product Company Profile

Prod Model:	OMPH 36/50/80/100/125/160/200/250/315/400/500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Displacement(Cc/Rev):	160
Continuous Max Speed(Rpm):	155
Continuous Max Torque(N.M):	490
Hole Middle Distance:	106.4mm
Cylinde Parallel Shaft Size:	25mm
Flange:	Standard 2 Hole Diamond Flange
Max Pressure(Bar/MPa):	140/14
Ports And Drain Port:	G1/2, G1/4
Material:	Rust-Proof Cast Iron
Warranty:	One Year
Hydraulic Power Units:	Gear Pump
Hydraulic Valve:	Hydraulic Motor
Auxiliary Components:	Hydraulic Motor
Hydraulic Fluid:	Hydraulic Motor
Flow Control Valve:	Hydraulic Motor
Pressure Control Valve:	Orbital Motor
Hydraulic Control Unit:	Hydraulic Motor
Hydraulic Motor:	Omp Hydraulic Motor
Hydraulic Actuator:	Hydraulic Motor

Product Description

Blince OMPH Series Hydraulic Motor

Typical feature
1. High pressurre of shaft seal
3. Phosphating coating to protect from rusting
2. Freely disassemble leakage ports
4. Needle bearing
5. Omp500 be Compatible With M+S MR/MLHR

type		OMP OMPH 36	OMP OMPH 50	OMP OMPH 80	OMP OMPH 100	OMP OMPH 125	OMP OMPH 160	OMP OMPH 200	OMP OMPH 250	OMP OMPH 315	OMP OMPH 400	OMP OMPH 500
Geometric displacement		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max.speed.(rpm)	con.	1500	1150	770	615	490	383	310	250	192	155	120
Max.speed.(rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max.torque(N.m	cont.	55	100	146	182	236	302	360	383	375	360	385
Max.torque(N.m	int.	76	128	186	227	290	370	440	460	555	525	560
Max.output(KW)	cont.	8.0	10.0	10.0	11.0	10.0	10.0	10.0	8.5	7.0	6.0	5.0
Max.output(KW)	int	11.5	12.0	12.0	13.0	12.0	12.0	12.0	10.5	8.5	7.0	6.0
Max.pressure Drop(Mpa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
Max.pressure Drop(Mpa)	int	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
Max.flow(L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max.flow(L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
OMP50-2AD (OMP-1510310)							OMP50-2AD (OMP-1510610)
OMP50-2CD (OMP-1510300)							OMP50-2CD (OMP-1510600)
OMPH50-H2RS (OMP-1517041)							OMP50-2ED (OMP-1510330)
OMP50-2ED (OMP-1510630)							OMP50-4BD (OMP-1515001)

Contact detail as follows
Jamse Chen
Tel: 86-0769-85156586
cell:86-18707812826
Fax: 86-0769-85150786

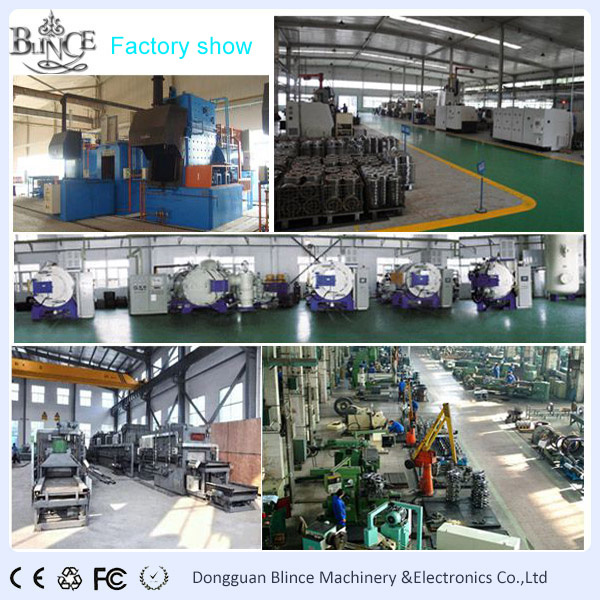

Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid m...MoreEstablished in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30, 000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Blince main product is orbit motor like (OMM/OMP/OMR/OMH/OMT/OMS/OMV), Radial Piston Motor(NHM 1/2/3/6/8/11/16/31), hydraulic pump (PV2R series, V/VQ series, SQP series) valve and a set of hydraulic system.

Our product widely application for fishing machinery, agricultural machinery, engineering machinery, mining machinery, industrial machinery, aviation and transport machinery et

Blince hydraulic motor Can perfect replace:

Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor

Eaton: J (129-) series, H(101-) series, S(103-) series, T(158-)series, 2000(104-) series, 6000 series orbit motor

White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor

Parker: TE and TG series hydraulic motor
