| Price: | US $ 1-3950/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |

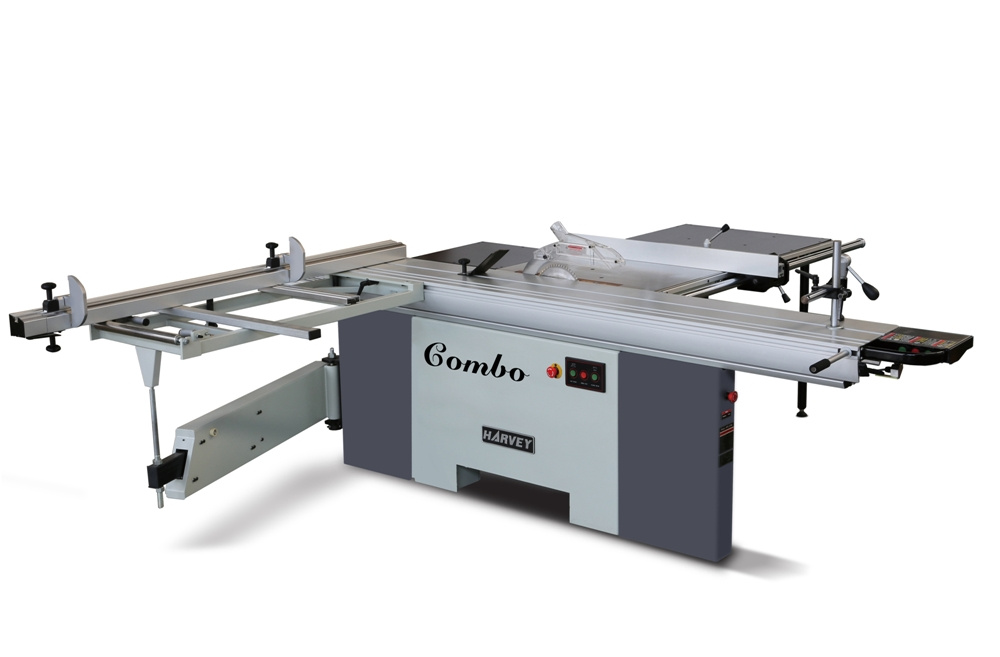

| Prod Model: | C-2800E |
|---|---|
| Weight: | 685kgs |
| Type: | Table Panel Saw |
| Layout: | Horizontal |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Precision: | Precision |
| Certification: | CSA |
| Color: | RAL7035 |
Features
• Laser cut heavy steel frame with thorough powder coating
• Standard scoring system for tear-free cutting
• Oversized spindle in precision sealed and permanent lubrication ball bearings
• Dynamically balanced spindles perform at extremely low noise and hardly felt vibration
• Precision and anodized sliding table made of T-6 Aluminum Alloy
• Outrigger table with Telescopic cross cut fence
• Chromed and hardened solid rip fence rail
• Standard camlock hold down and trimming shoe
• Powerful 4kw/3ph motor
• User-friendly dual control panels
• Ready for dado cutting
Optional Equipment
• Digital readout for rip fence
• "Shark" overhead guarding system
• Digital readout for cross cut fence
Specifications
Models
| C-2800E CE version |
Sliding table size
| 2800 x 360mm |
Sliding table travel
| 3000mm |
Maximum cutting length | 2800mm
|
Main table size
| 800 x 495 mm
|
Table height
| 860mm |
Crosscut table size | 1200 x 510mm |
Main blade size
| 250mm/305mm |
Main blade arbor size | 30mm |
Scoring blade Size (dia.x arbor size)
| 120 x 20mm |
Cutting height with scoring @0°/45°
| 70/ 48mm (250mm Blade) |
Cutting height without scoring @90°/45°
| 97.5 / 69mm (305mm Blade) |
Maximum dado width
| 20mm |
Spindle speed
| 4500RPM |
Scoring spindle speed
| 6500RPM |
Max. ripping capacity
| 1270mm |
Dust collection ports
| 100mm on cabinet, 50mm on blade guard |
Main motor power
| 4kW /400V/3PH |
Scoring motor power
| 0.55KW |
Machine weight
| 615kgs |
20' full container loading quantity | 10 units |
40' full container loading quantity | 20 units |
