| Prod Model: |
HW110LC-30 |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| Certification: |
CSA |
| Type: |

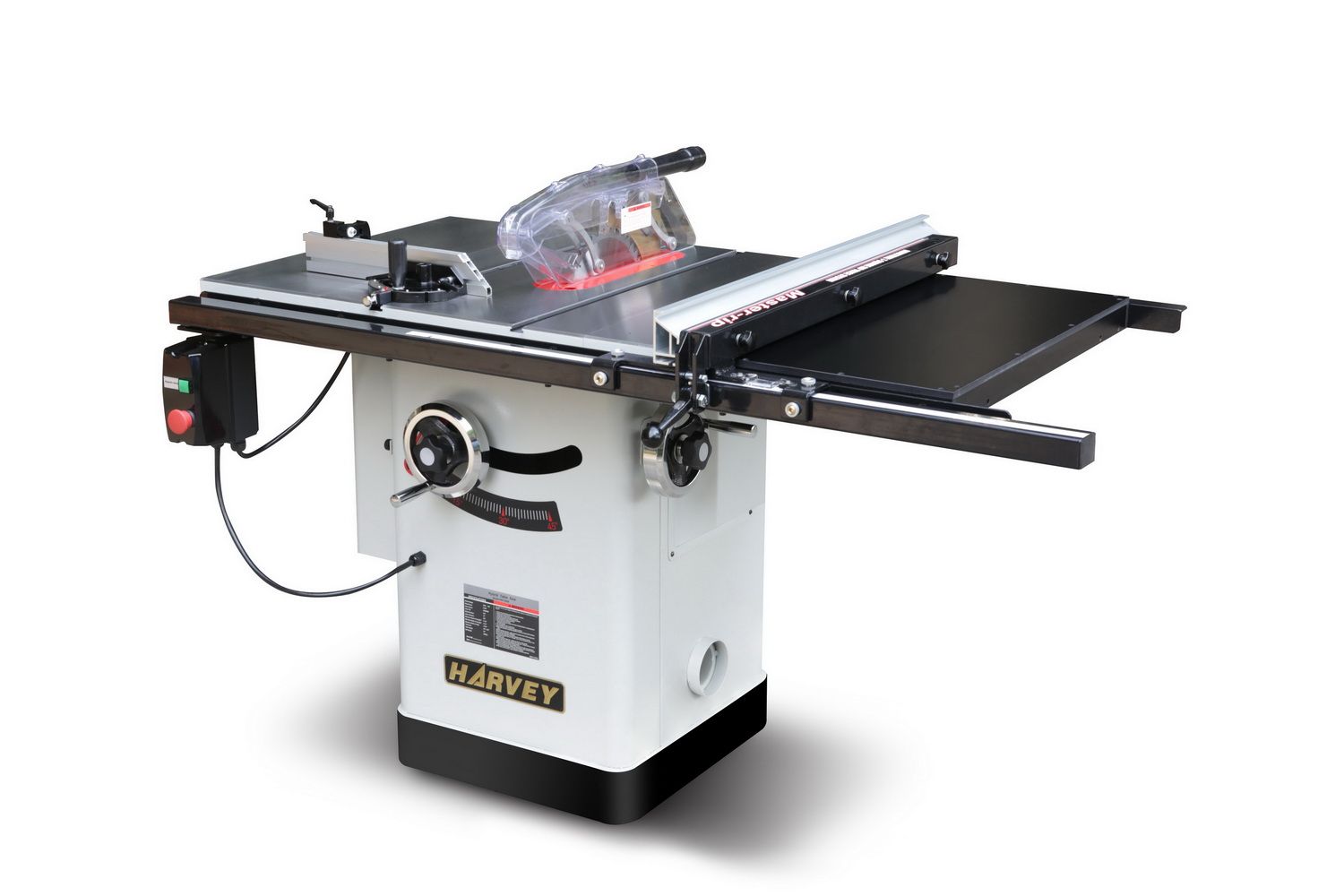

Table Saw |
| Layout: |
Cabinet |
| Color: |
Ral7035 |
Product Description
Features:
• Precision ground cast iron worktable and extension wings
• 2.5HP TEFC motor
• True riving knife device secures maximum safety
• Plug-in quick change system makes blade guard & riving knife change-over within a few seconds
• Widely spaced and cabinet-mounted massive trunnion
• Built-in dust collection system makes cutting clean and enjoyable
• Mitre gauge , standard insert and dado insert
• Deluxe aluminum high-low rip fence system for high accuracy and reliability
• 4" dust collection port on cabinet
• Blade guard with dust suction port
• Right hand extension board
Optional Equipment
• Universal mobile base MB-600
• Tenoning jig
• Sliding table attachment ST-1400
• Router table attachment RT-100
• 8" dado blade set
• Zero clearance insert ZC-10C
• 1-1/2" Vacuum hose kit
• Shark S-12S overhead blade guard system
Specifications:
Models | HW110LC-30 |
Main table | 20" x 27" |
Extension wings (2) | 10" x 27" |
Blade diameter | 10" |
Electric motor(TEFC) | 2.5HP/220V/60HZ/1PH or 2.5HP/220V/50HZ/1PH |
Spindle speed | 3850RPM |
Arbor tilt | Left |
Max. cut depth@90° | 3-1/8" |
Max. cut depth@45° | 2-3/16" |
Max.rip cut(blade right) | 31-1/2" |
Max.rip cut(blade left) | 11-3/8" |
Dado diameter | 8" |
Dado Max. width | 13/16" |
Arbor size | 5/8" (or 5/8" with 30mm adaptor) |
T-slots(2) | 3/4" x 3/8" |
Dust collection port | 4" |
Belts | V-belts |
Switch | Magnetic |
Worktable height | 34" |
Machine weight | 408lbs |
Machine dimensions | 62" x 38-3/4"x41-3/4 " |
With over 18 years of experience in machineries. Harvey believes that quality is always the only thing a manufacturer should really care about. The quality includes the best performance, the longest durability engineering of machines, as well as satisfactory services for the customers.
As a perfectionist, Harvey spent extraordinary time and efforts on the performance, accuracies, reliability and workmanship of our woodworking machines. On this web, we are presenting a selective fine line of Table Saws, Shapers and Accessories. Thousands of these machines were sold worldwide and they are proven to have to best value for professional users. We are proud to be able to serve the wooding industry and generate constant benefits for our customers.
Also, we are introducing our newest innovation on this web: Tin Coating technology. This patented coating process dramatically improves the worktable quality of the woodworking.
We thank you for your interest in our machines and look forward to working with you.
