Prod Model: |
HW110WSE |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Table Panel Saw |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Precision: |
High Precision |
Certification: |
CE |
Layout: |
Cabinet |
Color: |
Ral7035 |

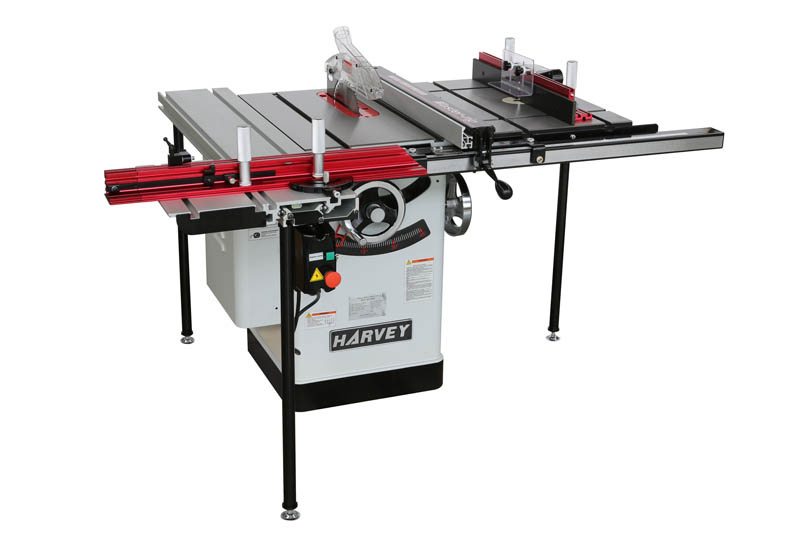

Product Description
Features:
Built-in sliding table and router table
Widely spaced and cabinet mounted massive trunnion
Powerful 3HP TEFC motor
True riving knife system secures maximum safety
Plug-in quick change device makes blade guard/riving knife change-over within a few seconds
Magnetic safety switch with thermal overload protection
Mitre gauge with fence, standard isert and dado insert
Deluxe rip fence system for high accuracy and reliablity
Optional equipments:
Universal mobile base MB-600
Zero clearance insert ZC-10L
Tenoning jig TJ-80
Rear extension table RT-10
8" dado blade set
Shark S-12S overhead blade guard system
Specifications
Model | HW110WSE CE version |
Main table | 508x 685mm |
Blade diameter | 250mm |
Electric motor(TEFC) | 2.2KW/220V/50HZ/1PH |
Spindle speed | 4150RPM |
Arbor tilt | Left |
Max.cut depth@0° | 70mm |
Max.cut depth@45° | 50mm |
Max.rip cut(blade right) | 742mm |
Dado diameter | 203mm |
Dado Max. width | 20.6mm |
Arbor size | 30mm |
Dust colletion port | 100mm |
Belts | 3 x V-belts |
Switch | Magnetic |
Work height | 860mm |
Machine weight | 240kgs |
Floor space needed | 1682 x 1200mm |
With over 18 years of experience in machineries. Harvey believes that quality is always the only thing a manufacturer should really care about. The quality includes the best performance, the longest durability engineering of machines, as well as satisfactory services for the customers.
As a perfectionist, Harvey spent extraordinary time and efforts on the performance, accuracies, reliability and workmanship of our woodworking machines. On this web, we are presenting a selective fine line of Table Saws, Shapers and Accessories. Thousands of these machines were sold worldwide and they are proven to have to best value for professional users. We are proud to be able to serve the wooding industry and generate constant benefits for our customers.
Also, we are introducing our newest innovation on this web: Tin Coating technology. This patented coating process dramatically improves the worktable quality of the woodworking.
We thank you for your interest in our machines and look forward to working with you.
