| Price: | US $ 2.38/Piece |
|---|---|
| Min Order: | 5/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | All Sizes |
|---|---|
| Shipment: | FedEx,DHL,TNT,UPS,EMS,etc. |
| Automatic Grade: | Semiautomatic |
| Surface: | Ground or Unground |
| Tolerance: | Finish Grind, Mirror Polish |
| Raw Material: | 100% |
| Delivery Time: | 5 ~ 15 Days |
| Performance Grade: | Top, Middle |
| Process Usage: | CNC Non-Conventional Machine Tools |
| Movement Method: | Contour Control |
| Control Method: | Semi-Closed Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | High-End CNC Machine Tools |
Product Description

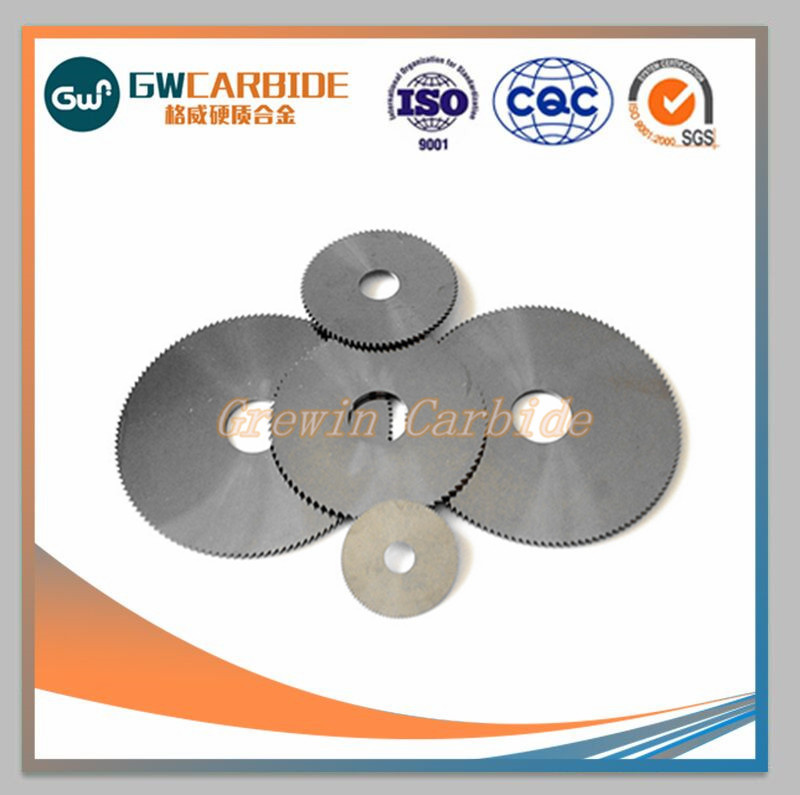

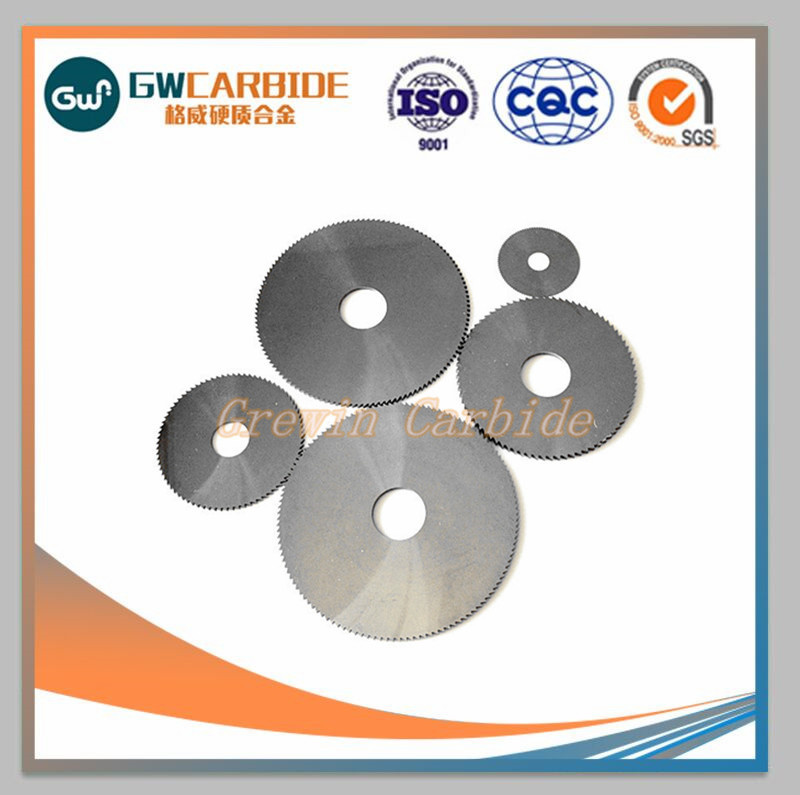

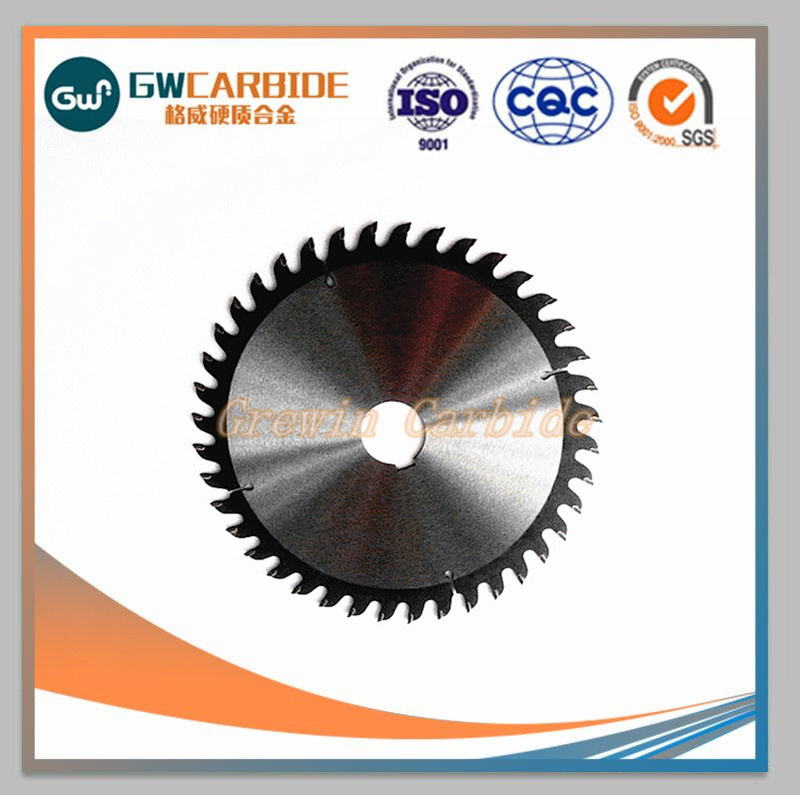

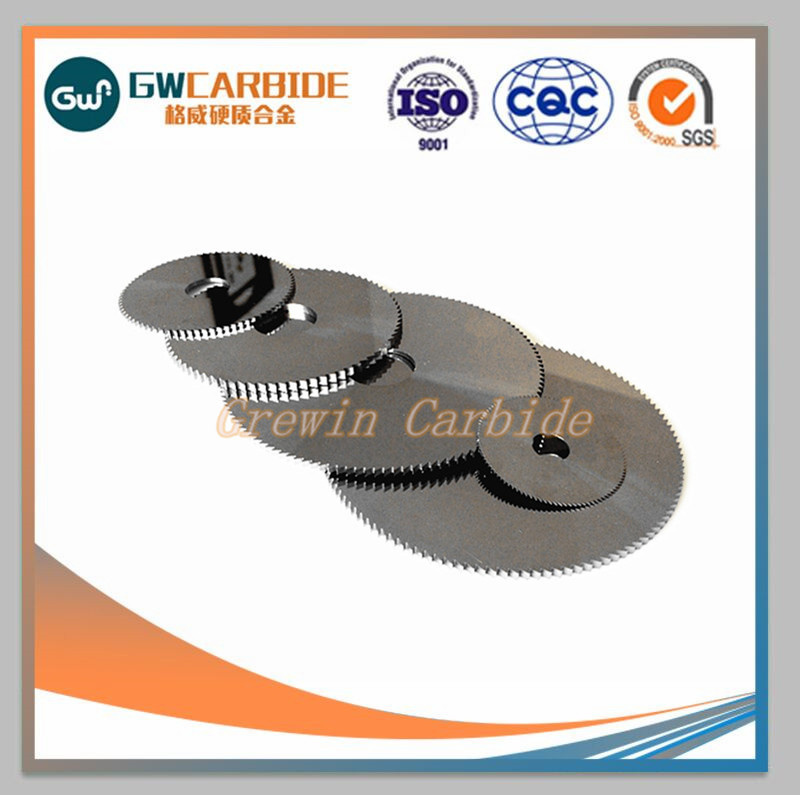

Tungsten carbide saw blade, we choose the fine grain size of carbide grade to ensure the high hardness and good wear resistance.
At the same time, the good strength will be also considered.
It used for cutting steel, stainless steel, aluminum, cast iron and so on.
The thickness is from 0.3mm and the Max Diameter we can do is 300mm.
| External Dia. (mm) | Internal Dia. (mm) | Thickness (mm) | Teeth |
| 110 | 16 | 1.0~7.0 | 10T |
| 150 | 20 | 1.0~7.0 | 24T |
| 180 | 25.4 | 1.0~7.0 | 30T |
| 185 | 30 | 1.0~7.0 | 36T |
| 230 | 35 | 3.0~4.5 | 40T |
| 235 | 40 | 3.0~4.5 | 48T |
| 250 | 50 | 3.0~4.5 | 60T |
| 255 | 80 | 3.0~4.5 | 72T |
| Grade | ISO | Density g/m 3 | Hardness HRA | Bending strength | Performance & Application |
| YG6 | K10 | 14.9 | 89.5 | 2150 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YG8 | K30 | 14.6 | 89 | 2320 | |
| YS2T | M10 | 14.45 | 92.5 | 2800 | Suitable for the finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YN8 | 14.6 | 88.5 | 1710 | Wear corrosion resistance abrasion, especially used in hyperbaric environment. | |
| YN9 | 14.6 | 89 | 1750 |
| yg6/K20 | For the cutting of ordinary wood, Recommend to use resistance welding, and the temperature should not be too high |
| YG8/K30 | For the cutting of the ordinary wood, also for the aluminum, Recommend to use resistance welding, and the temperature should not be too high |
| YK08/K40 | For the cutting of the recycling wood especially for some iron nails and stones in it, Recommend to use resistance welding, and the temperature should not be too high |
| JX5/K20 | For the cutting of the hard wood/recycling wood and aluminum, Recommend to use resistance welding, and the temperature should not be too high |
| YG6X/K10 | For the cutting of the wood specially, recommend to use the high frequency welding |
| YG8X/K10 | For the cutting of the wood and aluminum specially, Recommend to use the high frequency welding |
| K10S | For the cutting of the hard wood specially, Recommend to use the high frequency welding |
| K20S | For the cutting of the aluminum specially, Recommend to use the high frequency welding |
| K10UF | For the cutting of the plywood, board with middle to high density and the compound materials with aluminum and plastic, Use the high frequency welding |
| K20UF | For the cutting of the aluminum specially, Use the high frequency welding |
| K30UF | For the cutting of the stones specially, Use the high frequency welding |
| R06 | For the cutting of the plywood, density board and the sandwich board, Use the high frequency welding |
| R03 | For the cutting of the timber such as shaving board, laminated boar, density board and compound material etc, Use the high frequency welding |
| YC40 | For the cutting of the large cast materials, Recommend to use the high frequency welding |
| YC501 | For the cutting of the steel and the stainless steel, Recommend to use the high frequency welding |
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
