| Prod Model: |
D-JF12801-0710 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Trial Order: |
Accepted |
| Precision: |
High Precision |
| Composition Of The Material: |
6%-10%Co-Wc |
| Suitable For: |
Copper, Cast Iron, Carbon Steel |
| HRC: |
45-65 |
| Polishing: |
as Per Your Demands |
| Flexuaral Structure: |
2800-3600 |
| Maching Mode: |
CNC |
| Expert Market: |
Global |
| Material: |
Carbide Alloy |
Product Description

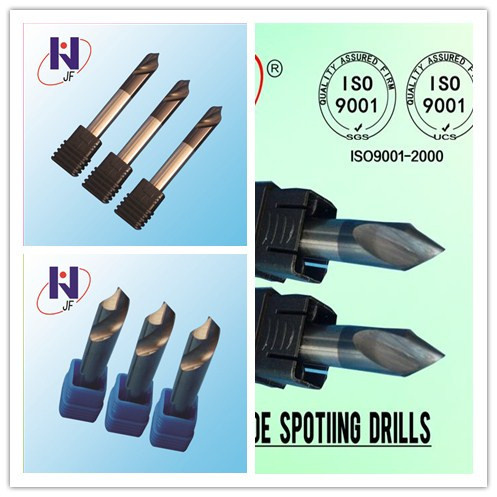

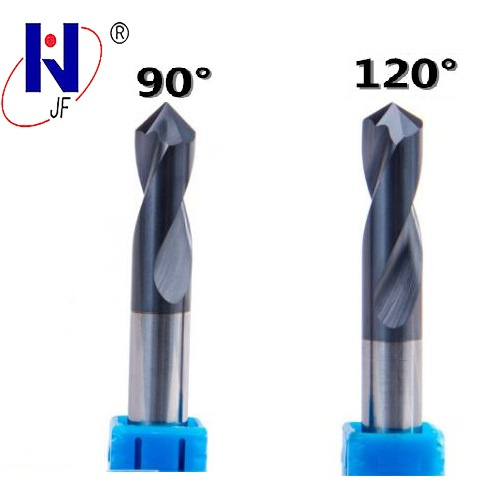

Solid Carbide Cutter Spot Drill Tools
1. Specifications- Chemical composition:
89% Carbide, 10% Co, 1% other material- Physical and machinal properties:
- Density: 14.10-14.45g/cm3
- Hardness: 91.5-92.5HRA
- Flexaral strength: 3500-4000N/mm2
- Grain size: 0.4-1 um
- Working material for steel and high speeding cutting;
- Any your drawings design are acceptable;
2. Raw Materials- SANDVIK of Sweden;
- Teagutec of Korean;
- Kennametal of American;
- Guhring of Germany;
- YG10X of Zhuzhou China;
- WC25F of Taiwan;
3. Our Workshop and Advanced Equipments- Walter CNC machine from Germany;
- ANCA CNC machine from Australia;
- Guhring detecting instrument from Germany;
- MICHEAL DECHAL CNC Machine from Germany;
4. Our advantages:- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;
- Our carbide end mills have long usage life lasting in hardened steels,
- Every product will inspected by Zoller Machine;
- Special CNC solid tools with high quality/ometitive price/good service;
5. Package- One piece in one plastic box, and ten boxes in one carton;
- Any other requested packing are acceptable;
6.Delivery Time
In general,within 6-12 days after received your deposits.
According to the quantity. We are located in Changzhou city of Jiansu China.5 km away formChangzhou Airport and 200 km away form Shanghai. The transportation is very convenient.
7.About us
We are the professional manufacturer of solid carbide tools. We have our own brand-JF. Our high quality and good service get many customer's high comments. All our staffs try our best to serve customers with high quality products and excellent after-sales service. Our purpose is that all the quality control and satisfying every customer.
Our other hot products:
8.Contact us
Mobile: 0086-(0)13616100599
Tel:0086-0519-88995836
If you are intrested in any kinds of our products, pls feel free to contact with us!We can customized tools for you as per your Drawings or Technology Parameters. | Solid Carbide A Type Center Drill 60°90° |
|
|
|
| Item Code(Coated) | Item Code(Uncoated) | Flute Dia h8 | Shank Dia h6 | Flute Length | Full Length |
| D-JF13802-0850T | D-JF13802-0850 | 0.5 | 3.2 | 0.8 | 40 |
| D-JF13802-0080T | D-JF13802-0080 | 0.8 | 3.2 | 1.1 | 40 |
| D-JF13802-0100T | D-JF13802-0100 | 1 | 3.2 | 1.3 | 40 |
| D-JF13802-0130T | D-JF13802-0130 | 1.3 | 3.2 | 1.6 | 40 |
| D-JF13802-0160T | D-JF13802-0160 | 1.6 | 4 | 2 | 40 |
| D-JF13802-0200T | D-JF13802-0200 | 2 | 5 | 2.5 | 40 |
| D-JF13802-0250T | D-JF13802-0250 | 2.5 | 6.3 | 3.1 | 45 |
| D-JF13802-0320T | D-JF13802-0320 | 3.2 | 8 | 3.9 | 50 |
| D-JF13802-0400T | D-JF13802-0400 | 4 | 10 | 5 | 55 |
| D-JF13802-0500T | D-JF13802-0500 | 5 | 12.5 | 6.3 | 60 |
| D-JF13802-0630T | D-JF13802-0630 | 6.3 | 16 | 8 | 70 |
| D-JF13802-0050T | D-JF13802-0050 | 0.5 | 3.2 | 0.8 | 45 |
| D-JF13802-0080T | D-JF13802-0080 | 0.8 | 3.2 | 1.1 | 45 |
| D-JF13802-0100T | D-JF13802-0100 | 1 | 3.2 | 1.3 | 45 |
| D-JF13802-0130T | D-JF13802-0130 | 1.3 | 3.2 | 1.6 | 45 |
| D-JF13802-0160T | D-JF13802-0160 | 1.6 | 4 | 2 | 45 |
| D-JF13802-0200T | D-JF13802-0200 | 2 | 5 | 2.5 | 50 |
| D-JF13802-0250T | D-JF13802-0250 | 2.5 | 6.3 | 3.1 | 55 |
| D-JF13802-0320T | D-JF13802-0320 | 3.2 | 8 | 3.9 | 60 |
| D-JF13802-0400T | D-JF13802-0400 | 4 | 10 | 5 | 65 |
| D-JF13802-0500T | D-JF13802-0500 | 5 | 12.5 | 6.3 | 75 |
| D-JF13802-0630T | D-JF13802-0630 | 6.3 | 16 | 8 | 80 |
Xute Jifeng Tools Factory is located in Changzhou, Jiangsu, China. XinBei XuTe JiFeng tools factory is a professional manufacturer of NC Tools with well-equipped testing equipment and strong technical force, is established in 2006, and has enjoyed good reputation in cutting tools field for 5 years.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. We professionally produce "LENO"brand sets of tools, tools of machine and CNC surrounding affiliated fittings series.
We specialize in the following products:
Tool holders
Cutter bars
Boring tools
Turing tools
Milling tools
Thread tools
Corn mills
Tungsten steel end mills
Cutter heads
Drill bits
Collets
Inserts
Collet chucks
Chucks
Nuts
Wrenches
And Other machine accessories
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.
"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.
Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
