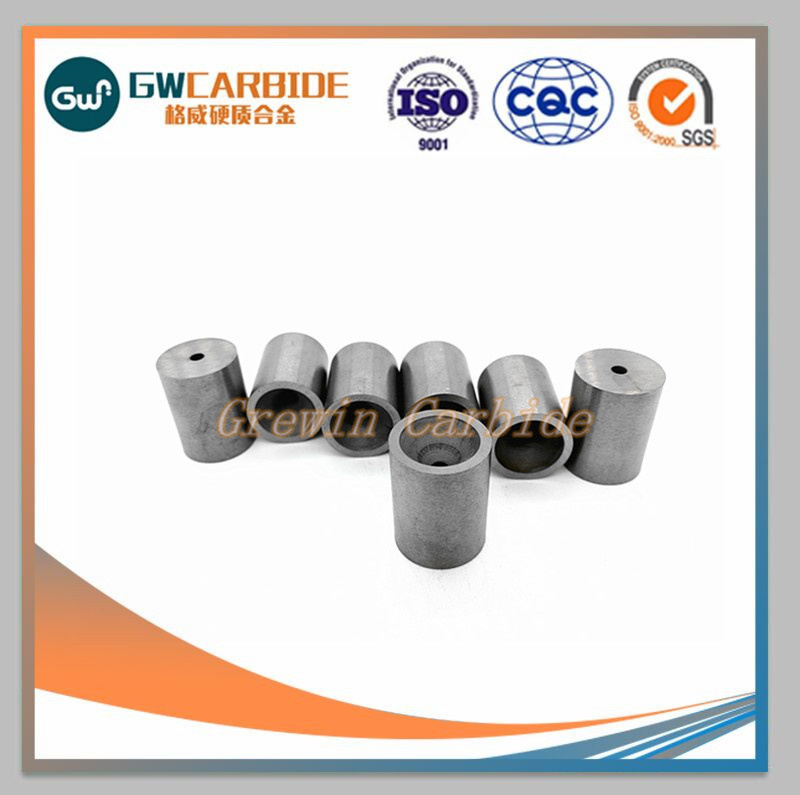

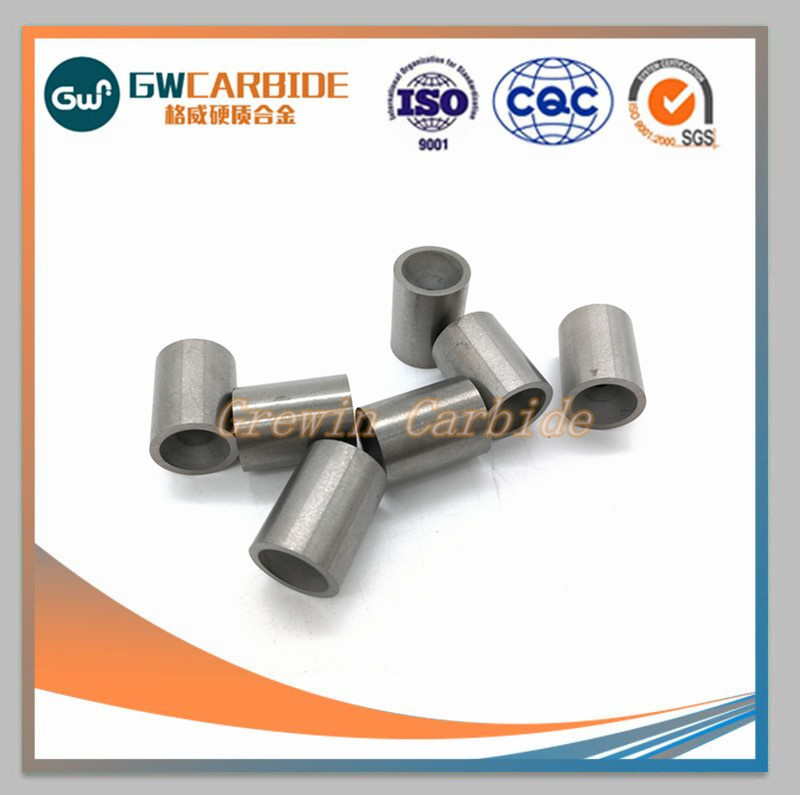

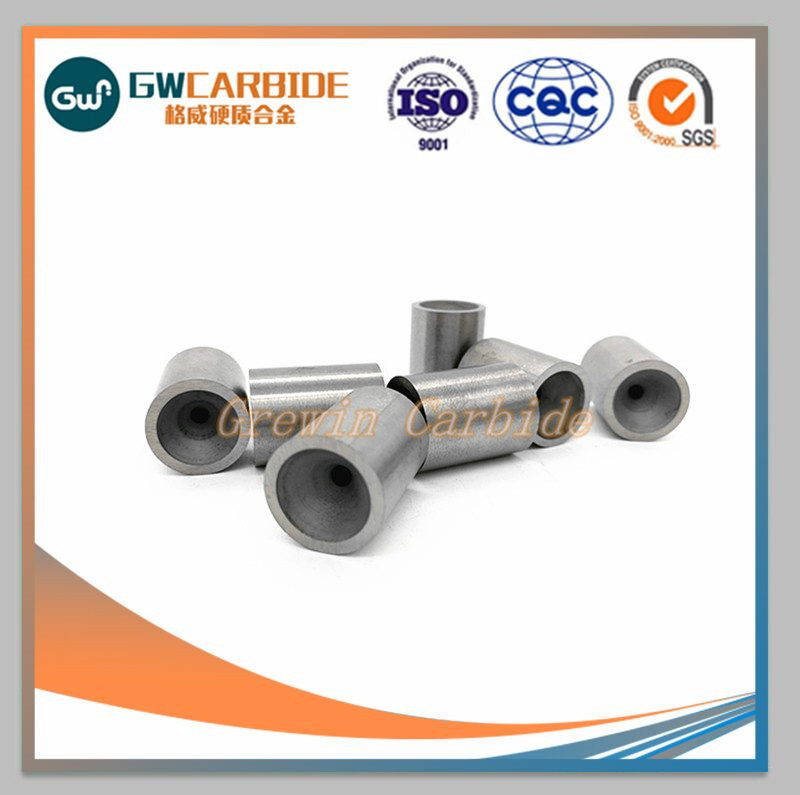

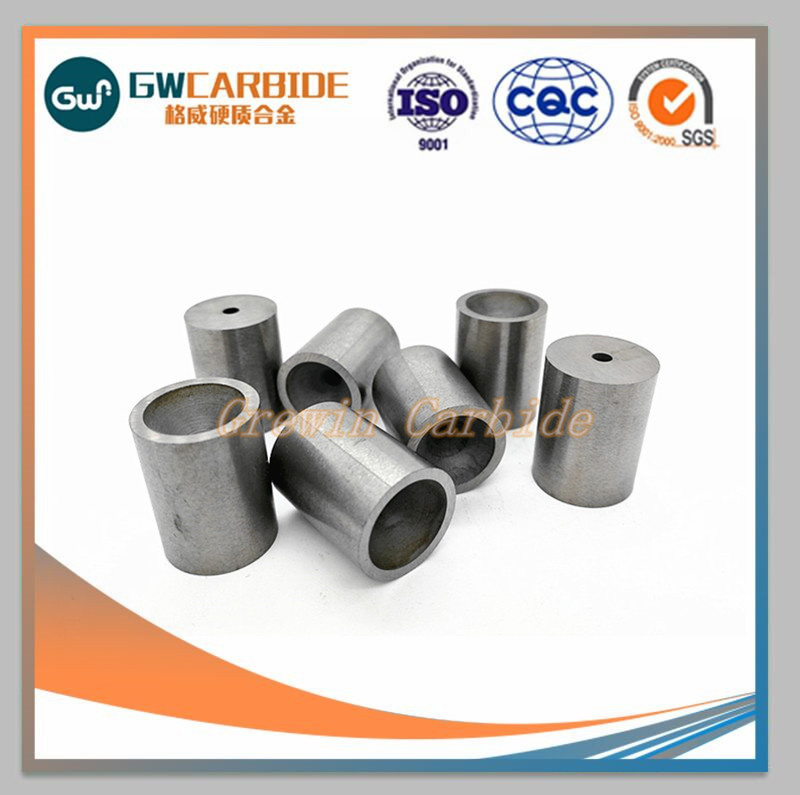

Carbide Hard Wire Drawing Dies for CNC Machines
| Price: |
US $ 55-5816 |
| Min Order: |
116 |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
All sizes |
| OEM/ODM: |
Accepted |
| Grade: |
Yg6,Yg8,G6X,Yg11,Yg15 ,Yl10.2 etc |
| Model Type: |
S11, S13, W104, W105, 6X4, 9X6, 16X13, etc |
| Surface Treatments: |
Blank & Polished |
| Delivery Time: |
15-25 Days |
| Features: |
Good Wear Resistance, High Precision |
| Shaping Mould: |
Punching Mould |
| Brand: |
Grewin |
| Sample: |
Free |
| Certifciates: |
ISO9001-2008,SGS |
| Application: |
Electronic |
| Material: |
Tungsten Carbide |
| Hole Type: |
Customized |
| Cavity: |
Customized |
| Surface Treatment: |
Polished & Blank |
| Certification: |
SGS |
Product Description
1. Our advantages1 100% raw material
2 HIP Furnace Sintered
3 High precision grinding
4 Bore size up to 0.1mm
5 Produce finished dies with steel case
6 Fast delivery
7 Professional manufacturer of tungsten carbide products with 20 years experience.
8 Complete Quality Control System and strict inspection.2. Our Mould sizesType W
Type S11
Type S12
Type S13
Type 22
Type 23
Type S30
Type S40
Type S41
Type S42
Type S60
Type R3. Grade recommendation | Properties of grade |
| Grade | Density | Hardness (HRA) | TRS | Grain size |
| (g/cm3) | (MPa) | (um) |
| YL01 | 15.25 | 93.5 | 3300 | 0.8 |
| YL10.2 | 14.5 | 92 | 4000 | 0.8 |
| YG6 | 14.95 | 90 | 2400 | 1.6 |
| YG6X | 14.95 | 91.5 | 1900 | 1 |
| YG8 | 14.75 | 89.5 | 2800 | 1.6 |
| YG11 | 14.4 | 87.5 | 3100 | 1.6 |
| YG15 | 14.05 | 87 | 3000 | 1.6 |
| Application recommended |
| Grade | Applications recommended |
| YL01 | Used for drawing diameter less than 1.5 mm of steel, tungsten and molybdenum wire under high speed drawing as well as nonferrous metals with high requirement on surface finish. |
| YL10.2 | Used for drawing diameter between 1.5 mm to 10mm of steel, tungsten and molybdenum wire under high speed drawing as well as nonferrous tubes with high requirement on surface finish. |
| YG6 | Used for drawing the diameter less than 20mm of steel, nonferrous metals and its alloy wire or bar under a moderate stress. It also used for tubes less than diameter of 10mm. |
| YG6X | Used for drawing the steel wire, nonferrous metals and its alloy wire or bar under the requirement of good wear resistant. |
| YG8 | Used for drawing diameter less than 50 mm of steel, nonferrous and its alloy wire or bar under a moderate stress. It also used for tubes under 35mm. |
| YG11 | Used for drawing diameter less than 60 mm of steel, nonferrous and its alloy wire or bar under a moderate stress. It also used for tubes under 35mm. |
| YG15 | Used for steel pipe and steel bar as well as alloy steel bolt and head forging of rivet under a certain big stress |

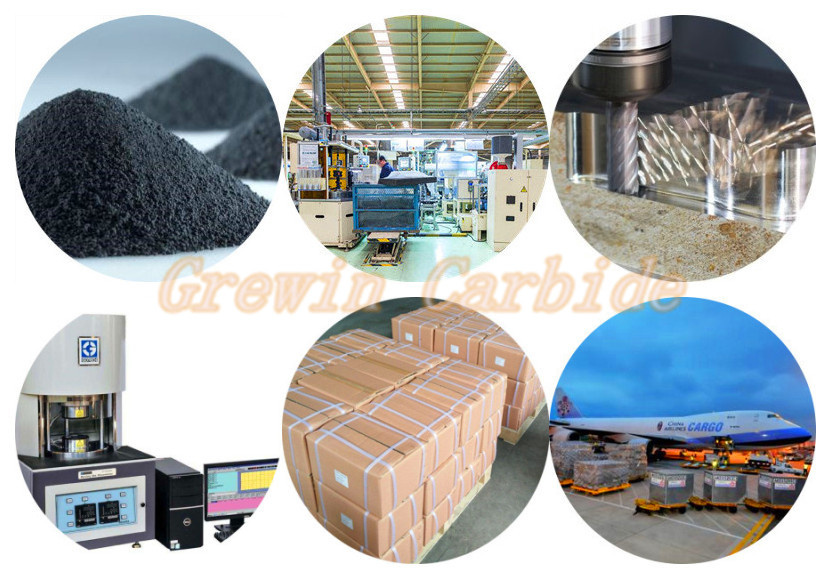

4.Our ServicesMore than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc. 5.Company InformationZhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
6.Contact Alice
Waiting for your ealry contact and inquiry here!
What we do is not a deal, but create mutual happy cooperation!
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " Do the best to customer". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
