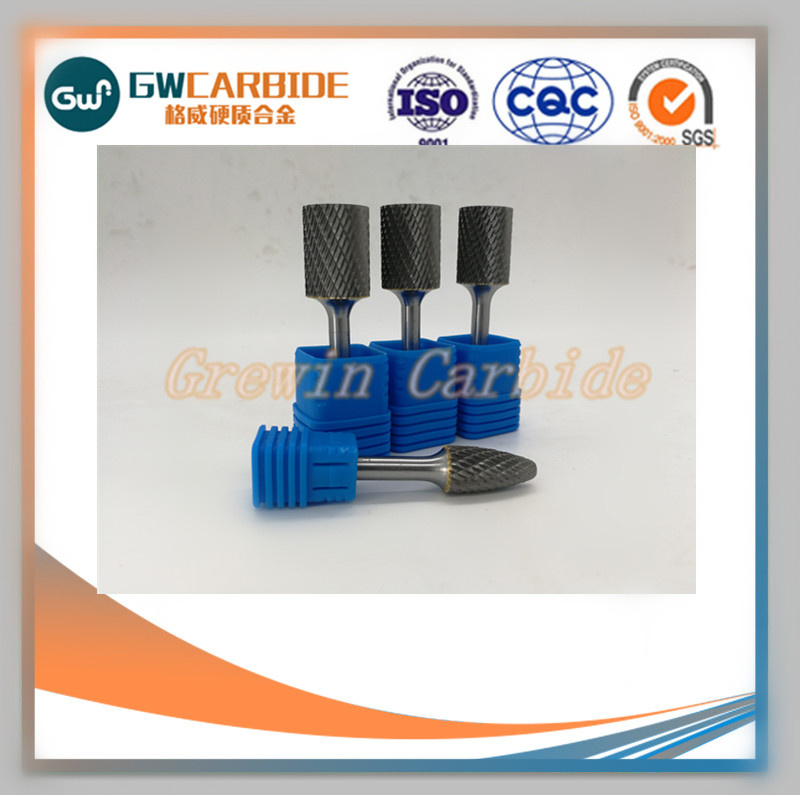

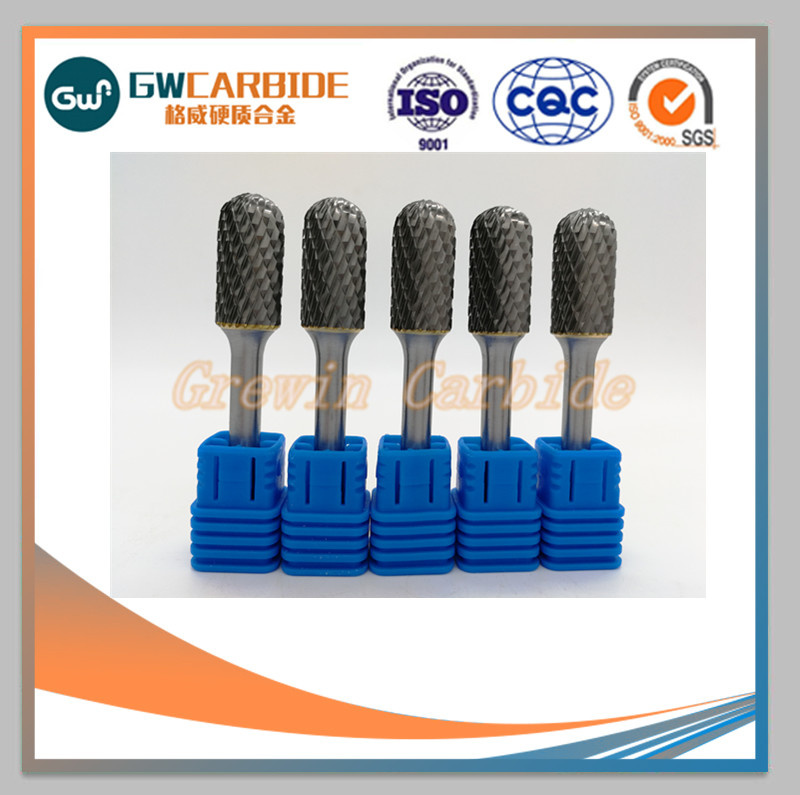

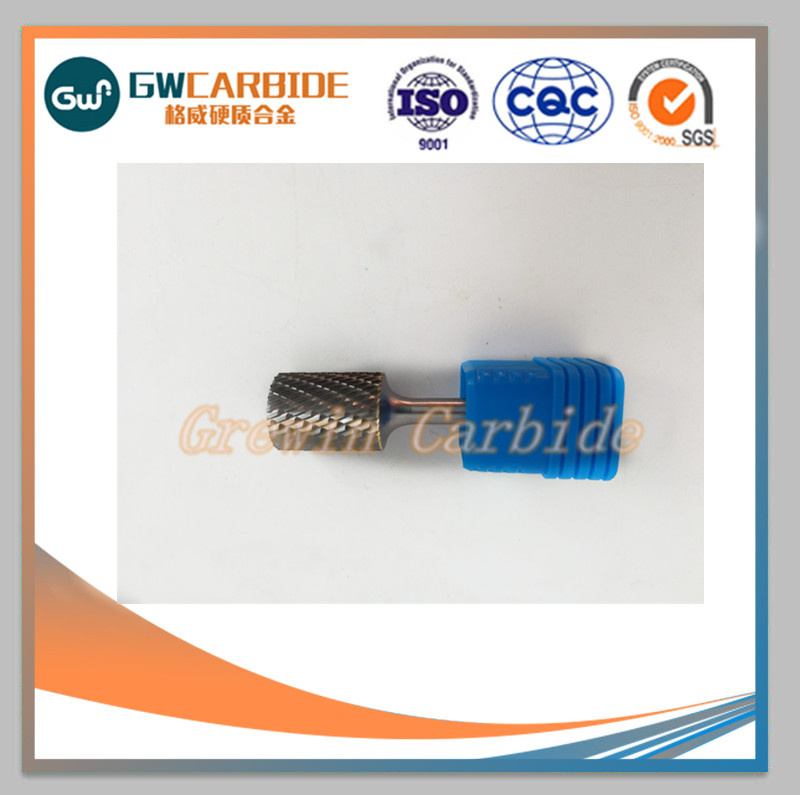

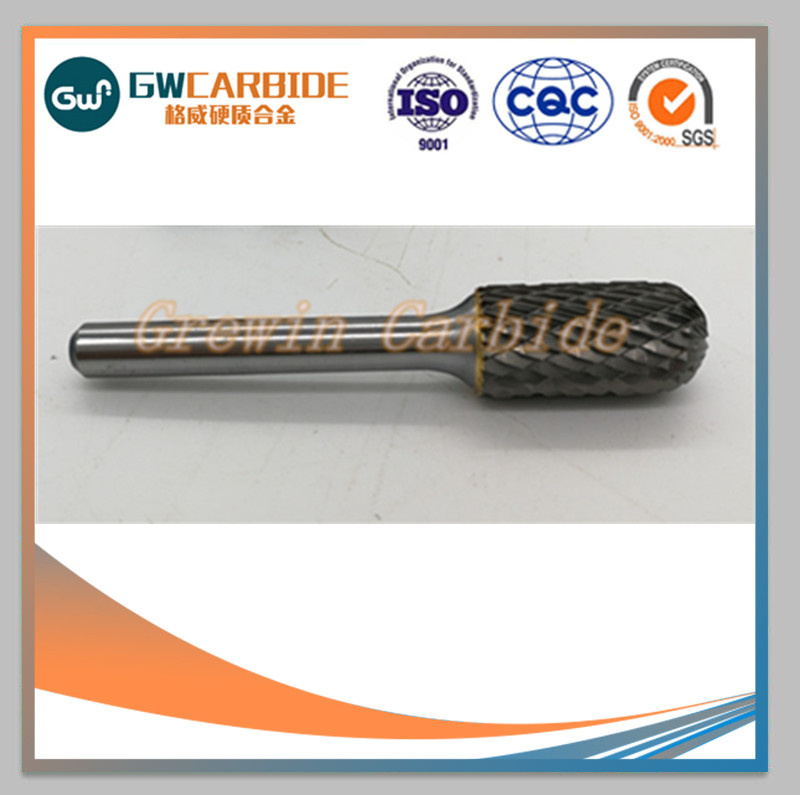

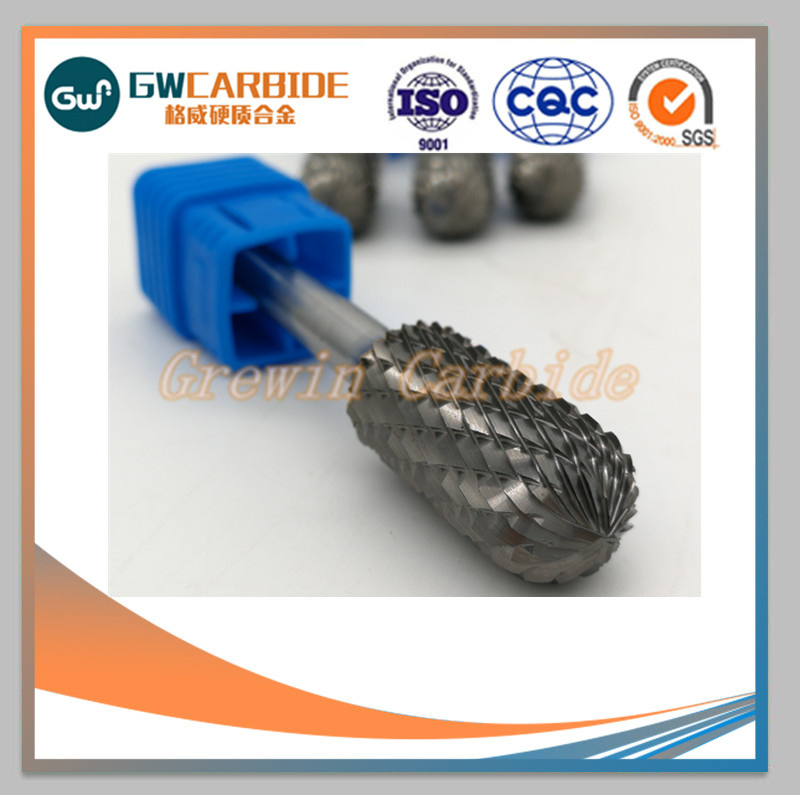

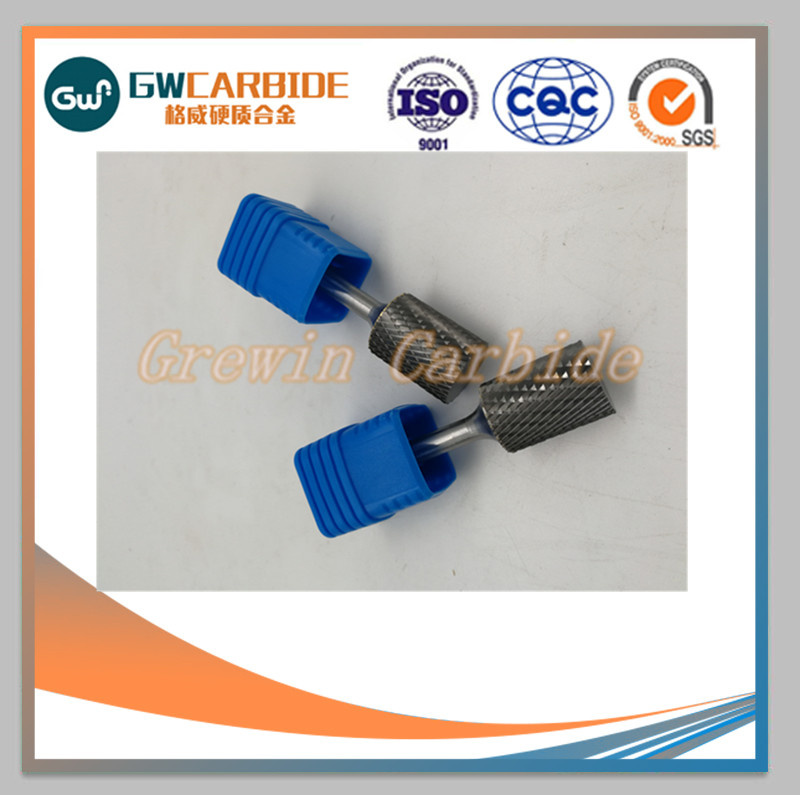

Carbide Solid Burrs Set Cutting Tools
| Price: |
US $ 2.1-2.75/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
All sizes |
| Types: |
a,B,C,D,E,F,G,H,J,K,L,M,N,X,Y Ma |
| Cutting Shape: |
Single Cut, Double Cut,Rough Cut,Fine Cut |
| Materials: |
100% New |
| Sample: |
Free |
| OEM/ODM: |
Accepted |
| Model No: |
A0313m03,C1020m06,D0403m04,B0616m06 etc |
| HS Code: |
8209009000 |
| Certificates: |
ISO9001-2008,SGS |
| Work Piece: |
Steel, Aluminium, Light Alloy, Brass, Copper, Zinc |
| Brand: |
Grewin |
Product Description
1. Product Description
Rotary Burrs also called debur, is a grinding tool used by Pneumatic or electric Grinder, which is used for milling,deburring, break edges, trim process welding seams, and surface processing.
2. Material of workpiece
High-alloy steel, non-rusting steel,acid-resistant steel,heat-resistant steel, stainless steel, aluminium, light alloy,
non-ferrous metal, brass, copper, zinc, diecast and plastic

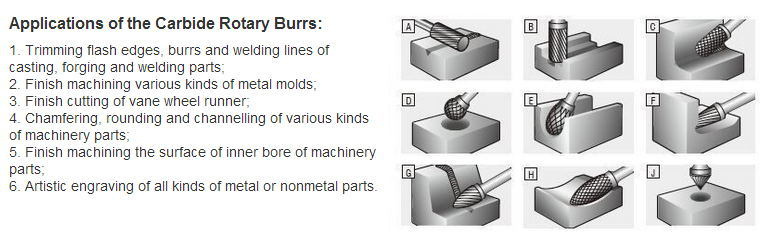

3. Application
(1) Machining various kinds of metals, including hardened steel HRC65
(2) Increasing production efficiency dozens of times than hand tools, and 3 ~ 5 times than small emery wheels
(3) Long working life, which is 10 times than HHS burrs, and 50 times than small emery wheels
(4) Finish machining various kinds of die cavities, removing burrs of casting, forging and welding spatter
(5 )Chamfering angle, circular bead and flute on mechanical compenents
(6) Chamfering and burring pipes
(7) Polishing impeller channel
(8) Grinding holes to accurate shape
4,Standard size | | Sizes |
| Model No. | Blade diameter | Blade Length | Stem diameter | General length |
| A0313M03 | 3 | 13 | 3 | 50 |
| A0413M04 | 4 | 13 | 4 | 50 |
| A0616M06 | 6 | 16 | 6 | 56 |
| A0820M06 | 8 | 20 | 6 | 60 |
| A1020M06 | 10 | 20 | 6 | 60 |
| A1225M06 | 12 | 25 | 6 | 65 |
| A1425M06 | 14 | 25 | 6 | 65 |
| A1625M06 | 16 | 25 | 6 | 65 |
| A0804M06 | 8 | 4 | 6 | 54 |
| A1005M06 | 10 | 5 | 6 | 50 |
| A1205M06 | 12 | 5 | 6 | 50 |
| A1606M06 | 16 | 6 | 6 | 50 |
| C0313M03 | 3 | 13 | 3 | 50 |
| C0413M04 | 4 | 13 | 4 | 50 |
| C0616M06 | 6 | 16 | 6 | 46 |
| C0820M06 | 8 | 20 | 6 | 60 |
| C1020M06 | 10 | 20 | 6 | 60 |
| C1225M06 | 12 | 25 | 6 | 65 |
| C1425M06 | 14 | 25 | 6 | 65 |
| C1625M06 | 16 | 25 | 6 | 65 |
| D0303M03 | 3 | 2.7 | 3 | 50 |
| D0403M04 | 4 | 3.6 | 4 | 50 |
| D0605M06 | 6 | 5.4 | 6 | 55 |
| D0807M06 | 8 | 7.2 | 6 | 57 |
| D1009M06 | 10 | 9 | 6 | 54 |
| D1210M06 | 12 | 10.8 | 6 | 55 |
| D1412M06 | 14 | 12 | 6 | 52 |
| D1614M06 | 16 | 14.4 | 6 | 54 |
| E0610M06 | 6 | 10 | 6 | 60 |
| E0813M06 | 8 | 13 | 6 | 58 |
| E1016M06 | 10 | 16 | 6 | 61 |
| E1220M06 | 12 | 20 | 6 | 60 |
| E1422M06 | 14 | 22 | 6 | 62 |
| E1625M06 | 16 | 25 | 6 | 65 |
| F0313M03 | 3 | 13 | 3 | 50 |
| F0618M06 | 6 | 18 | 6 | 58 |
| F0818M06 | 8 | 18 | 6 | 58 |
| F1020M06 | 10 | 20 | 6 | 60 |
| F1225M06 | 12 | 25 | 6 | 65 |
| F1425M06 | 14 | 25 | 6 | 65 |
| F1625M06 | 16 | 25 | 6 | 65 |
| G0313M03 | 3 | 13 | 3 | 50 |
| G0618M06 | 6 | 18 | 6 | 58 |
| G0817M06 | 8 | 17 | 6 | 57 |
| G1020M06 | 10 | 20 | 6 | 60 |
| G1225M06 | 12 | 25 | 6 | 65 |
| G1425M06 | 14 | 25 | 6 | 65 |
| G1625M06 | 16 | 25 | 6 | 65 |
| H0307M03 | 3 | 7 | 3 | 50 |
| H0618M06 | 6 | 18 | 6 | 58 |
| H0820M06 | 8 | 20 | 6 | 60 |
5.Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days6. Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group
