Cat 320d2 L Hydraulic Hammer for Excavator Breaker with Excavator Hammer with Excavator
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
JSB series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Yellow Black Optional |
| Delivery: |
3days After Place an Order |
| Impact Rate: |
120-1200bpm |
| Weight: |
80- 6100ton |
| Other: |
OEM Avilible |
| Suitable Excavator: |
1.2-100 Ton |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
Hydraulic Rock Breaker, Rock breaker, Excavator hammer, Side type breaker, Top type breaker, Box type breaker for excavator
JSB series breakers are compatible with various brand of excavators including: DOOSAN,KOMATSU,CAT,SNAY ,HYUNDAI R ,CAT PALLET ,VOLVO ,KOBELCO ,KATO ,KUBOTA ,JCB,CASE ,GEHL ,Liebherr etc.
Our hydraulic breaker (hydraulic hammer) are applicable to a wide rang of weight class of excavators which from1.2 to100 ton
Features:
a. Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption,leading heat treatment,lower noise,long lifespan etc)
b. Suitable with a wide range of excavator.
c. versatile application including rock broken,paving road,building demolition etc.
d.Top type breaker is applied to special operation that in large elevation angle.
e. Box type breaker namely silent breaker, which is sued in special project that noise is limited.
f one-stop service.
g easy use and easy maintenance.
We have BOX type breaker TOP type breaker SIDE type breaker

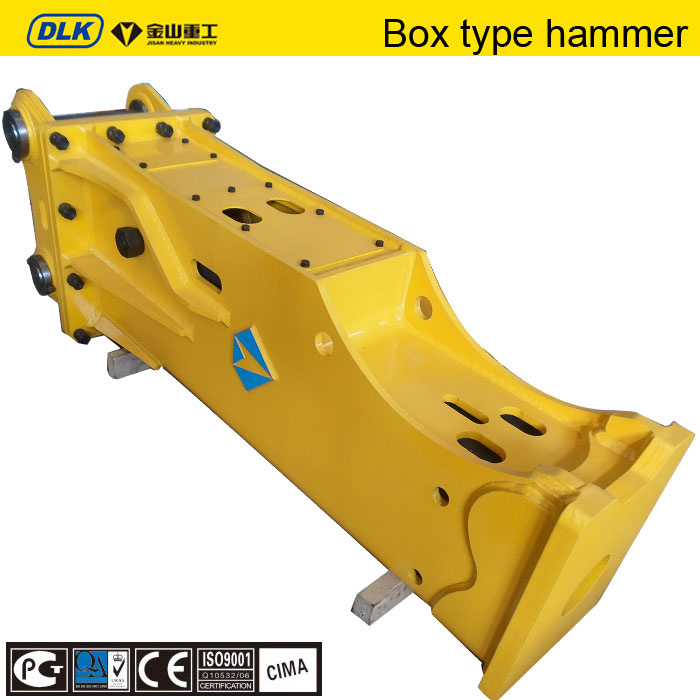

The box type (silent type)

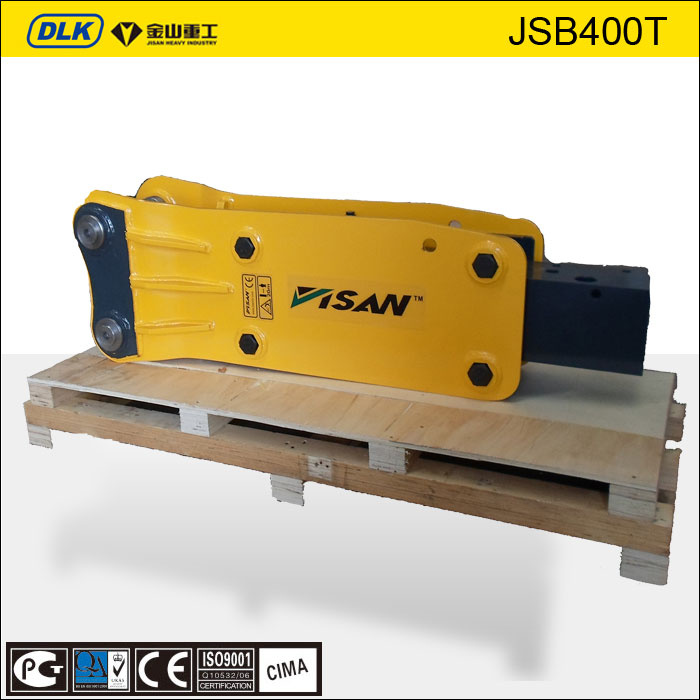

The top type
Please contact me freely for further information. The specification show you as follows for your reference.
|
THE SPECIFICATIONS OF SIDE TYPE BREAKER |
|
Item\Model |
Unit |
JSB100S |
JSB200S |
JSB400S |
JSB400S |
JSB600S |
JSB800S |
JSB900S |
|
Suitable Excavator |
ton |
0.8-2.0 |
1.2-3.0 |
2.0-40 |
3.0-5.5 |
4.0-7.0 |
7.0-14.0 |
11.0-16.0 |
|
Chisel Diameter |
mm |
40 |
45 |
53 |
68/70 |
75 |
85 |
100 |
|
Total Weight |
kg |
70 |
80 |
165 |
254 |
264 |
486 |
853 |
|
Overall Length |
mm |
920 |
1100 |
1190 |
1347 |
1528 |
1920 |
2260 |
|
Operating Pressure |
kg/cm 2 |
90-120 |
90-120 |
90-120 |
110-140 |
110-160 |
120-170 |
150-170 |
|
Required Oil Flow |
L/min |
15-25 |
15-25 |
25-50 |
25-45 |
30-45 |
45-85 |
80-120 |
|
Impact rate |
bpm |
800-1400 |
700-1200 |
600-1100 |
500-900 |
500-800 |
400-700 |
400-700 |
|
Hose Diameter |
inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
|
THE SPECIFICATIONS OF SIDE TYPE BREAKER |
|
Item\Model |
Unit |
JSB1200S |
JSB1600S |
JSB1900S |
JSB2800S |

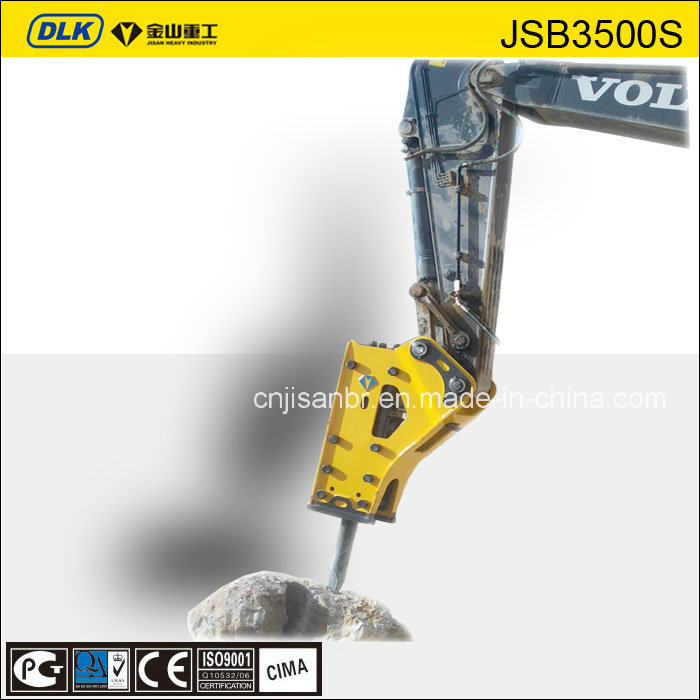

JSB3500S |
JSB4500S |
JSB5000S |
|
Suitable Excavator |
ton |
15-18 |
19-26 |
19-26 |
27-38 |
28-40 |
36-45 |
40-55 |
|
Chisel Diameter |
mm |
120 |
1350 |
140 |
150 |
155 |
165 |
175 |
|
Total Weight |
kg |
1300 |
1679 |
1898 |
2455 |
2650 |
3753 |
3910 |
|
Overall Length |
mm |
2530 |
2695 |
2810 |
2895 |
3152 |
3310 |
3400 |
|
Operating Pressure |
kg/cm 2 |
150-170 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
|
Required Oil Flow |
L/min |
90-120 |
120-160 |
130-170 |
150-190 |
170-220 |
200-300 |
210-290 |
|
Impact rate |
bpm |
400-700 |
400-700 |
400-600 |
350-500 |
250-400 |
250-350 |
200-350 |
|
Hose Diameter |
inch |
1 |
1 |
1 |
1 |
1 . 25 |
1 . 25 |
1 . 25 |
Jisan Heavy Industry Ltd. Is a modernized manufacture enterprise specializing in independent R & D, manufacturing of all the excavators matching equipments. The company is equipped with Plasma Cutting Machine, Edge Milling Machine, Welding Machine, CNC Machine, Sand and Spraying Equipment, Flaw Detector those processing and testing equipment, to lay a solid foundation for ensuring the advancing production capacity.
The company mainly produces all kinds of excavator front-end equipments: Quick Coupler, Ripper, Hydraulic Compactor, Hydraulic Breaker, Hydraulic Wood Grapple, Stone Grapple and Hydraulic Shears. The company has JISAN and DLK two series brand, which can suit all domestic and foreign excavators, Komatsu, Hitachi, CAT, Kobelco, Doosan, Sany, Liugong, XCMG, etc. Meanwhile tailor special devices under different working conditions according to customer's operating environment.
The company has independent import and export rights. Products are sold all over the world. The company provides supporting and processing services for the domestic and foreign many excavator manufacturers to maximize meet customers' requirements.
The company has high-quality technical team, perfect quality control system and service network; Quality is the life of enterprise. Grasp the quality source, in terms of production, strictly control of the homemade quality and production process. The company implemented 6S management, and continually improve the quality awareness of staff, combined with the assessment mechanism to supervise and inspect, and carry out quality one-vote veto to ensure product durability, reliability, fundamentally set up the concepts of Quality First.
In the future, JISAN Company will make full use of rich experience accumulated and the core competitive advantage formed in the past few years. Through the implementation of Elaboration- Diversity-Globalization the three strategic goals, promote enterprise development; Make a professional excavator front-end equipment manufacturers to stride forward the world first-class enterprise.
